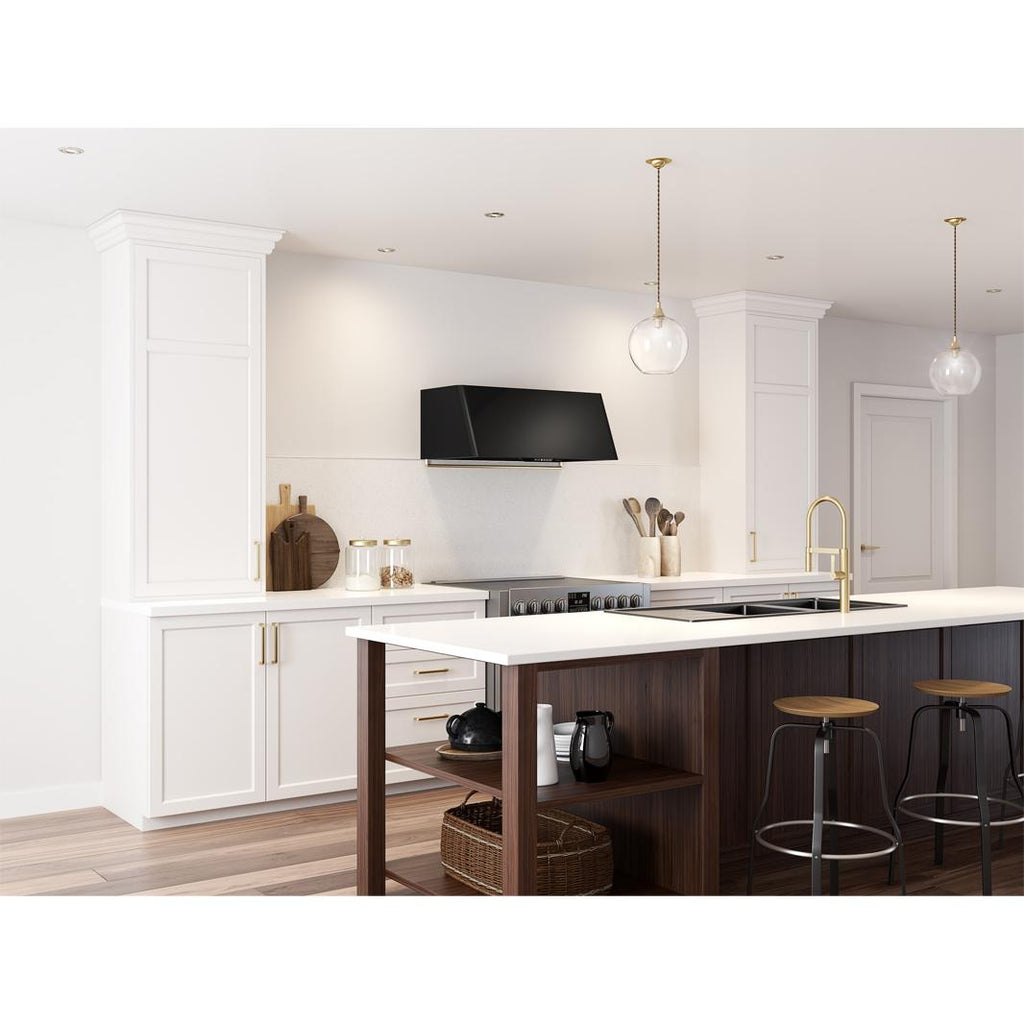

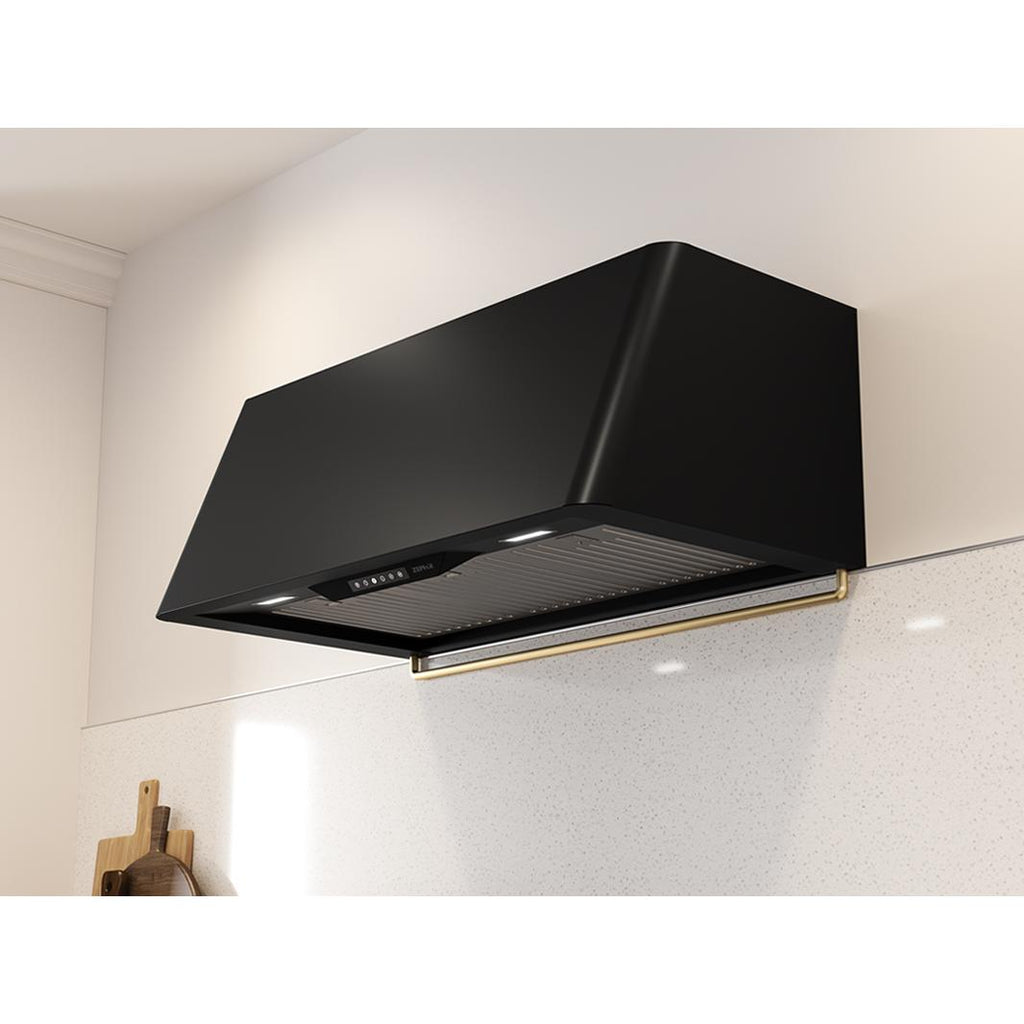

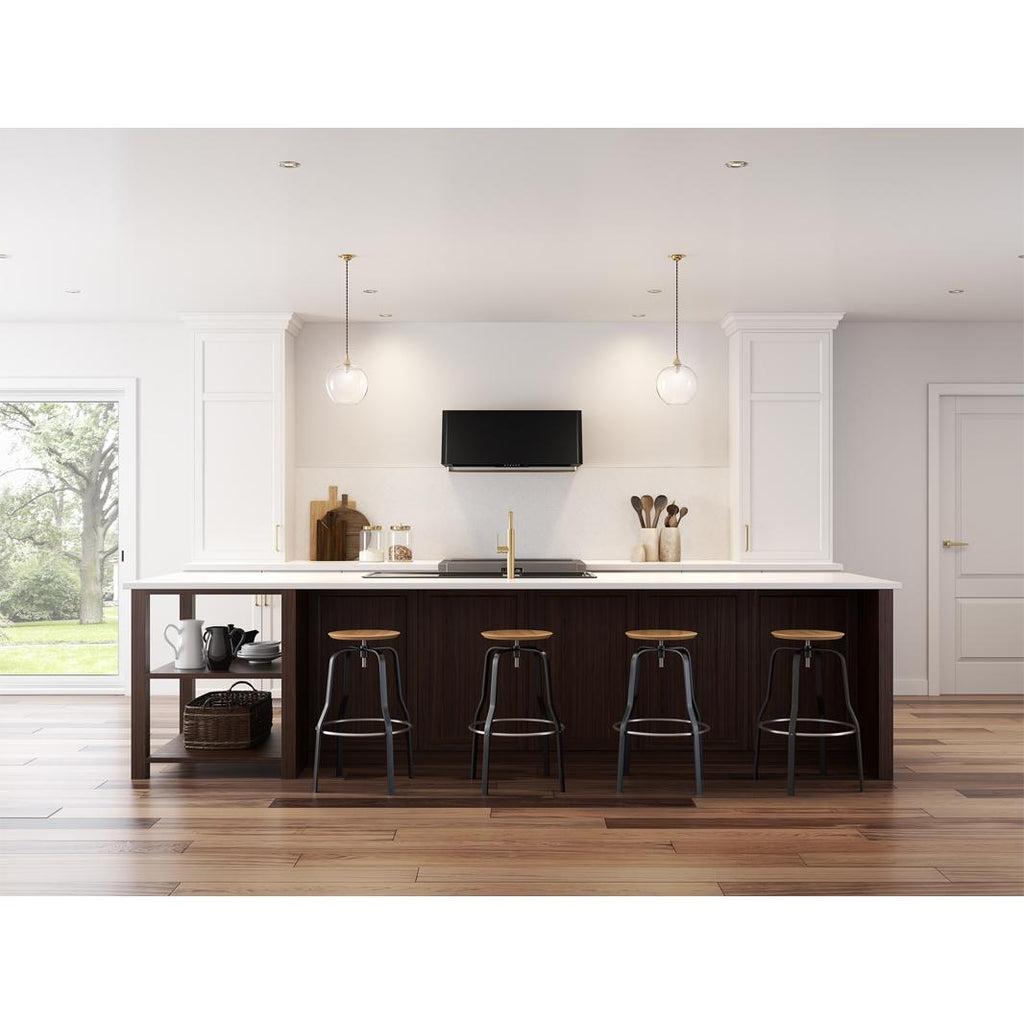

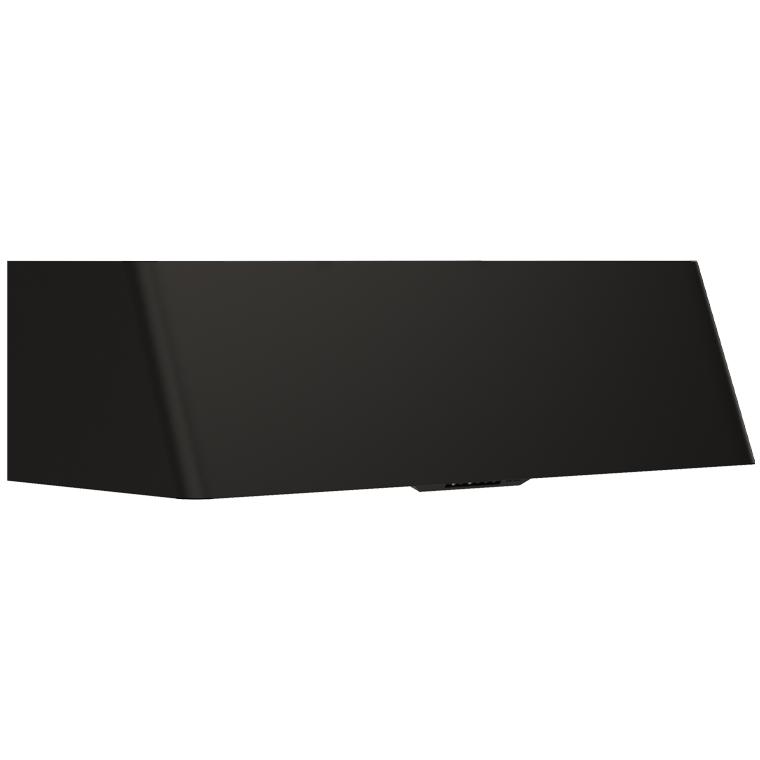

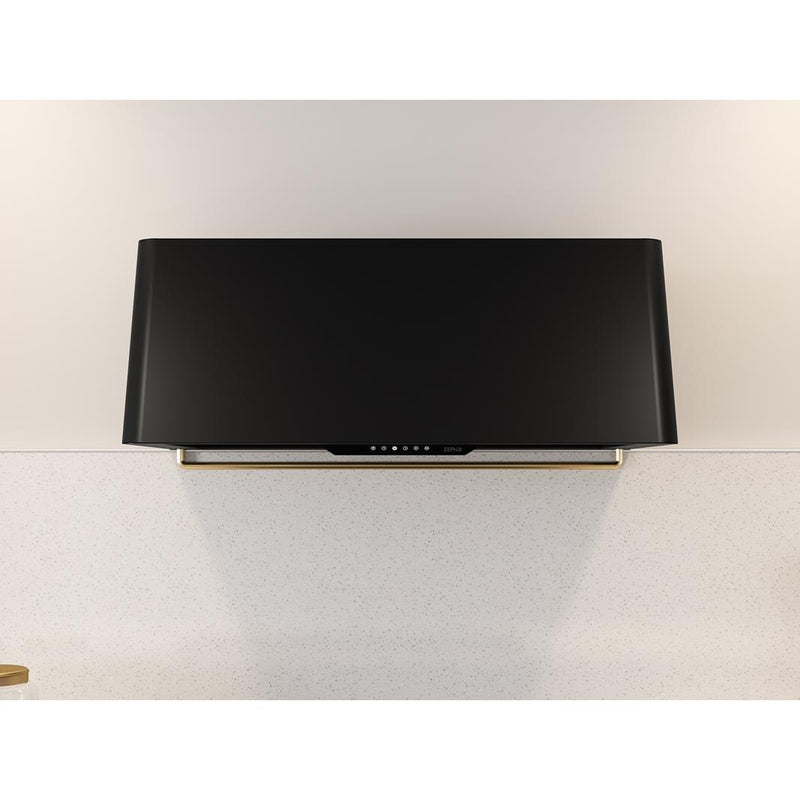

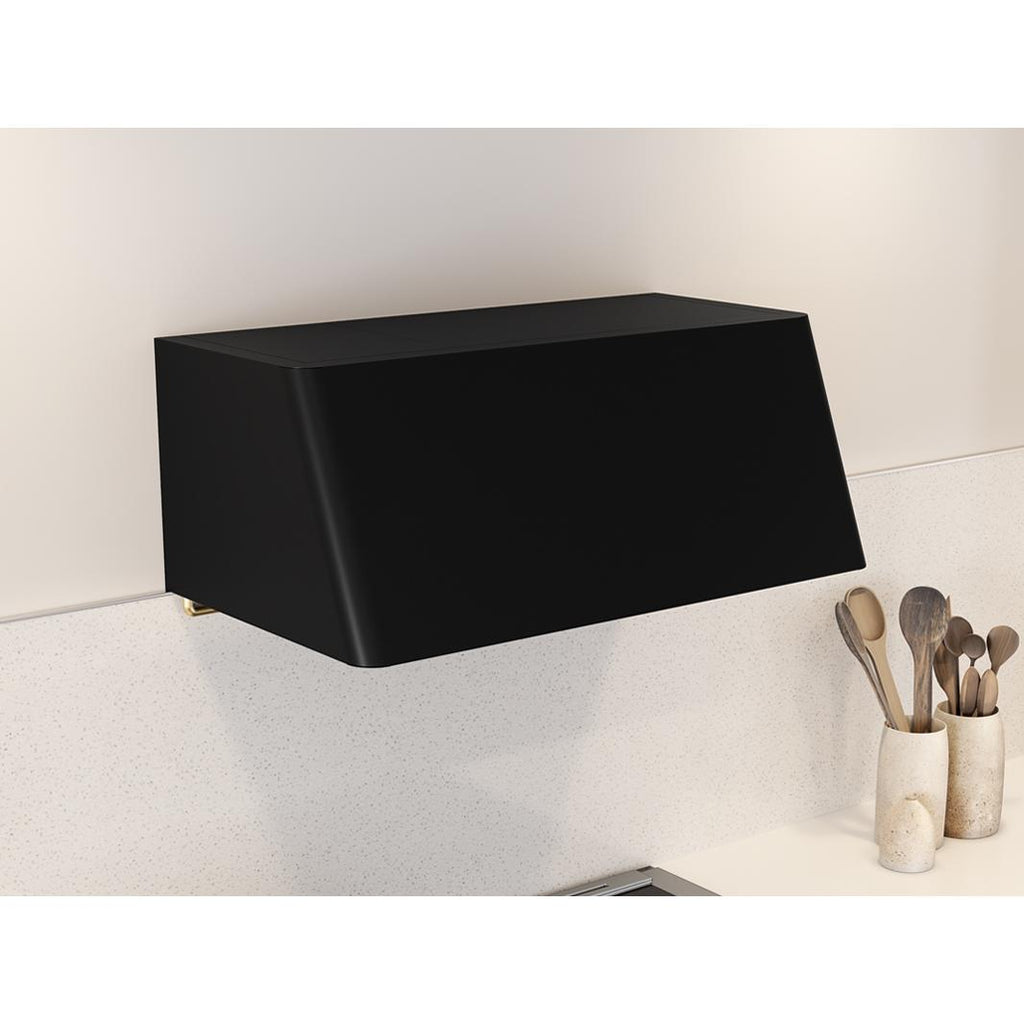

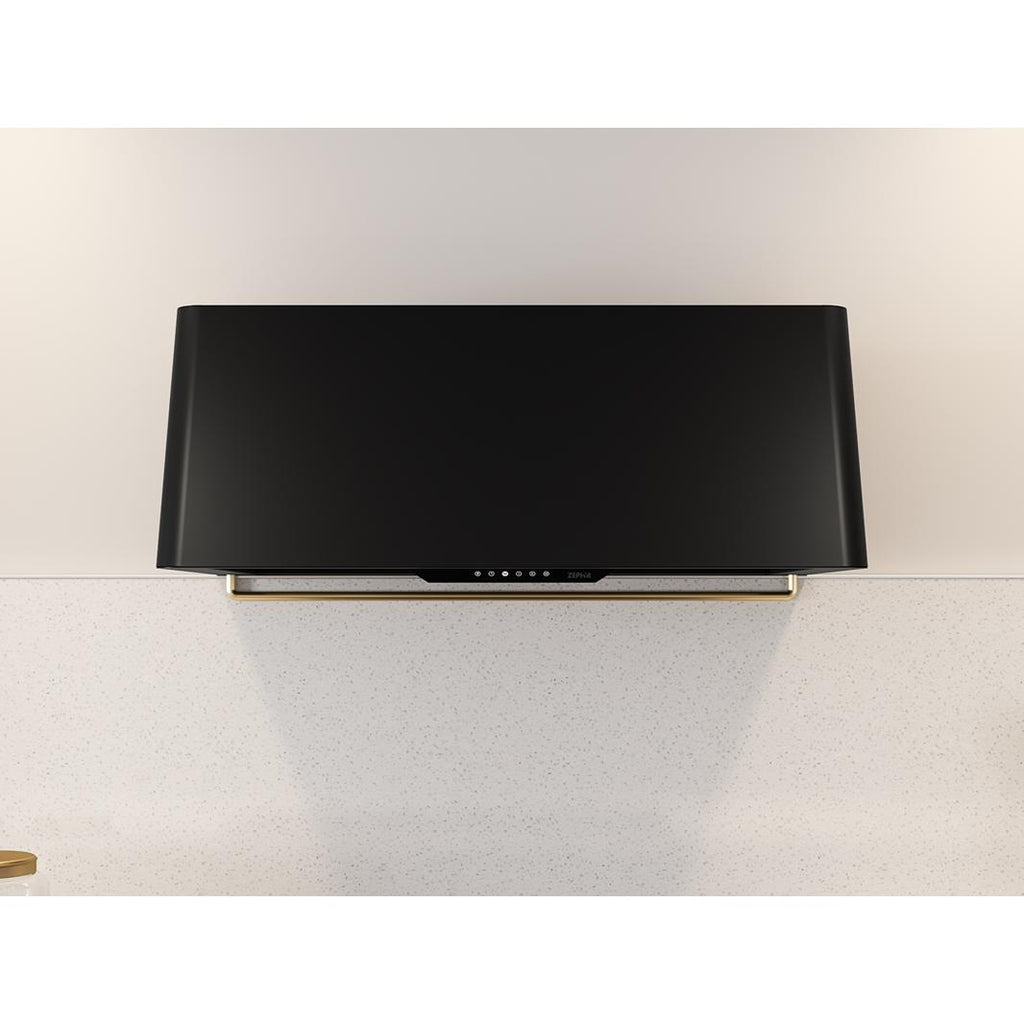

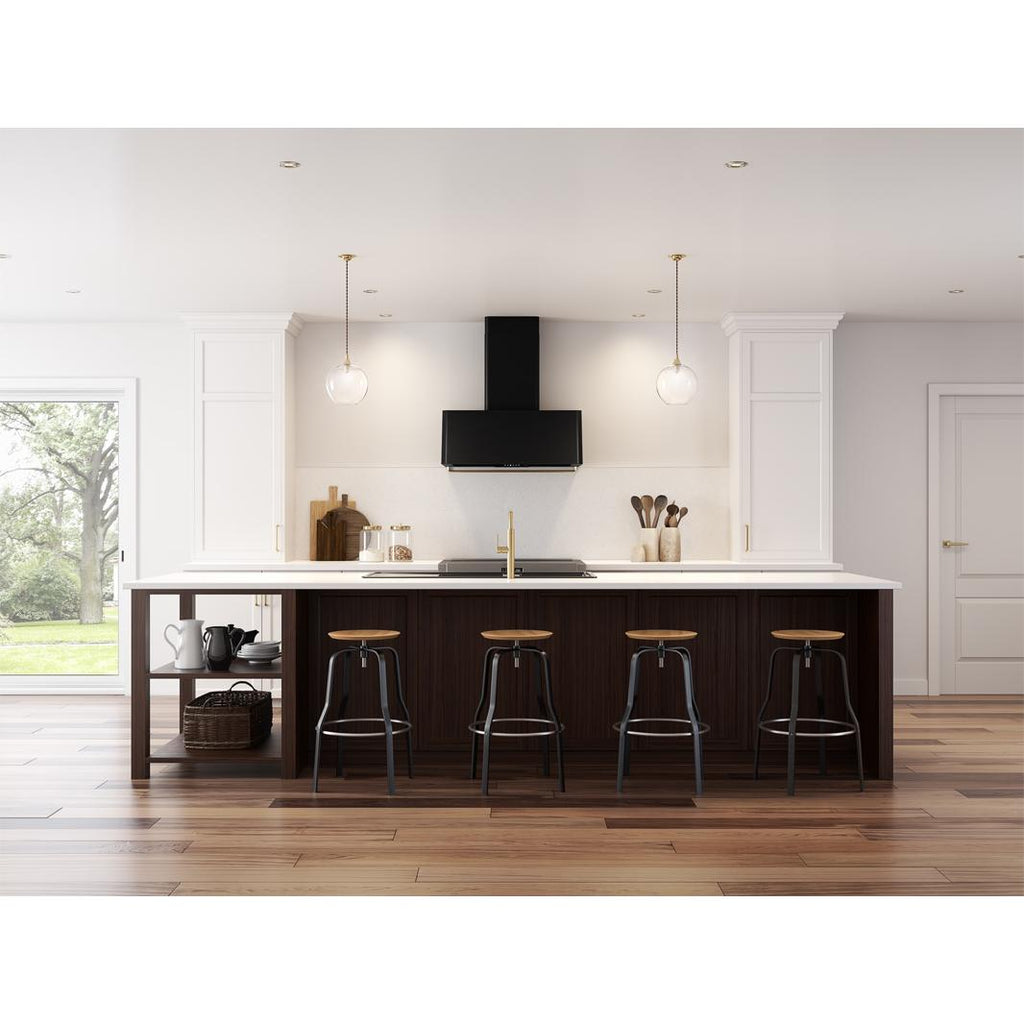

Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 1
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 2
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 3
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 4
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 5
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 6
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 7
Roll over image to zoom in Click on image to zoom
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 1
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 2
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 3
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 4
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 5
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 6
Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX IMAGE 7

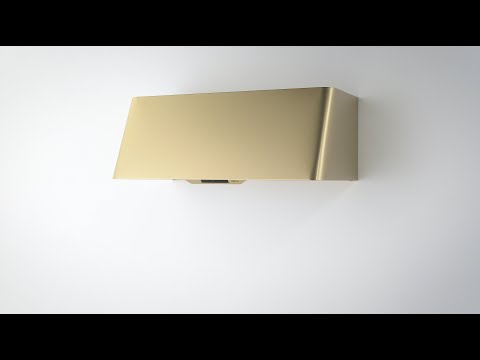

Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX EXTERNAL_VIDEO 1

Zephyr 48-inch Mesa Wall Range Hoods DME-E48AMBX

ZephyrSKU: DMEE48AMBX
Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black,... Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black, and stainless steel, for the very latest in kitchen design trends. With Invisible Touch Controls, hybrid baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Additional options include an accent rail in satin gold or stainless steel; remote control; and duct cover in satin gold, matte black, or stainless steel. View more
Price:
$4,029.00
Color: Black
Black
Gold
Specifications Documents
Specifications
General
Series Name
Mesa Wall
Blower Included
No
Style
Standard
Color
Black
Manufacturer Color
Matte Black
Installation
Wall Mount
Features
Technologies
CleanAir Function
Ducting Information
• Vertical Single Internal Blower: 6" Round
• Vertical Dual Internal Blower: 8" Round
• Vertical In-Line/External Blower: 10" or 8" Round
• Horizontal Single Internal Blower: 6" Round
• Horizontal In-Line/External Blower: 10" or 8" Round
Speeds
Speed Levels: 3
Additional Information
• Controls: Invisible Touch
• Lighting: LED, 5W x4
• Tri-Level Lighting
• Auto Delay-Off
• Filters: Hybrid Baffle x4
• Multiple Blower Options
• Multiple Color Options
Electrical Information
Information
• Hood with CBI-290C: 120V, 60Hz, Max. 1A
• Hood with CBI-600A: 120V, 60Hz, Max. 3A
• Hood with PBI-1100B-DME: 120V, 60Hz, Max. 5.75A
• Hood with PBN-1000A: 120V, 60Hz, Max. 5.4A
• Hood with CBE-1000: 120V, 60Hz, Max. 6.6A
Certifications and Approvals
Information
• cULus
• ADA Compliant: Yes, with remote option
Accessories
Optional
• Single Internal Blower (CBI-290C): 200-290 CFM, 1.4-3 sones
• Single Internal Blower (CBI-600A): 240-600 CFM, 1.8-6 sones
• Dual Internal Blower (PBI-1100B-DME): 500-1,000 CFM, 3.5-8 sones
• In-Line Blower (PBN-1000A): 500-1,000 CFM
• External Blower (CBE-1000): 500-1,000 CFM
• Recirculating Kit: ZRC-01ME
• Remote Control: 14000010
• Duct Cover - Matte Black: Z1C-00MEMB
• Duct Cover - Satin Gold: Z1C-00MESG
• Duct Cover - Stainless Steel: Z1C-00MESS
• Accent Rail - Satin Gold: MERAIL-00SG
• Accent Rail - Stainless Steel: MERAIL-00SS
• Make-Up Air Kit: MUA006A (600 CFM), MUA008A (1,000 CFM)
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
19.69 inch(es) / 50.01 cm
Additional Dimensions
Mounting Height Range: 24" - 36"
Warranty
Warranty
• 1-Year warranty on labor
• 2-Year warranty on parts
UPC
UPC#
646328011931
