Features

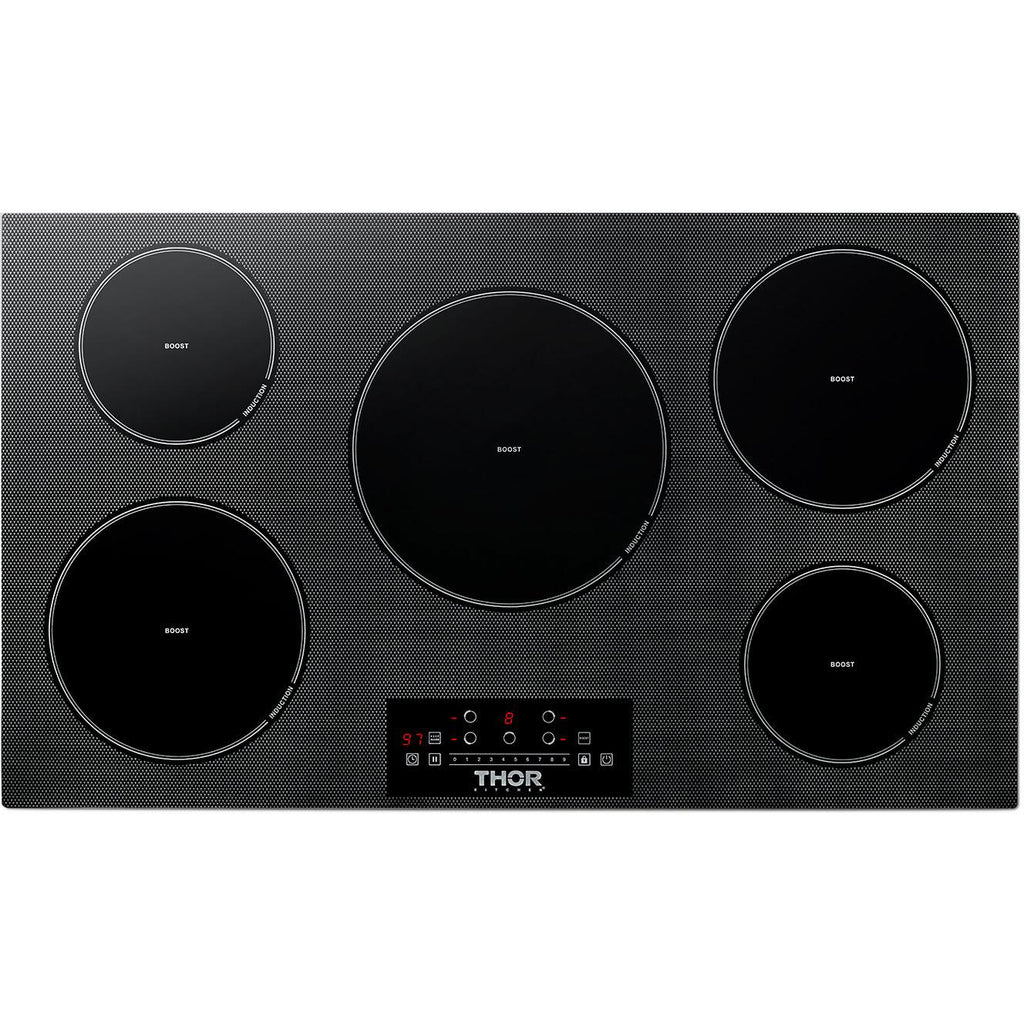

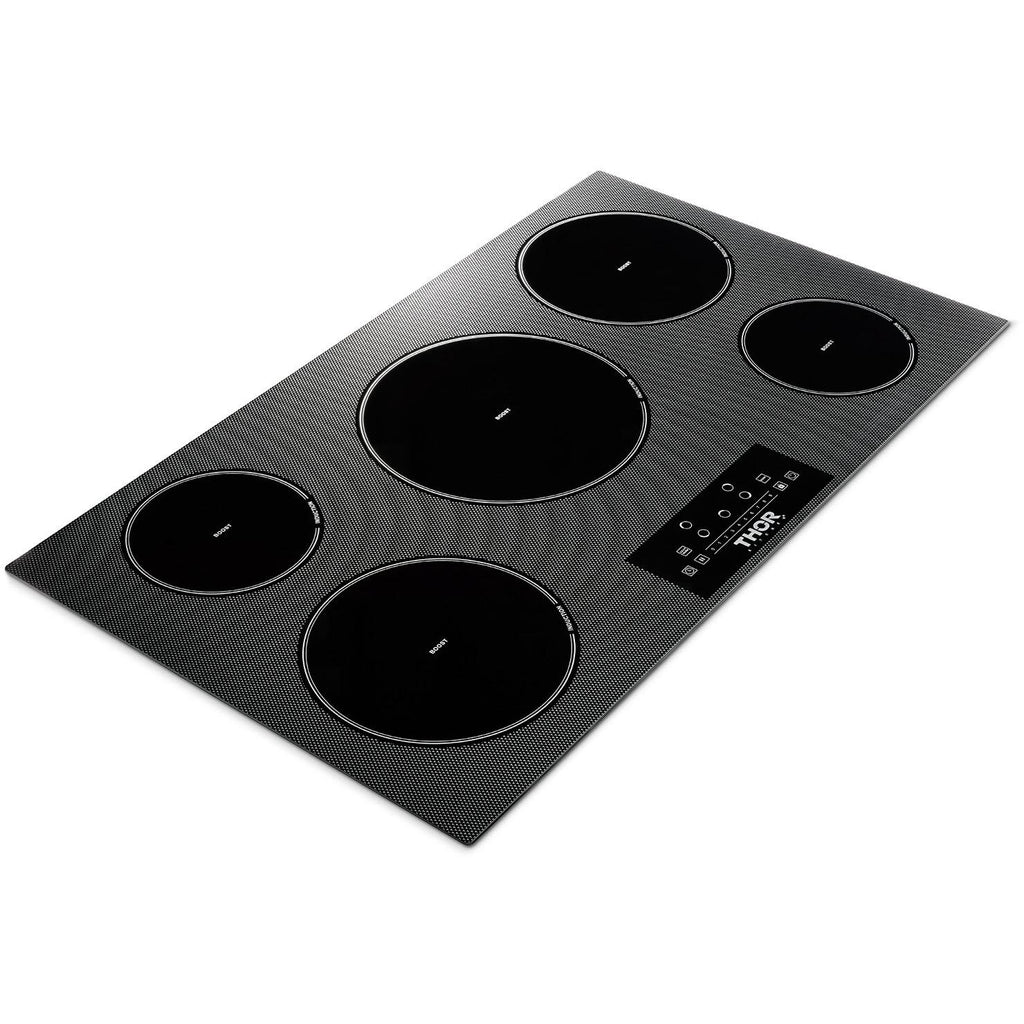

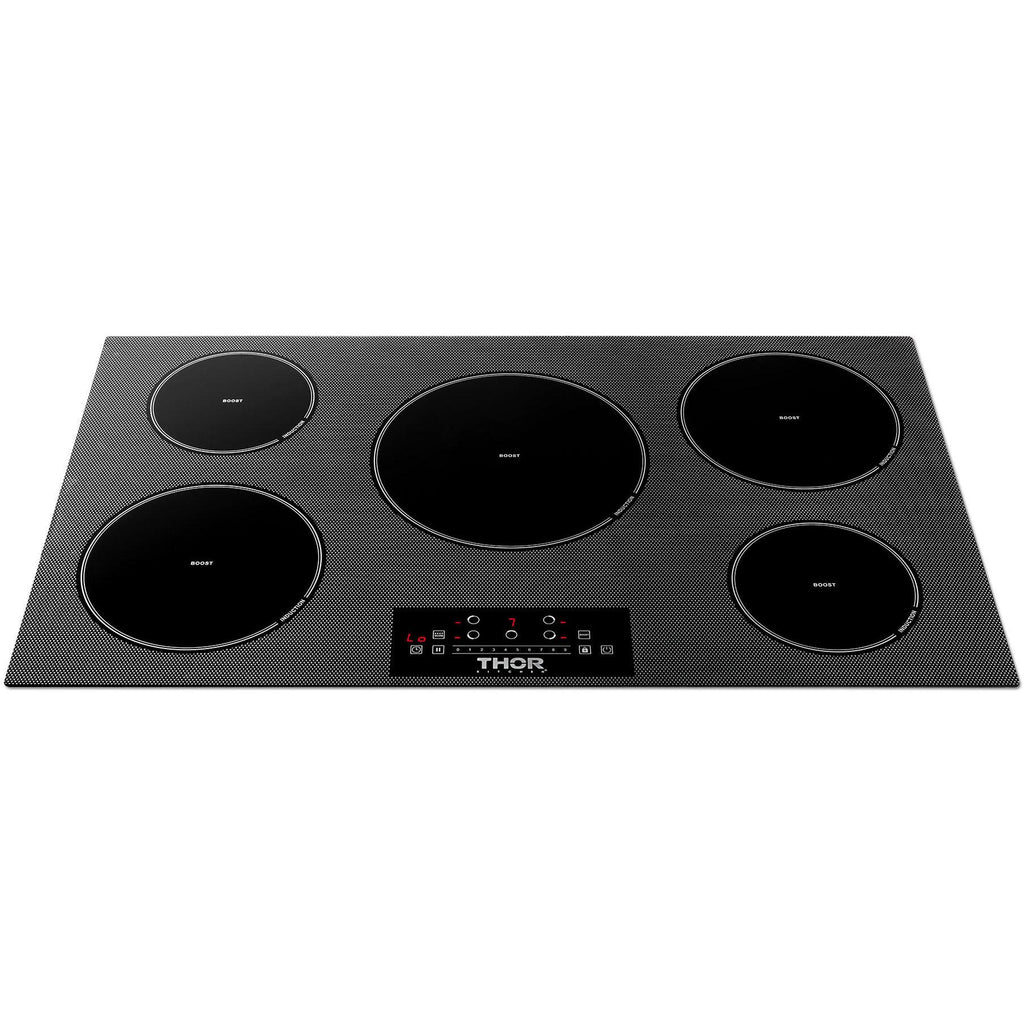

TIH36 - 5 ELEMENTS
The cooktop's total output power is 9,300W. Comes with one 11-inch cooking zone with 3,700W power boost mode, two 9-inch cooking zone with 2,100W boost mode and two 7-inch cooking zone with 1,500W boost mode to cover your cooking needs.
9 POWER LEVELS
So you can simmer a sauce or crank up the heat for a caramelized sear—now that's control.
POWER BOOST
The cooktop elements offer a power boost adjustment so you get to your desired temperature fast.

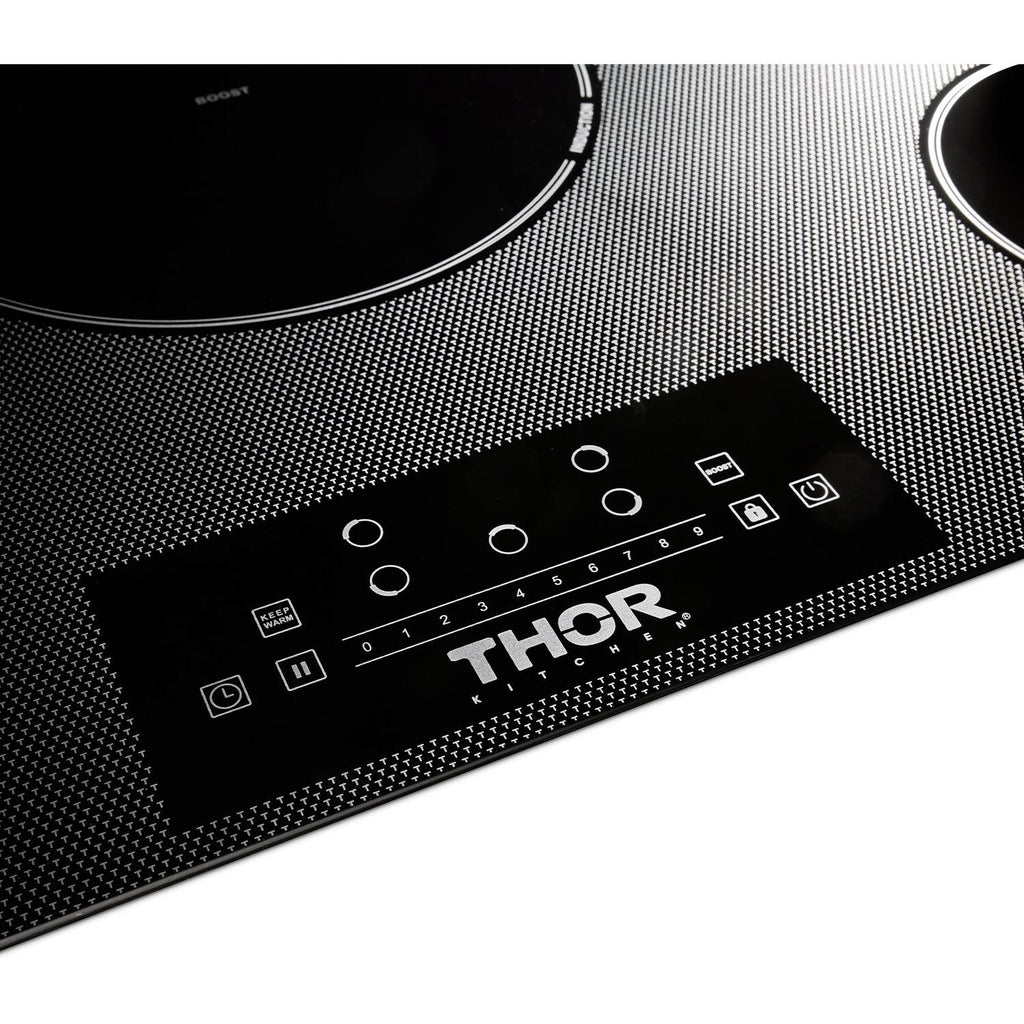

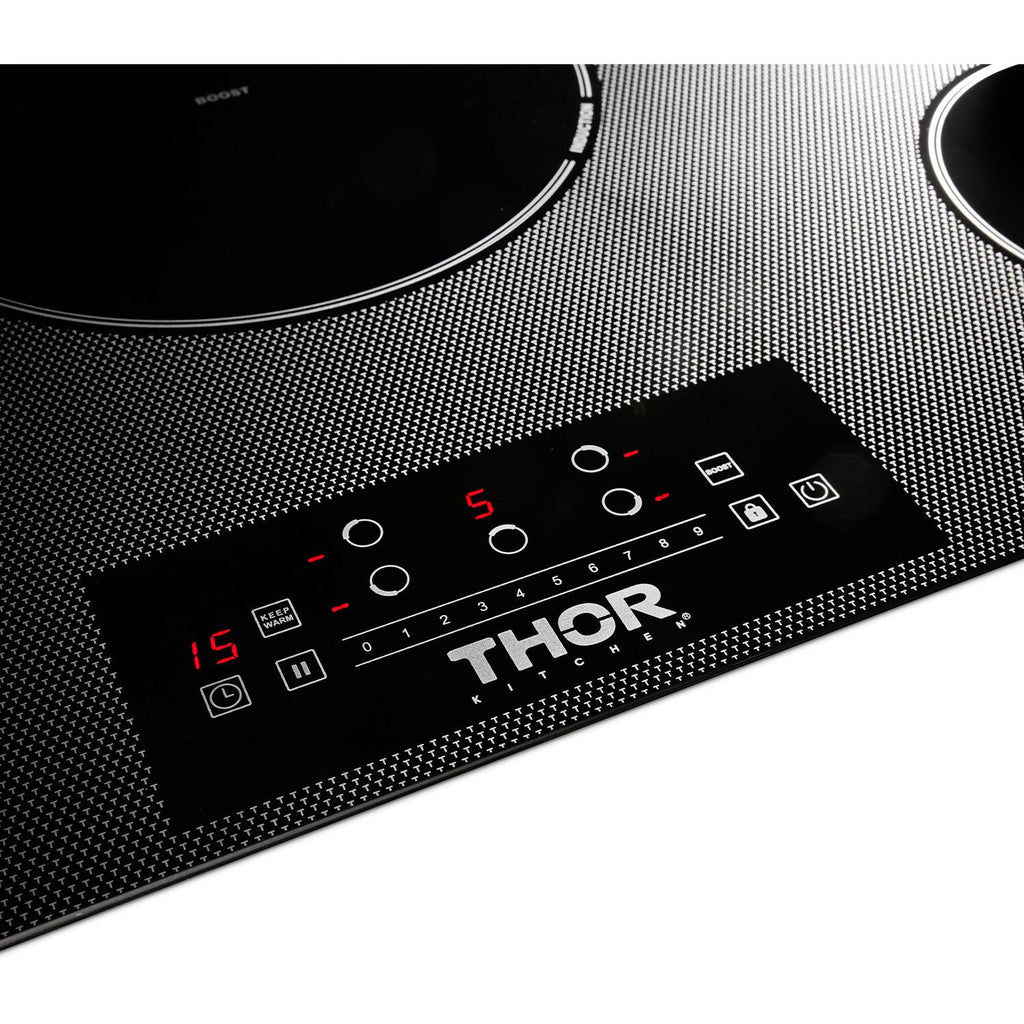

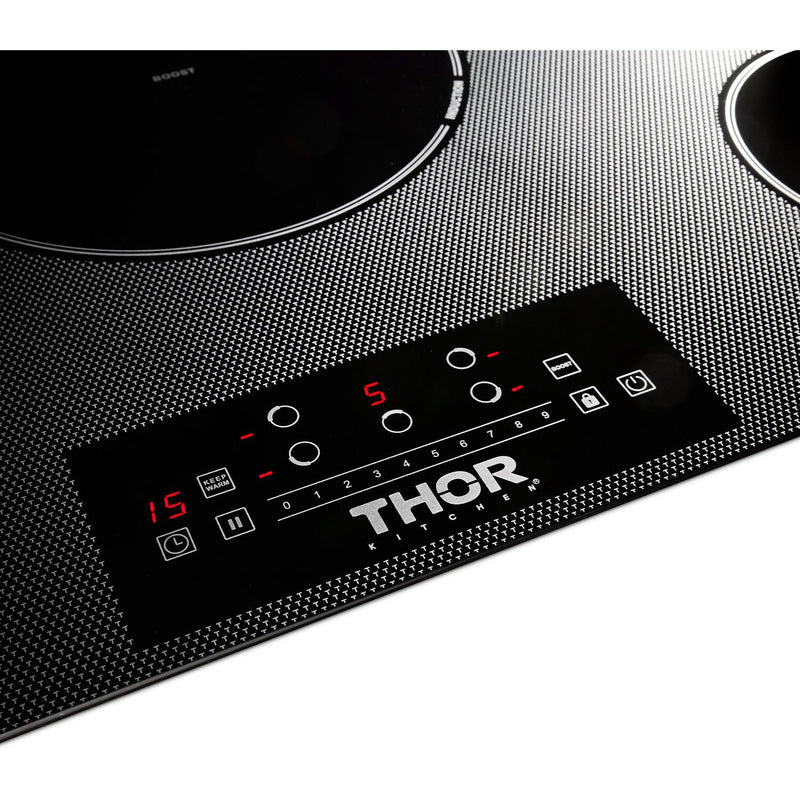

RESIDUAL HEAT INDICATORS AND LOCK
This cooktop also features a Residual Heat Indicator and Child Lock so that you and your kiddos don't burn your hands.
AUTOMATIC SAFETY SHUT-OFF
The unit will auto turn-off without a cooking pot present after 2-8 hours of nonoperation-safety first. depending on power level. See the graph below for power levels and time.
TIH36 - RESIDUAL HEAT INDICATORS AND LOCK
This cooktop also features a Residual Heat Indicator and Child Lock so that you and your kiddos don't burn your hands.
Specifications
General
Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Rear zone: 1200/1500W
• Left Front zone: 1800/2100W
• Right Rear zone: 1800/2100W
• Right Front zone: 1200/1500W
• Central zone: 2300/3700W
• Left Front zone: 1800/2100W
• Right Rear zone: 1800/2100W
• Right Front zone: 1200/1500W
• Central zone: 2300/3700W
Burner/Element Size
• Left Rear zone: 7"
• Left Front zone: 9"
• Right Rear zone: 9"
• Right Front zone: 7"
• Central zone: 11"
• Left Front zone: 9"
• Right Rear zone: 9"
• Right Front zone: 7"
• Central zone: 11"
Elements
Smoothtop
Features
Technologies
Induction Technology
Control Lock
Yes
Digital Display
Yes
Additional Information
• 99 min timer / Child lock / 5 Booster / Keep Warm / Pause Function
• 9-level power setting
• Individual residual heat indicator
• 2 - 8 hours automatic safety switch off
• Slide touch
• 9-level power setting
• Individual residual heat indicator
• 2 - 8 hours automatic safety switch off
• Slide touch
Electrical Information
Information
• 240V
• 60Hz
• 30 A
• 60Hz
• 30 A
Certifications and Approvals
Information
ETL, RoHS, FCC
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
2.25 inch(es) / 5.72 cm
Depth
21 inch(es) / 53.34 cm
Weight
28.66 lb(s) / 13 kg
Additional Dimensions
Cut out Size (inch) (W*D): 33 7/8" - 9 5/16"
Shipping Dimensions
Width
40.37 inch(es) / 102.55 cm
Height
6.87 inch(es) / 17.46 cm
Depth
27 inch(es) / 68.58 cm
Weight
36.38 lb(s) / 16.5 kg
Warranty
Warranty
2 Years Parts and Labor
