Applicable Rebate
THERMADOR "ONE-TWO-FREE GIFT WITH PURCHASE PROGRAM"
Purchase an eligible Thermador cooking package or qualifying refrigeration unit(s) and select your complimentary Emerald dishwasher. Purchase a complete qualifying kitchen and choose from a selection of free bonus gifts. Plus, you can complete your dream kitchen with a built-in coffee machine for only $4000. - Offers valid on purchases made between July 1, 2024 and December 31, 2024.
See all qualifying products
Features

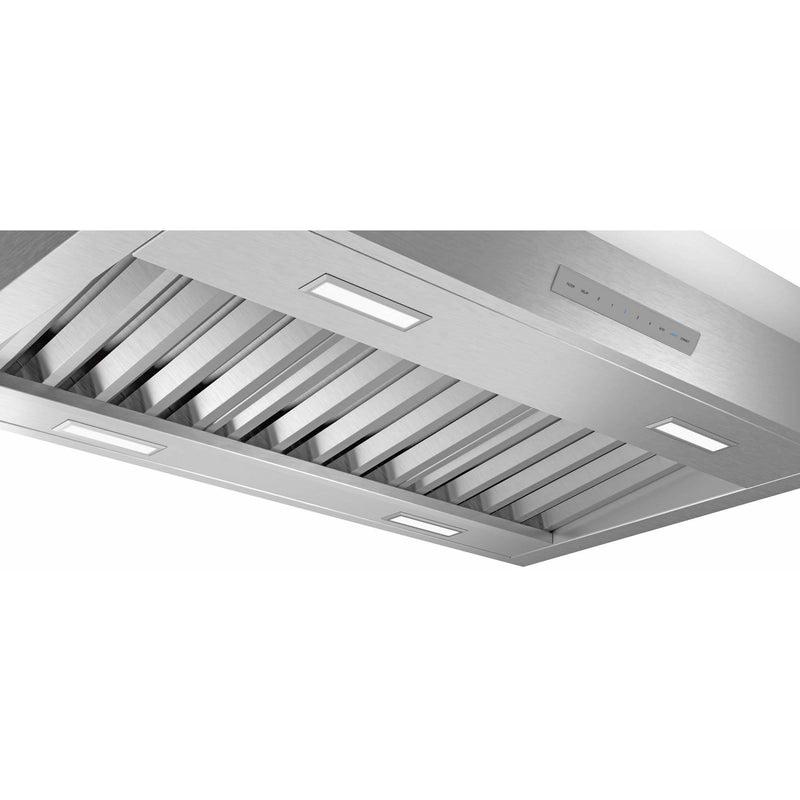

BAFFLE FILTERS
Stainless steel commercial-style baffle filters maximize grease capture and they're dishwasher safe for easy clean-up.(VCIN and VCIB Series)
Additional Features
AUTO FUNCTION
Auto function senses heat from the cooking surface and adjusts fan speed.
DELAYED SHUT OFF
Delayed shut-off tackles lingering odors for up to 10 minutes
POWERFULLY QUIET® OPERATION
Steam, smoke and odors are no problem for Thermador ducted ventilation systems.
LED LIGHTING
Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.
Specifications
General
Series Name
Professional®
Blower Included
No
Style
Island
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Island
Features
Wi-Fi
Yes
Dishwasher-Proof Filters
Yes
Technologies
• Thermador Connected Experience by Home Connect™
• Powerfully Quiet® system
• Powerfully Quiet® system
Ducting Information
Diameter of air duct: Top 10"
Speeds
4-Stage settings
Additional Information
• Multi-level LED lights with fading transitions
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filter
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filter
Electrical Information
Information
• Volts: 120 V
• Frequency: 60 HZ
• Plug type: Fixed connection
• Power cord: Direct wire at junction box
• Frequency: 60 HZ
• Plug type: Fixed connection
• Power cord: Direct wire at junction box
Accessories
Included
Damper
Optional
• Remote blowers: VTR630W (600 CFM), VTR1030W (1000 CFM), VTR1330W (1300 CFM)
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10
Dimensions
Class Width
42"
Width
41.94 inch(es) / 106.52 cm
Height
5.25 inch(es) / 13.34 cm
Depth
26.69 inch(es) / 67.79 cm
Weight
125.99 lb(s) / 57.15 kg
Additional Dimensions
• Height of the chimney: 24 3/4" – 36 3/4"
• Required distance above cooktop or range cooking surface: 30" min. / 40" max.
• Minimum ceiling height required: 8'
• Required distance above cooktop or range cooking surface: 30" min. / 40" max.
• Minimum ceiling height required: 8'
Warranty
Warranty
2-Year limited warranty on parts and labor
UPC
UPC#
825225933489
