Features

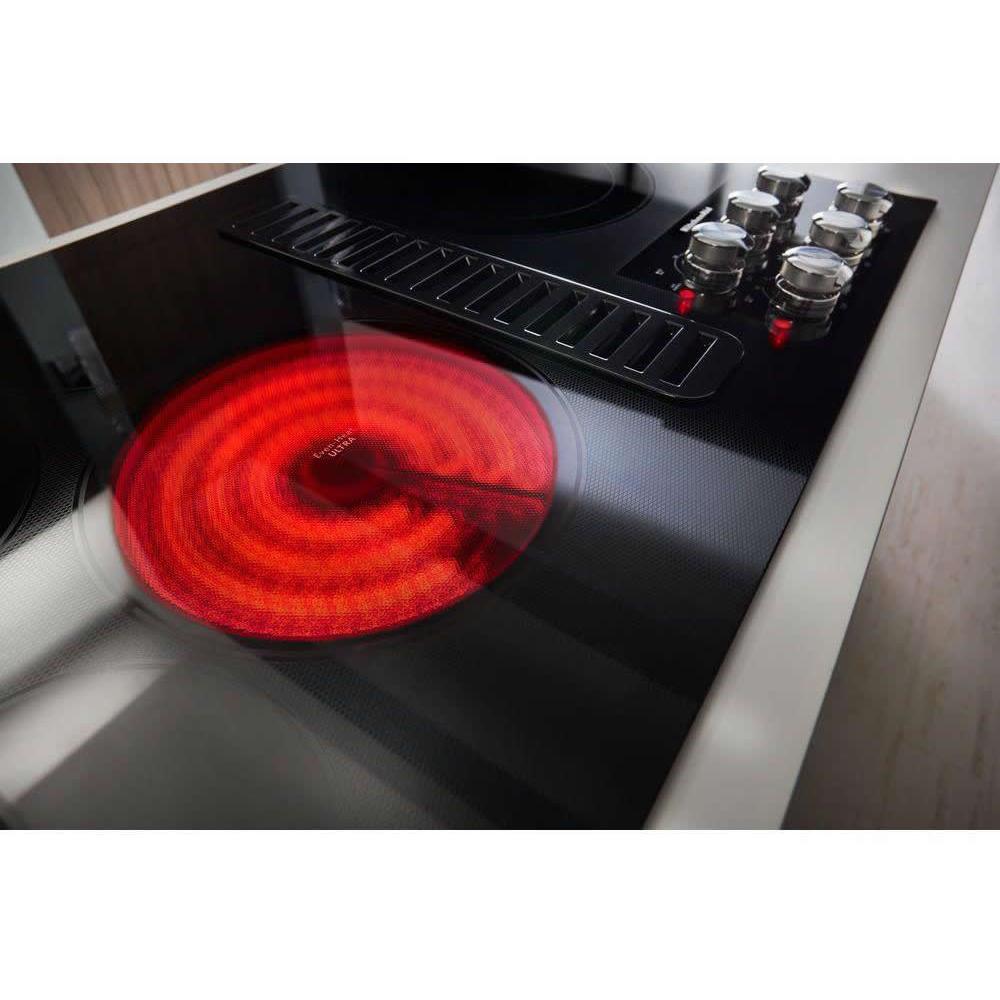

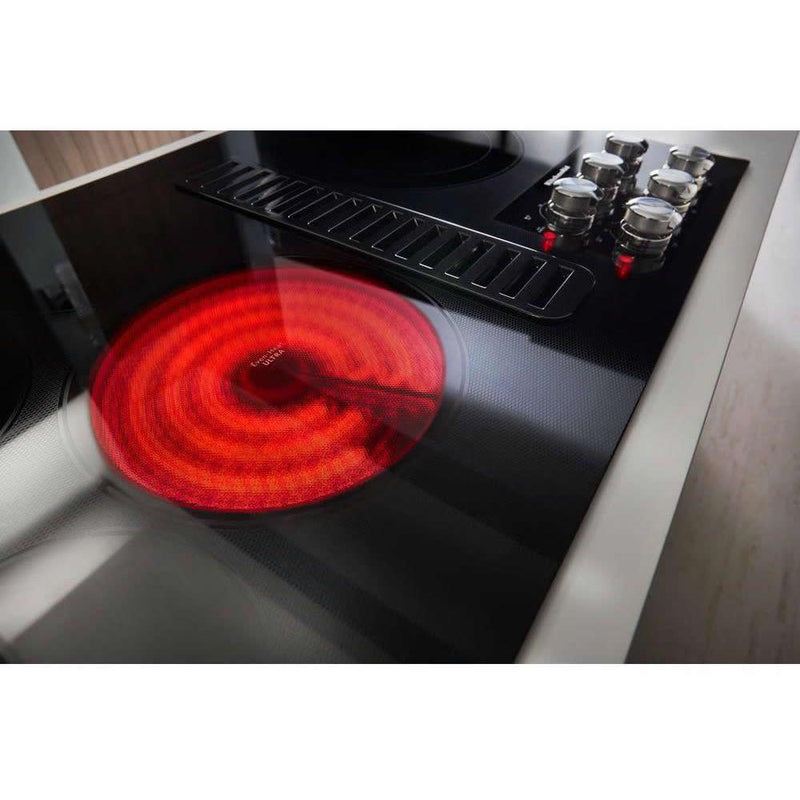

EVEN-HEAT™ ULTRA ELEMENT WITH SIMMER SETTING
Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.
6" EVEN-HEAT™ ELEMENT WITH MELT SETTING
Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
3-SPEED FAN CONTROL
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
COOKSHIELD FINISH
Helps protect your cooktop from spills and stains that may occur with high-temperature cooking. The permanent finish makes it easy to wipe the cooktop clean without harsh chemicals so it looks clean and bright longer.
HOT-SURFACE INDICATOR
Provides a clear indication that lets you know if any cooking surface is on or still hot.
Additional Features
DOWNDRAFT VENTILATION
Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
CONVERTIBLE TO DUCT-FREE VENTILATION
CONVERTIBLE TO DUCT-FREE VENTILATION
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
9"/6" ULTRA POWER™ DOUBLE-RING ROUND ELEMENT
Two element sizes in one provide the ability to use it for large stock pots or six-inch sauté pans and handle tasks ranging from rapid boiling and searing to wok cooking.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Element: 3,200 W
• Left Rear Element: 1,300 W
• Right Front Element: 1,200 W
• Right Rear Element: 3,000 W/1,400 W
• Left Rear Element: 1,300 W
• Right Front Element: 1,200 W
• Right Rear Element: 3,000 W/1,400 W
Burner/Element Size
• Left Front Element: 10"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 9"/6"
• Left Rear Element: 6"
• Right Front Element: 6"
• Right Rear Element: 9"/6"
Elements
Smoothtop
Surface Features
• CookShield Finish for Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
• Stainless Steel Knobs
• Pure Color Ceramic-Glass Surface
Features
Technologies
• 10" Even-Heat™ Ultra Element
• 6" Even-Heat™ Element
• 9"/6" Ultra Power™ Double-Ring Round Element
• 6" Even-Heat™ Element
• 9"/6" Ultra Power™ Double-Ring Round Element
Downdraft Ventilation
Yes
Additional Information
• 300 CFM Exhaust Rating
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
• 3-Speed Fan Control
• Convertible to Duct-Free Ventilation
• Power-On Indicator Light
• Hot-Surface Indicator
Electrical Information
Information
• 120 V /240 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
30"
Width
30.87 inch(es) / 78.42 cm
Height
3.63 inch(es) / 9.21 cm
Depth
22.06 inch(es) / 56.04 cm
Weight
50 lb(s) / 22.68 kg
Additional Dimensions
• Cutout Depth: 21 1/8"
• Cutout Width: 28 3/4"
• Cutout Width: 28 3/4"
Shipping Dimensions
Width
35.13 inch(es) / 89.22 cm
Height
23.81 inch(es) / 60.48 cm
Depth
26.44 inch(es) / 67.15 cm
Weight
61.99 lb(s) / 28.12 kg
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
883049415925
