Specifications
General
Series Name
• Distinto
• Sofia
• Series: 600
• Sofia
• Series: 600
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In

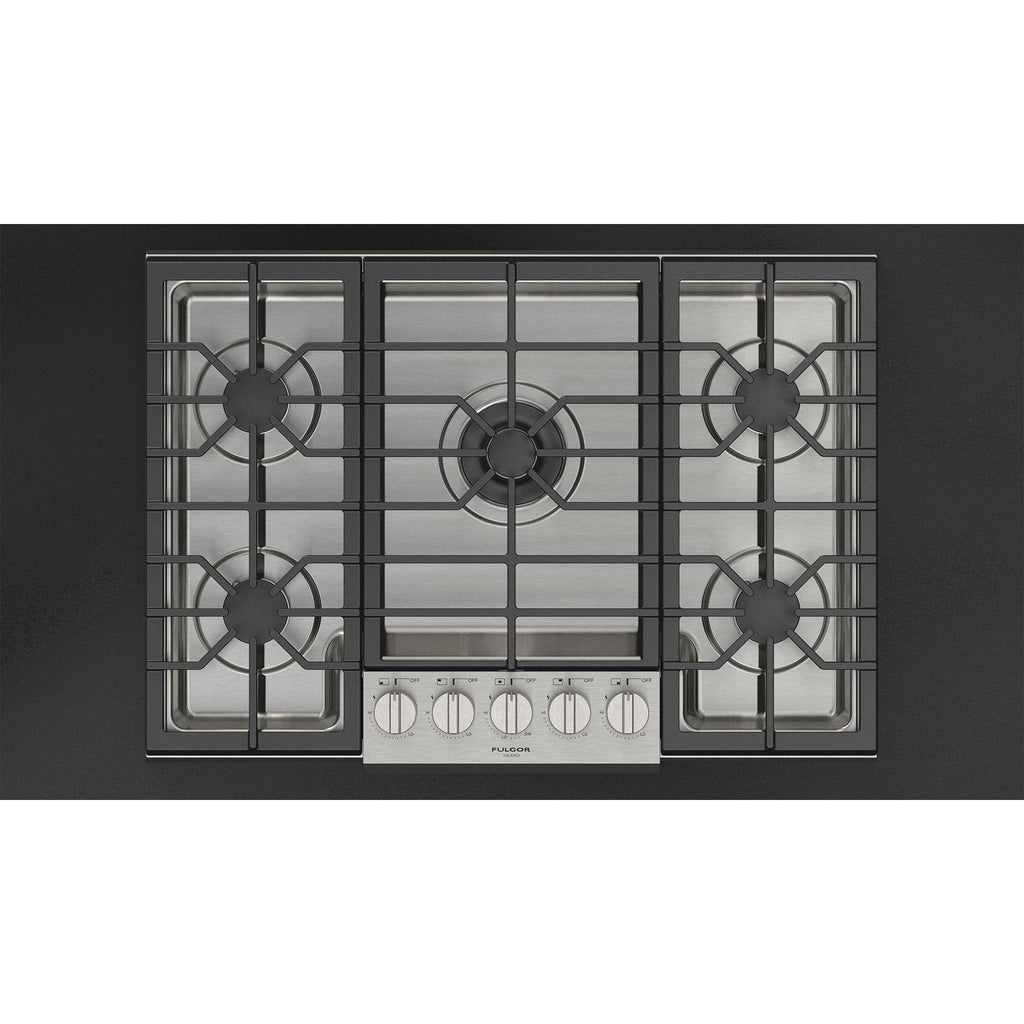

Cooktop
Burners/Elements
5
Power Output
• Power (Max/Min) (Front-L): 6300 (BTU/h) - 1848W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Rear-L): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Center): Dual Flame / Simmer Burner: 20000 (BTU/h) - 5880W / 750 (BTU/h) - 220W
• Power (Max/Min) (Rear-R): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Front-R): 6300 (BTU/h) - 1848W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Rear-L): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Center): Dual Flame / Simmer Burner: 20000 (BTU/h) - 5880W / 750 (BTU/h) - 220W
• Power (Max/Min) (Rear-R): 8000 (BTU/h) - 2345W / 1300 (BTU/h) - 382W
• Power (Max/Min) (Front-R): 6300 (BTU/h) - 1848W / 1300 (BTU/h) - 382W
Burners
Sealed
Features
Additional Information
• 3 Heavy-duty continuous cast iron grates
• Heavy Gauge 304 Stainless Steel Burner Bowl
• Dual 1 Central Dual Crescendo Burner
• Dual 4 Single Burners

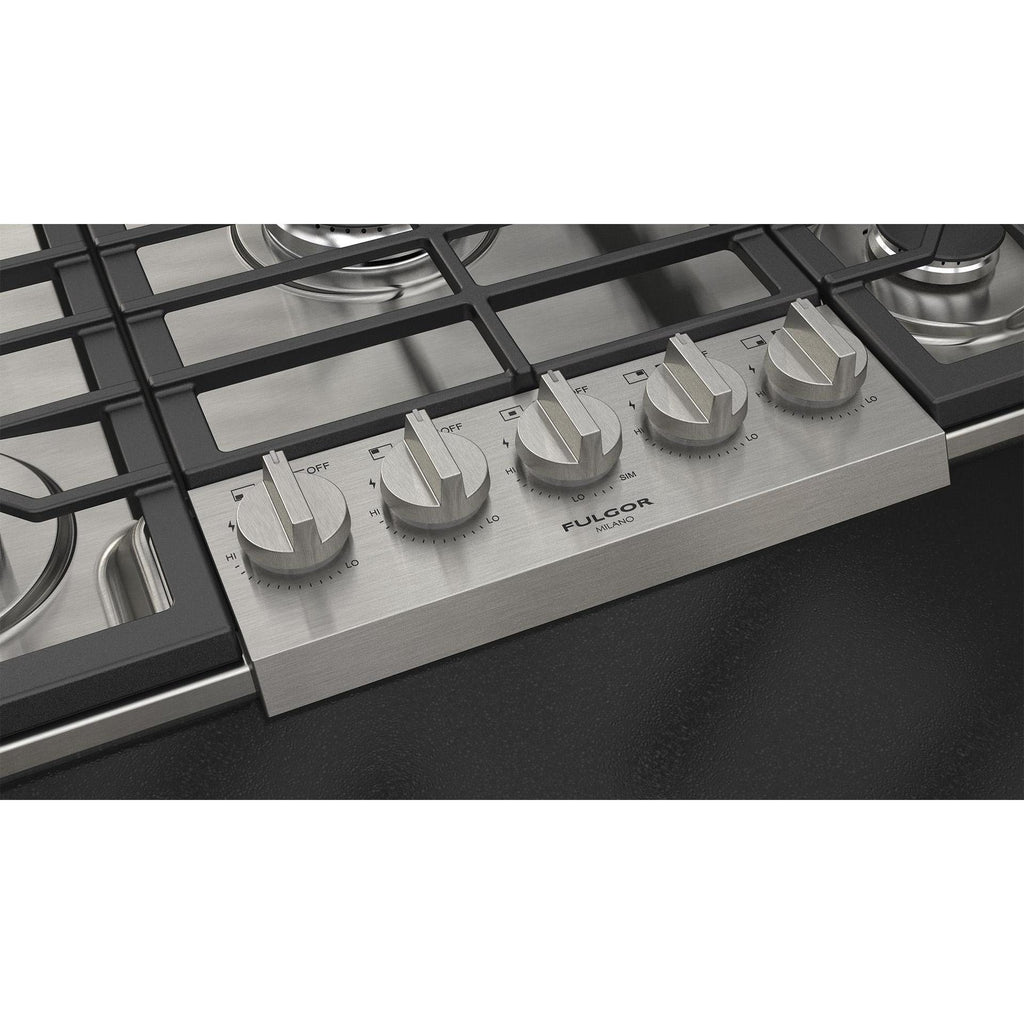

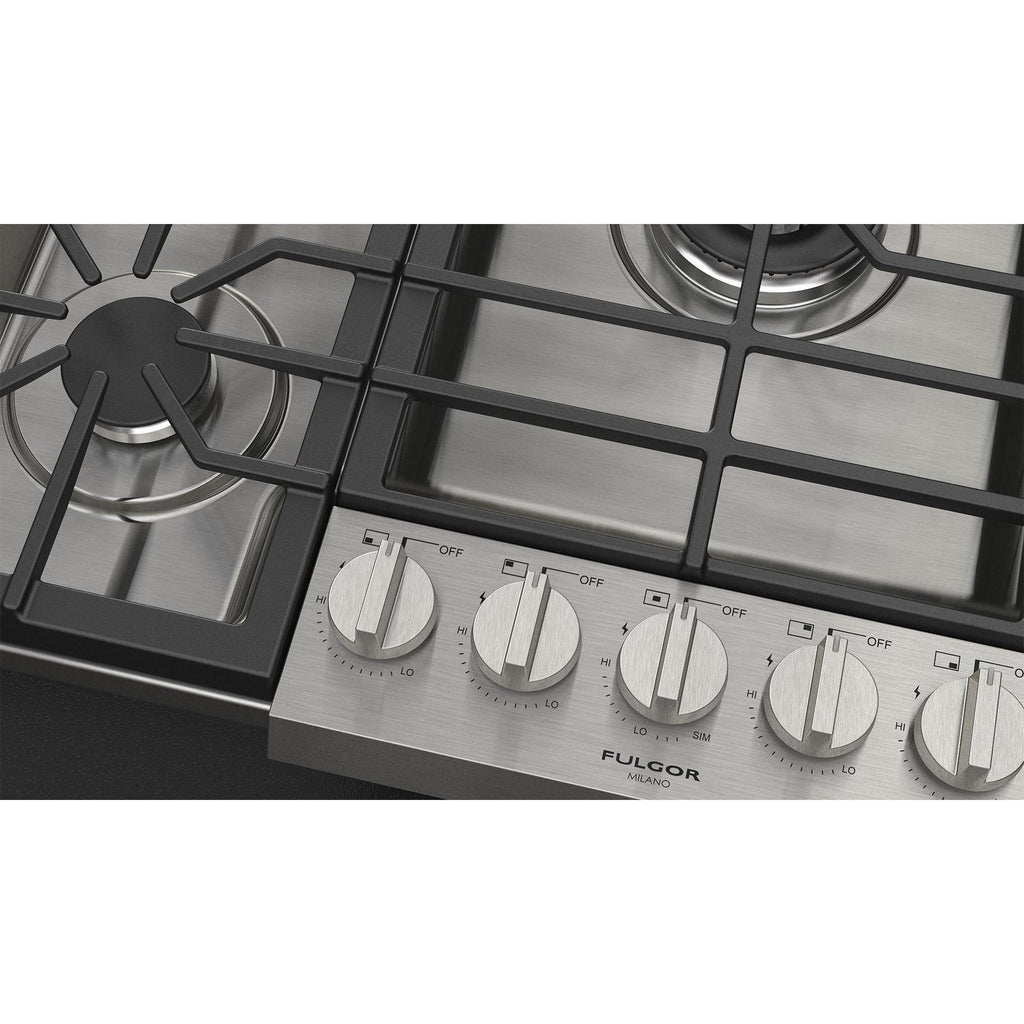

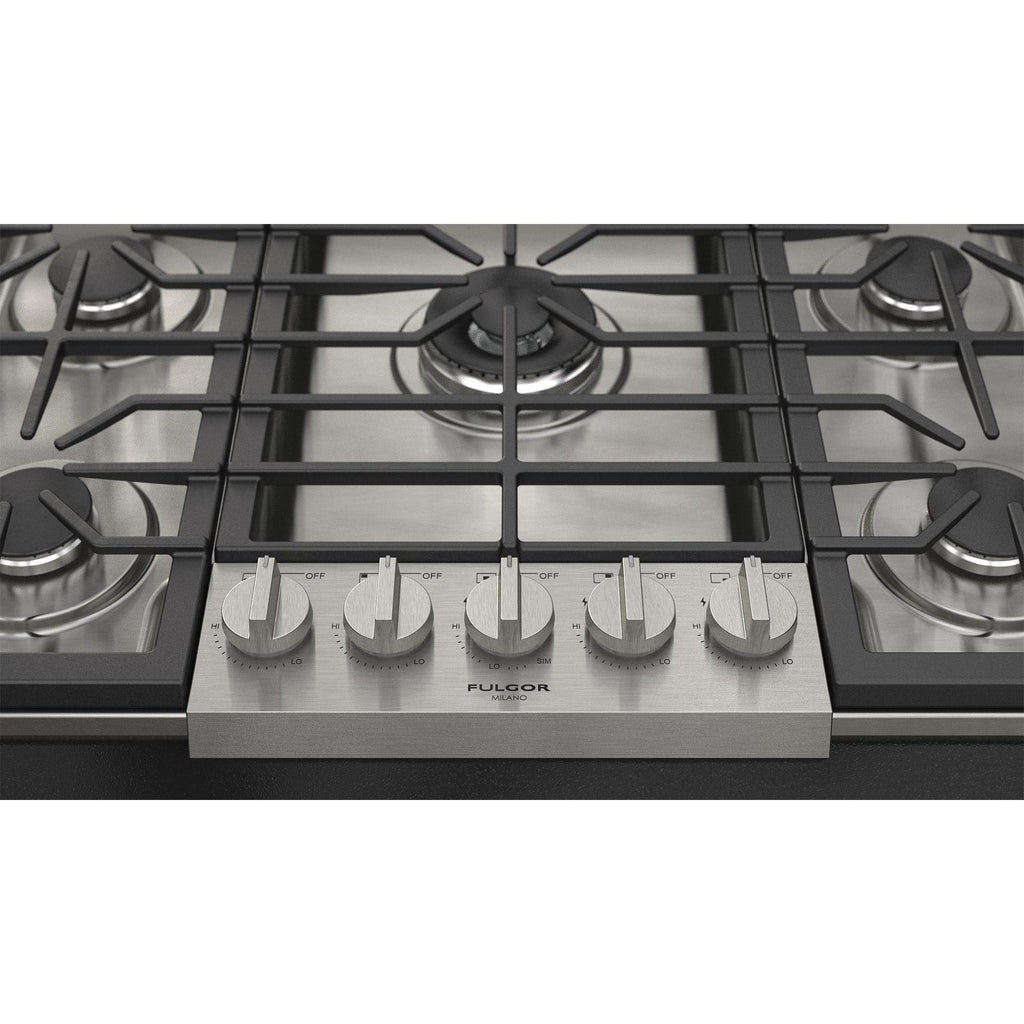

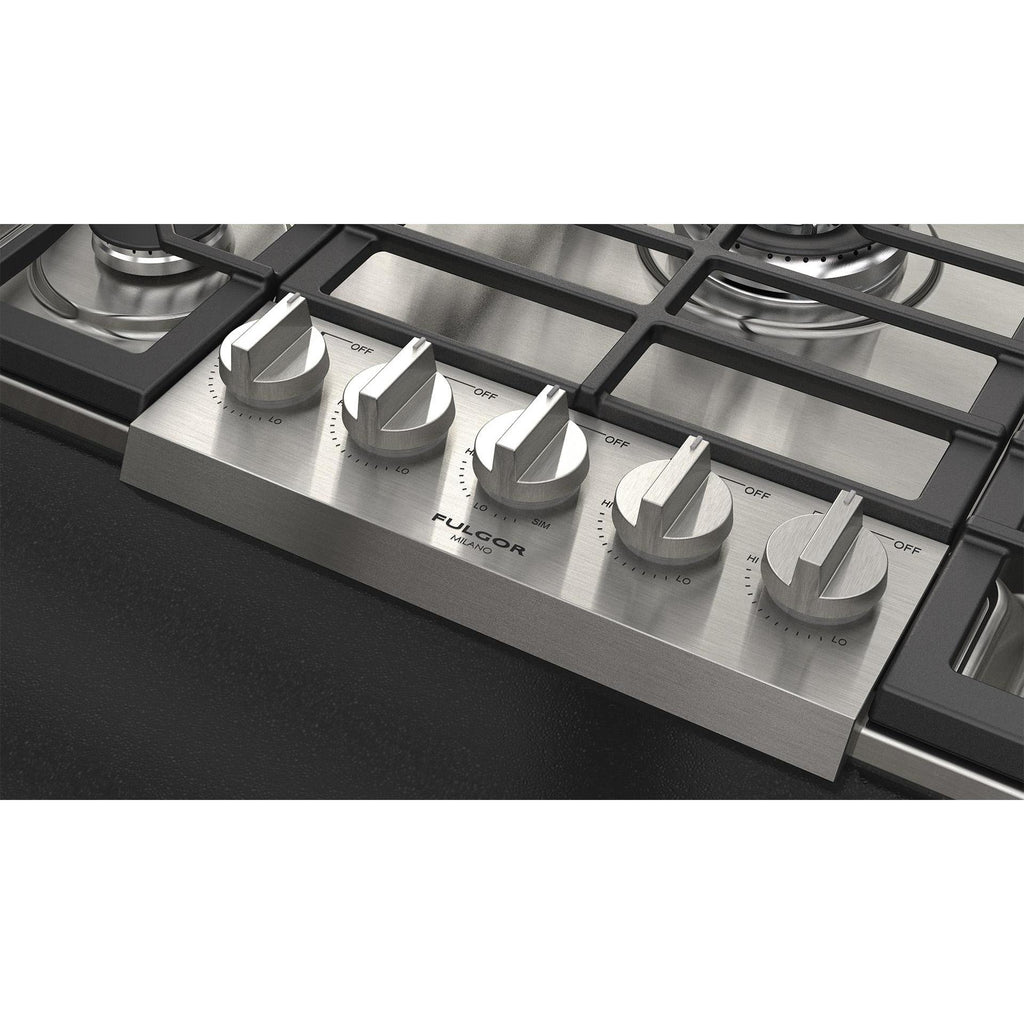

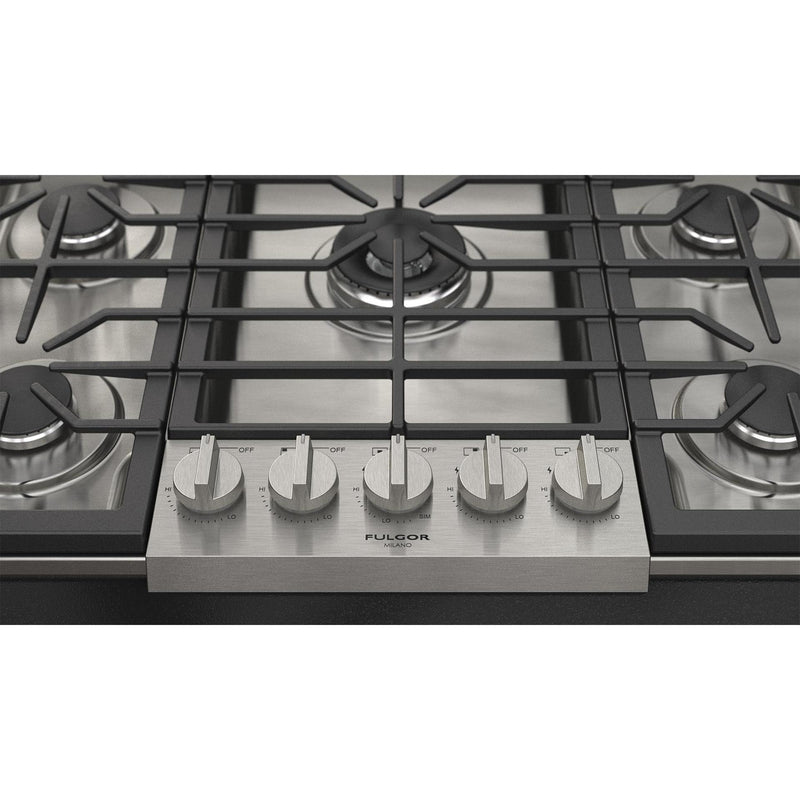

• Heavy-duty control panel
• Large cooking area
• Full pot stability
• LP Convertible
• Heavy Gauge 304 Stainless Steel Burner Bowl
• Dual 1 Central Dual Crescendo Burner
• Dual 4 Single Burners
• Heavy-duty control panel
• Large cooking area
• Full pot stability
• LP Convertible
Electrical Information
Information
• Power: 120 V, 60 HZ
• Amps 0.1A
• Max Power: 48600 (BTU/h) - 14266W
• Power Cable: Nema 5-15P
• Cable length: 53" (1350 mm)
• Amps 0.1A
• Max Power: 48600 (BTU/h) - 14266W
• Power Cable: Nema 5-15P
• Cable length: 53" (1350 mm)
Accessories
Optional
• FMWOK: Wok ring
• FMSIM: Simmer plate
• FMSIM: Simmer plate
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm

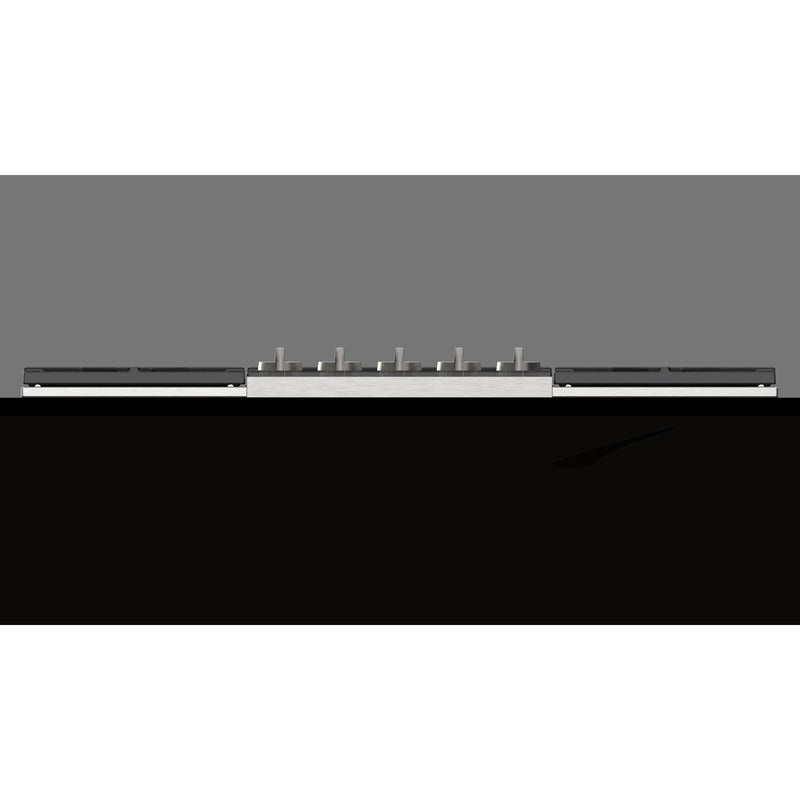

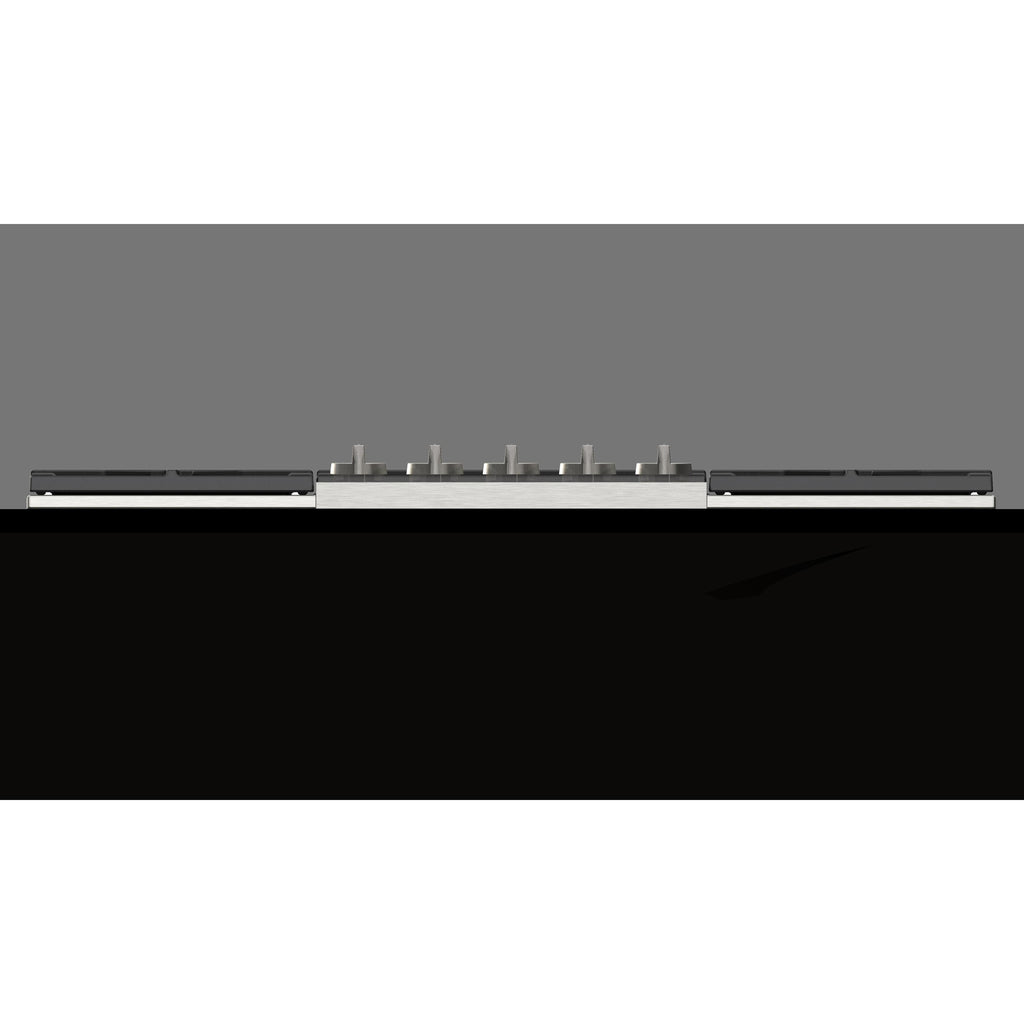

Height
3.44 inch(es) / 8.73 cm
Depth
21.44 inch(es) / 54.45 cm
Weight
60.01 lb(s) / 27.22 kg
Additional Dimensions
• Cut-out - Width - min - max: 28-1/2", 28-11/16" (724 mm - 729 mm)
• Cut-out - Height - min: 3-3/8" (87 mm)
• Cut-out - Depth - min - max: 19-9/16",19-3/4" (497 mm - 502 mm)
• Cut-out - Height - min: 3-3/8" (87 mm)
• Cut-out - Depth - min - max: 19-9/16",19-3/4" (497 mm - 502 mm)
Warranty
Warranty
1-Year Parts and Labor
