Features

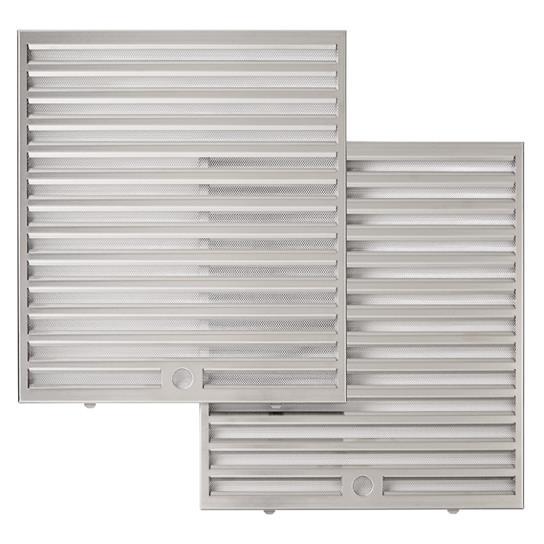

STAINLESS STEEL BAFFLE FILTERS
Capture grease typical to outdoor cooking. Include handles for easy removal and cleaning - easily accessible and
dishwasher-safe.

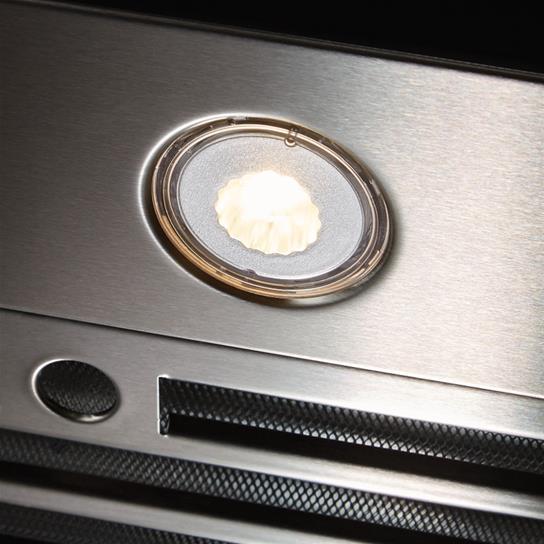

PURLED™
PURLED™ light system: boosts light output by 25%, distributes light six times better and improves energy efficiency by 88%.
HEAT SENTRY™
Detects excessive heat and adjusts blower speed to high automatically to prolong product life by reducing damaging effects of high temperatures.
CODE READY TECHNOLOGY (CRT)
With Code Ready Technology (CRT) code compliance has never been easier. CRT allows the installer to set the maximum blower speed to achieve the right level of performance offering another solution to address local codes or make-up air requirements.
Specifications
General
Series Name
Ispira
Blower Included
Yes
Airflow
600 CFM
Style
Island
Color
Black Stainless
Manufacturer Color
Black Stainless Steel with Black Glass
Installation
Island
Features
Dishwasher-Proof Filters
Yes
Technologies
• Heat Sentry™
• PURLED™ Light System
• Code Ready Technology (CRT)
• PURLED™ Light System
• Code Ready Technology (CRT)
Ducting Information
8" Round
Speeds
4-Speed Soft Touch Controls
Additional Information
• Internal Blower CFM: 230/600
• Sones Low/High:1.2/10.0
• PURELED™ Light System: Boosts Light Output By 25%, Distributes Light Six Times Better And Improves Energy Efficiency By 88%
• With Code Ready Technology (CRT) Code Compliance Has Never Been Easier. CRT allows the Installer to set the Maximum Blower Speed to Achieve the Right Level of Performance offering another Solution to Address Local Codes or Make-Up Air Requirements
• Two Ultra-Efficient Hybrid Baffle Filters Provide Ultra-Efficient Grease Removal with Superior Air Flow
• Sones Low/High:1.2/10.0
• PURELED™ Light System: Boosts Light Output By 25%, Distributes Light Six Times Better And Improves Energy Efficiency By 88%
• With Code Ready Technology (CRT) Code Compliance Has Never Been Easier. CRT allows the Installer to set the Maximum Blower Speed to Achieve the Right Level of Performance offering another Solution to Address Local Codes or Make-Up Air Requirements
• Two Ultra-Efficient Hybrid Baffle Filters Provide Ultra-Efficient Grease Removal with Superior Air Flow
Electrical Information
Information
120 V
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• Remote Control ACR3
• 10-Foot Flue Extension AEICB3SB
• 10-Foot Flue Extension AEICB3SB
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
23.12 inch(es) / 58.73 cm
Depth
22 inch(es) / 55.88 cm
Warranty
Warranty
• 5-Year (Parts)
• 2-Year (Labor Only)
• 2-Year (Labor Only)
UPC
UPC#
772371156067
