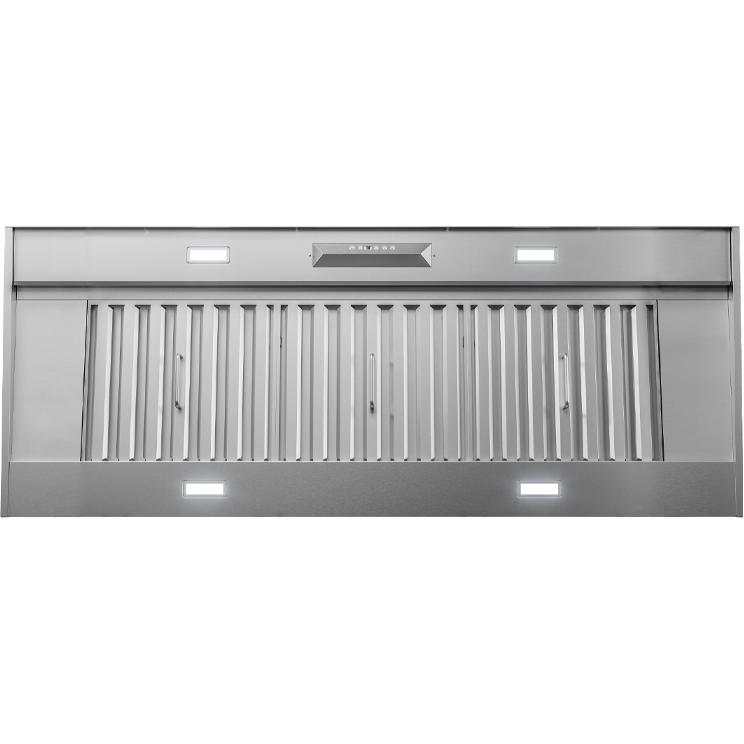

Zephyr 60-inch Core Collection Monsoon II Built-In Hood Insert AK9358BS

ZephyrSKU: AK9358BS
With LumiLight LED lighting and ACT™ technology, Zephyr Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions,... With LumiLight LED lighting and ACT™ technology, Zephyr Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected. View more
Price:
$4,059.00
Features Specifications Documents
Features
ELECTRONIC TOUCH CONTROL
Zephyr’s wireless RF remote puts you in control of your one-piece liner from up to 15 feet away.
ELECTRONIC TOUCH CONTROL
Additional Features
AIRFLOW CONTROL TECHNOLOGY
Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.
CLEAN AIR
Clean Air is a feature that turns the blower on every 4 hours for 10 minutes to remove stagnant air in the kitchen. This feature is disabled by default and must be enabled by the user.
Specifications
General
Series Name
• Core Collection
• Monsoon II
Blower Included
Yes
Airflow
1200 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Airflow Control Technology™
Ducting Information
10" Round - Vertical
Speeds
6
Additional Information
• Electronic Touch controls
• Auto delay-off
• CleanAir function
• Sones (Min. - Max.): 3.5 - 9
• Lighting: LumiLight LED, 6W x4
• Dual-level lighting
• 3 Pro baffle filters
• Grease collection tray
• ADA Compliant
Electrical Information
Information
120V, 60Hz at Max. 7A
Certifications and Approvals
Hvi Certified
No
Accessories
Included
Wireless Remote Control
Optional
Make-up air kit: MUA010A
Dimensions
Class Width
60"
Width
58.94 inch(es) / 149.7 cm
Height
12 inch(es) / 30.48 cm
Depth
22.5 inch(es) / 57.15 cm
Additional Dimensions
Mounting height range: 26" - 36"
Warranty
Warranty
• 1-Year limited warranty on labor only
• 3-Year limited warranty on none-consumable parts
UPC
UPC#
646328011689
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
