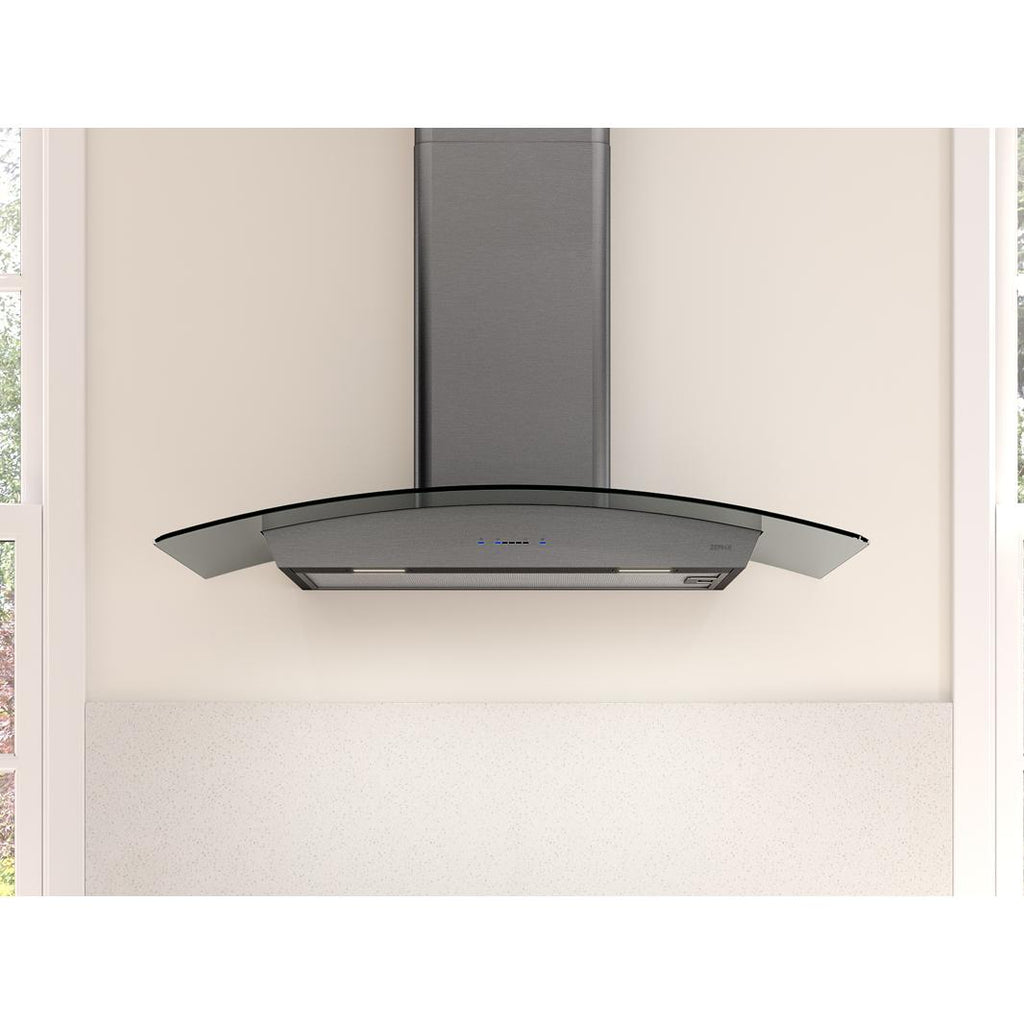

Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 1

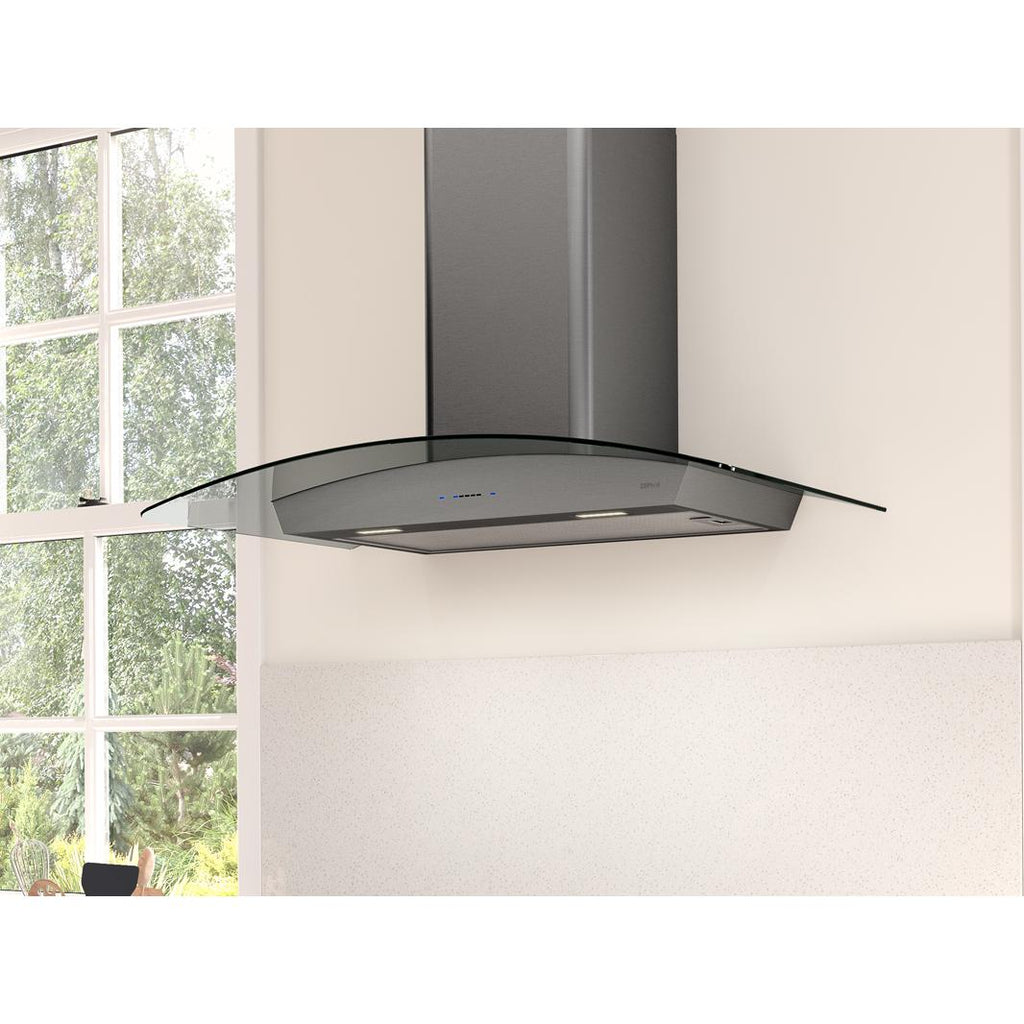

Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 2

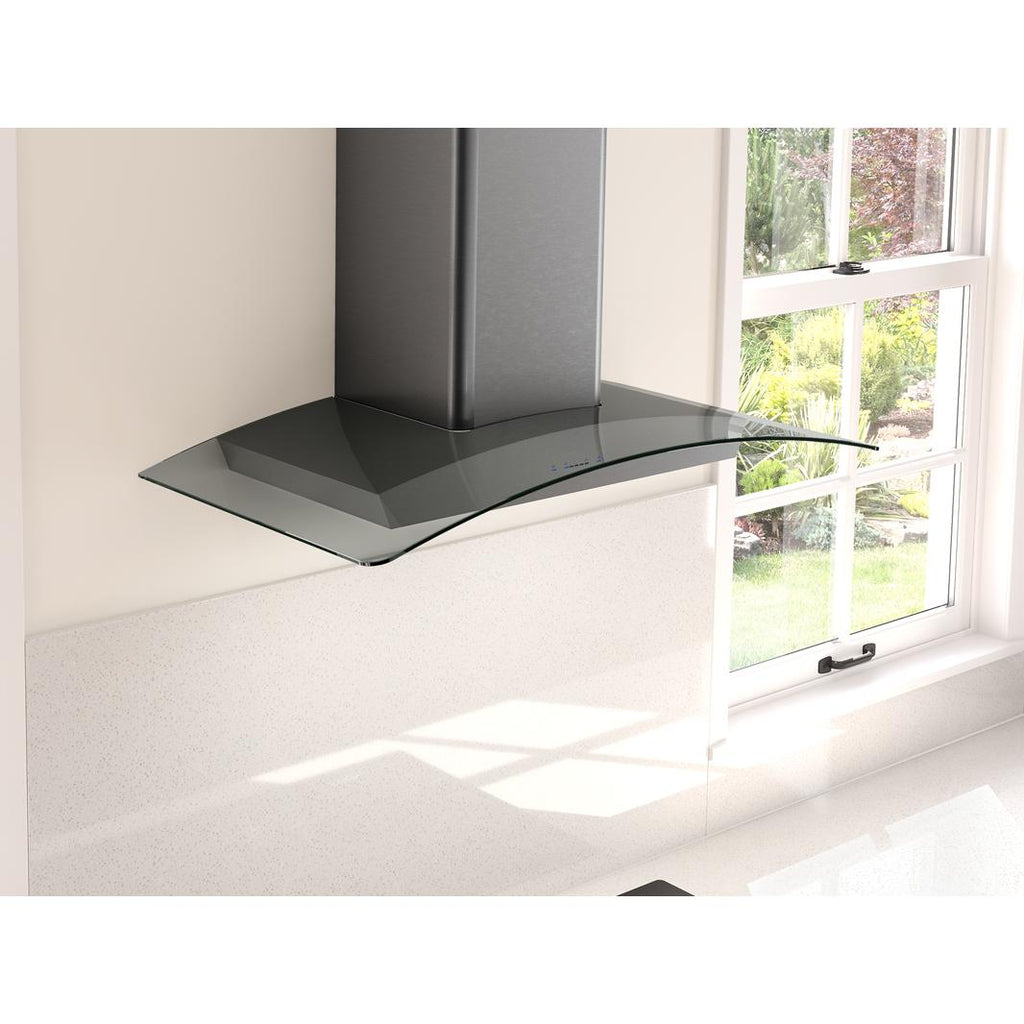

Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 3

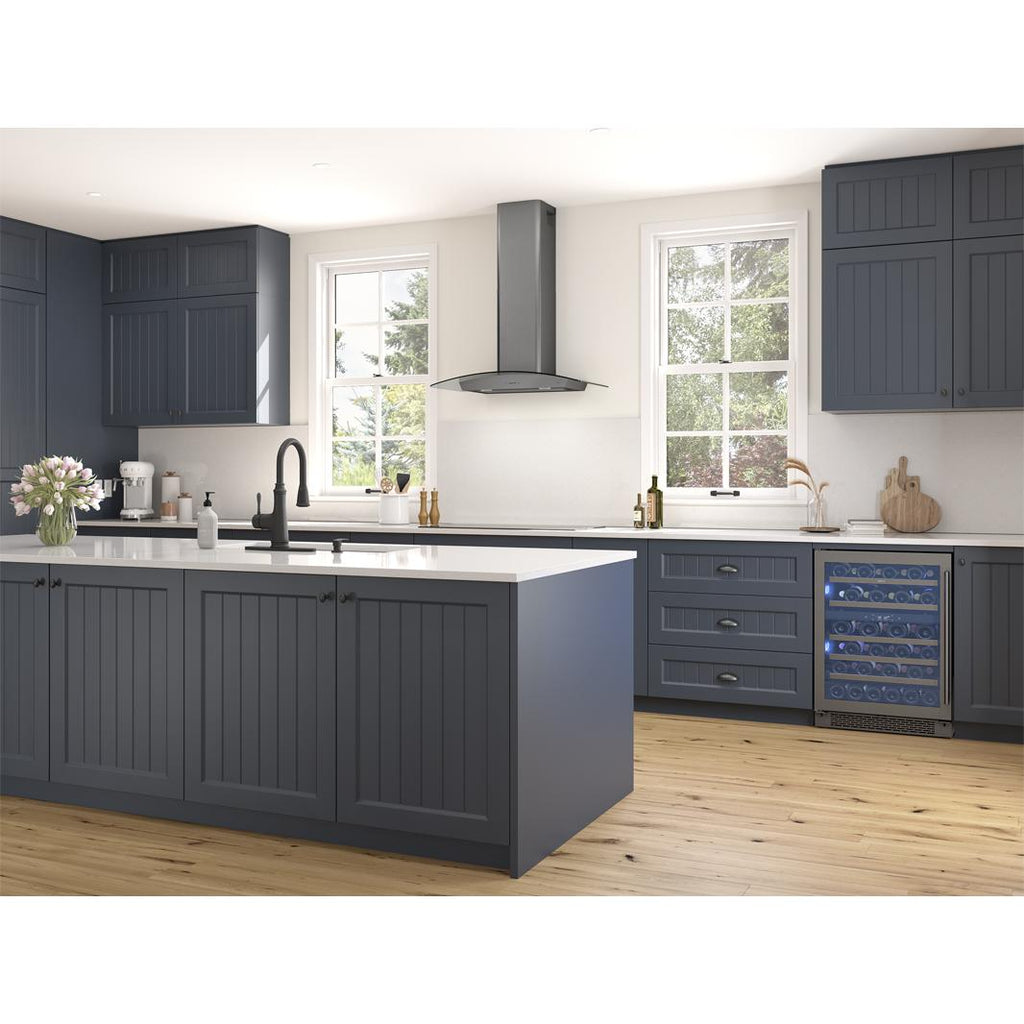

Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 4
Roll over image to zoom in Click on image to zoom
Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 1
Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 2
Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 3
Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG IMAGE 4

Zephyr 36-inch Core Ravenna Series Wall Mount Hood ZRV-M90CBSGG

ZephyrSKU: ZRVM90CBSGG
The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience.... The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Featuring Zephyr’s trend-setting black stainless steel, the Ravenna combines 21st century know-how with timeless beauty. Featuring Airflow Control Technology (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful — yet quiet — 600-CFM blower. View more
Price:
$2,489.00
Features Specifications Documents
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Additional Features
ICON TOUCH™ CONTROLS
Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Specifications
General
Series Name
Ravenna
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Black Stainless
Manufacturer Color
Black Stainless Steel with Smoke-Grey Glass
Installation
Wall Mount
Features
Technologies
• Airflow Control Technology™ (ACT™)
• ICON Touch® Controls
Ducting Information
6" Round
Speeds
• Speed Levels: 5*
• Min. - Max. CFM: 200 - 600
• Min. - Max. Sones: 1 - 6
• ACT 390 CFM (Min. - Max.): 200 - 390
• ACT 290 CFM (Min. - Max.): 200 - 290
• *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Additional Information
• LumiLight LED, 6W x2
• Dual-Level Lighting
• Smoke Gray Glass Canopy
• Auto Delay-Off
• Aluminum Mesh filter
• Vertical Internal Blower: 6" Round
Electrical Information
Information
• 120V
• 60Hz at Max.
• 4A
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Recirculating Kit: ZRC-00RV
• Duct Cover Extension: Z1C-00RVBS (Black SS)
• Make-Up Air Kit: MUA006A
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
15.31 inch(es) / 38.89 cm
Depth
19.75 inch(es) / 50.17 cm
Additional Dimensions
Mounting Height Range: 26"-34"
Warranty
Warranty
3 years parts, 1 year labor
UPC
UPC#
646328010910
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
