Applicable Rebate
THERMADOR "ONE-TWO-FREE GIFT WITH PURCHASE PROGRAM"
Purchase an eligible Thermador cooking package or qualifying refrigeration unit(s) and select your complimentary Emerald dishwasher. Purchase a complete qualifying kitchen and choose from a selection of free bonus gifts. Plus, you can complete your dream kitchen with a built-in coffee machine for only $4000. - Offers valid on purchases made between July 1, 2024 and December 31, 2024.
See all qualifying products
Features
POWERBOOST®
Induction PowerBoost® feature heats cookware faster than any other type of cooking technology.
Specifications
General
Series Name
Masterpiece®
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Front Left: 1,800W
• Back Left: 1,800W
• Back Right: 1,400W
• Front Right: 2,200W
• Front Center: 2,200 / 2,600 / 3,300W
• Back Left: 1,800W
• Back Right: 1,400W
• Front Right: 2,200W
• Front Center: 2,200 / 2,600 / 3,300W
Burner/Element Size
• Front Left: 7"
• Back Left: 7"
• Back Right: 6"
• Front Right: 9"
• Front Center: 11" / 9" / 13"
• Back Left: 7"
• Back Right: 6"
• Front Right: 9"
• Front Center: 11" / 9" / 13"
Elements
Smoothtop
Features
Technologies
PowerBoost® feature increases element power by up to 50%, saving time to heat up pots or cook large quantities
Control Lock
Yes
Additional Information

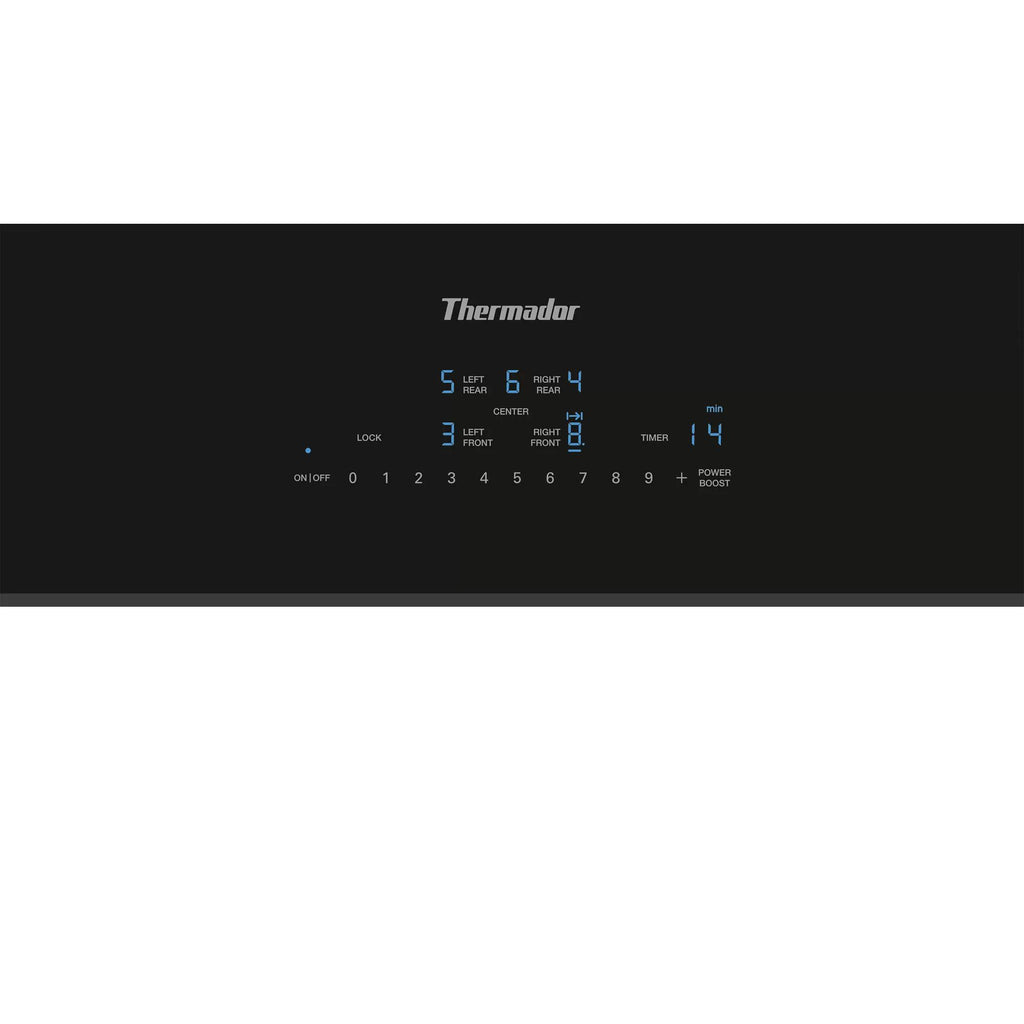

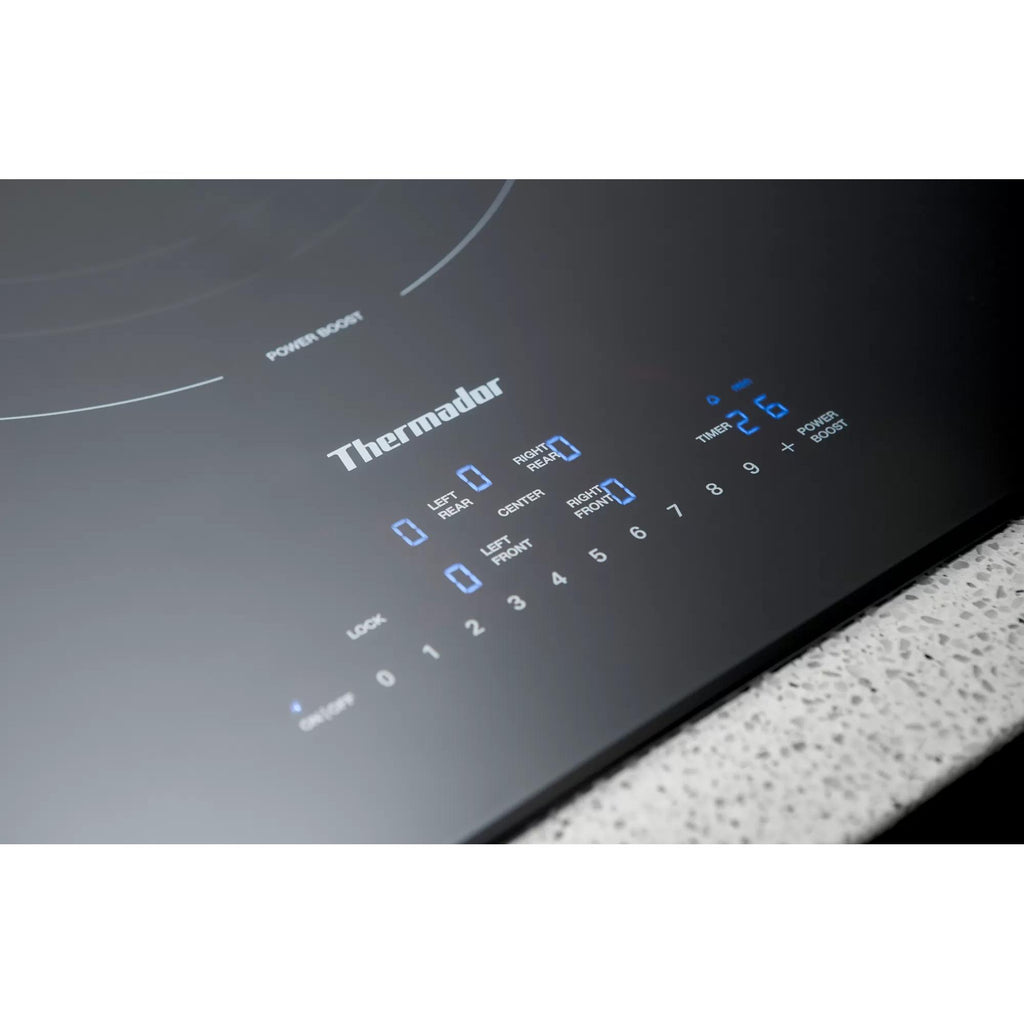

• Illuminated touch controls
• 17 power settings
• Triple zone element
• Automatic pan recognition
• Childproof lock
• Key Lock
• Power management function
• Safety time-switch-off
• 2 stage residual heat indicators

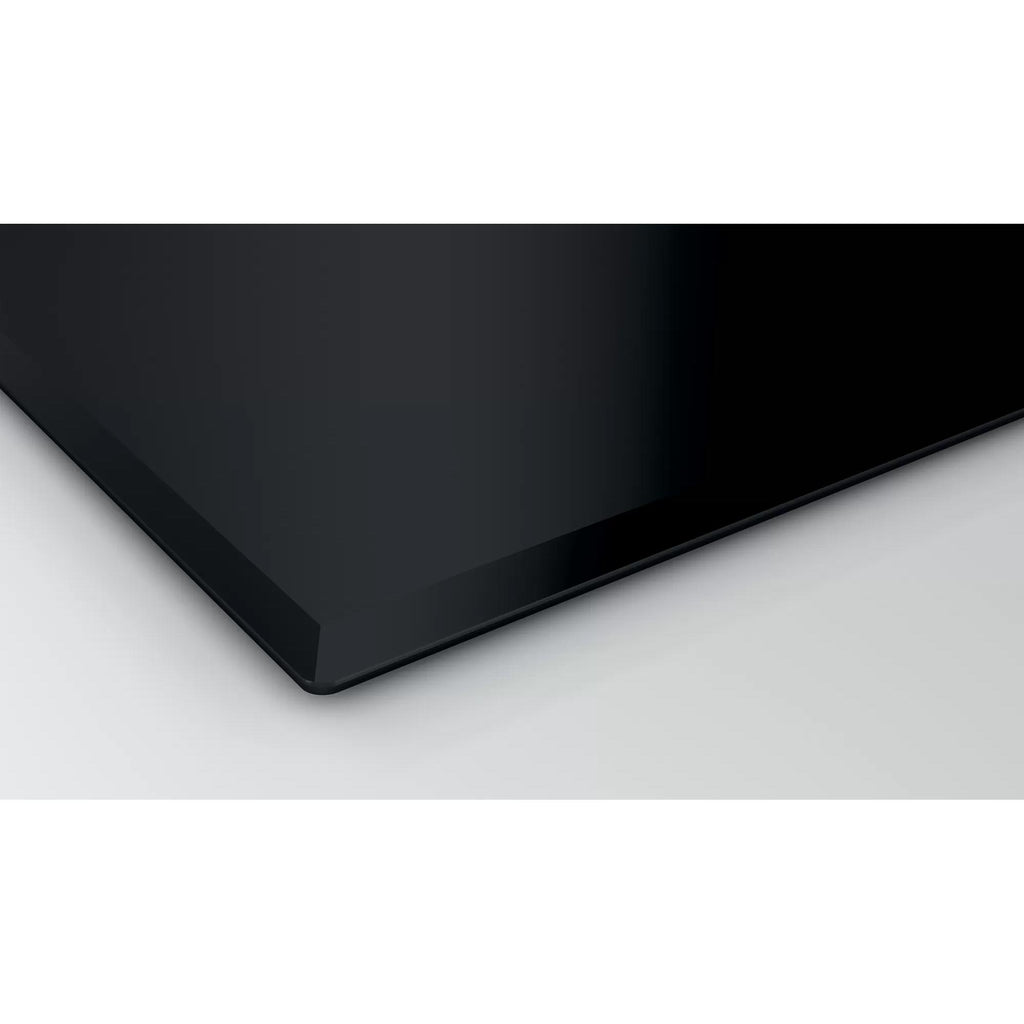

• Frameless design
• 17 power settings
• Triple zone element
• Automatic pan recognition
• Childproof lock
• Key Lock
• Power management function
• Safety time-switch-off
• 2 stage residual heat indicators
• Frameless design
Electrical Information
Information
• Watts: 9360
• Fuse protection: 50
• Volts: 208-240
• Frequency: 60
• Energy consumption of hob: 175.0 Wh/kg
• Energy consumption of heating elements: 175.0 Wh/kg
• Fuse protection: 50
• Volts: 208-240
• Frequency: 60
• Energy consumption of hob: 175.0 Wh/kg
• Energy consumption of heating elements: 175.0 Wh/kg
Certifications and Approvals
Information
Dekra Mark C+US, FCC
Accessories
Optional
• Sensor Frying Pan (Small): 00570364
• Frying Pan: 11025728 CHEFSPAN08
• 16" Chef's Pan: 00741852 CHEFSPAN13
• Frying Pan: 11025728 CHEFSPAN08
• 16" Chef's Pan: 00741852 CHEFSPAN13
Dimensions
Class Width
36"
Width
37 inch(es) / 93.98 cm
Height
7.25 inch(es) / 18.42 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
52.01 lb(s) / 23.59 kg
Additional Dimensions
• Minimum distance from counter front: 2 1/2"
• Minimum distance from rear wall: 2 3/8"
• Power Cord Length: 37"
• Required cutout size (HxWxD): 3 7/8" x 34 7/8" x 20"
• Minimum distance from rear wall: 2 3/8"
• Power Cord Length: 37"
• Required cutout size (HxWxD): 3 7/8" x 34 7/8" x 20"
Shipping Dimensions
Width
42.13 inch(es) / 107 cm
Height
7.06 inch(es) / 17.94 cm
Depth
26.75 inch(es) / 67.95 cm
Weight
61 lb(s) / 27.67 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
825225960263
