Features

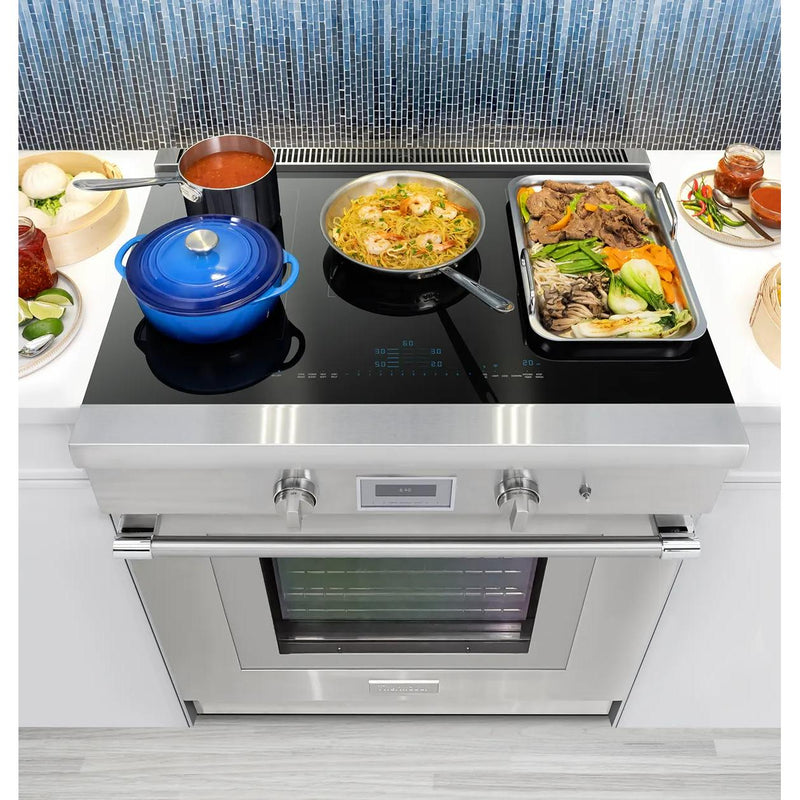

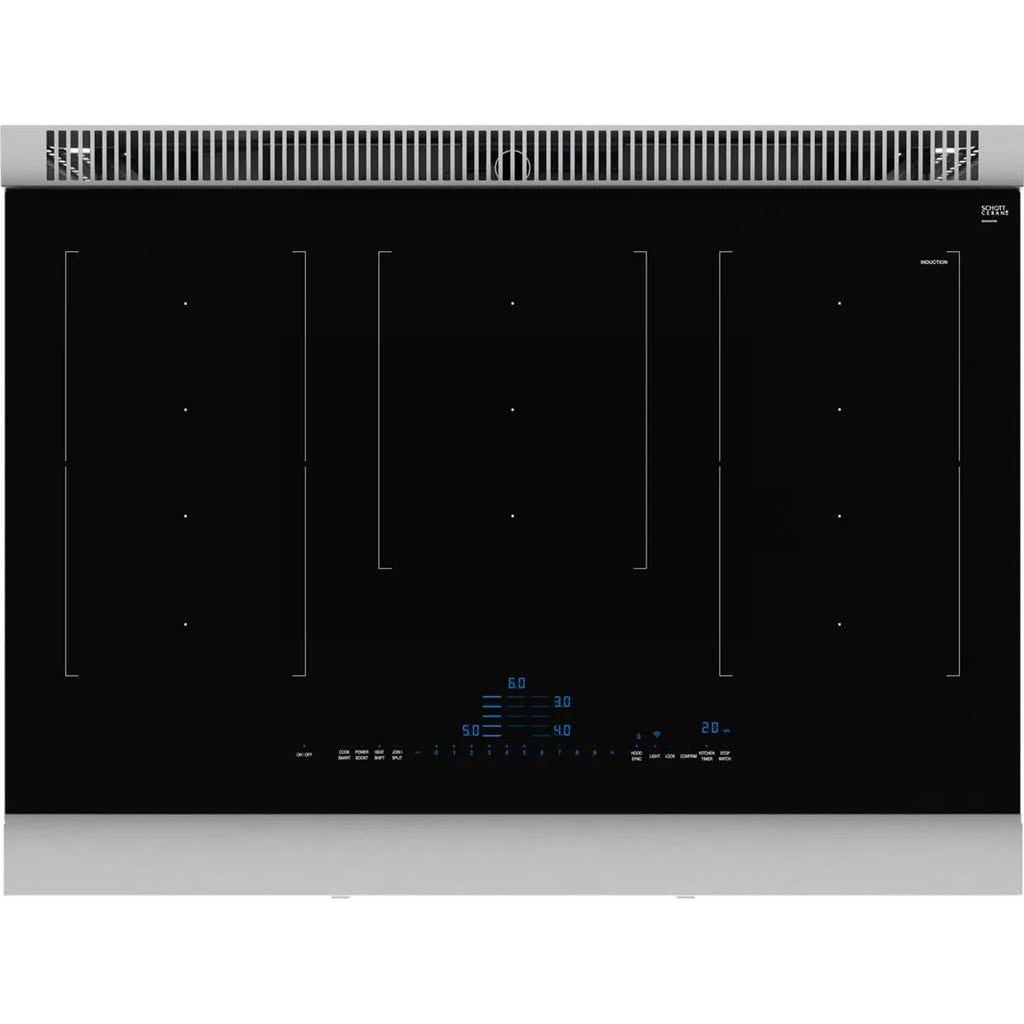

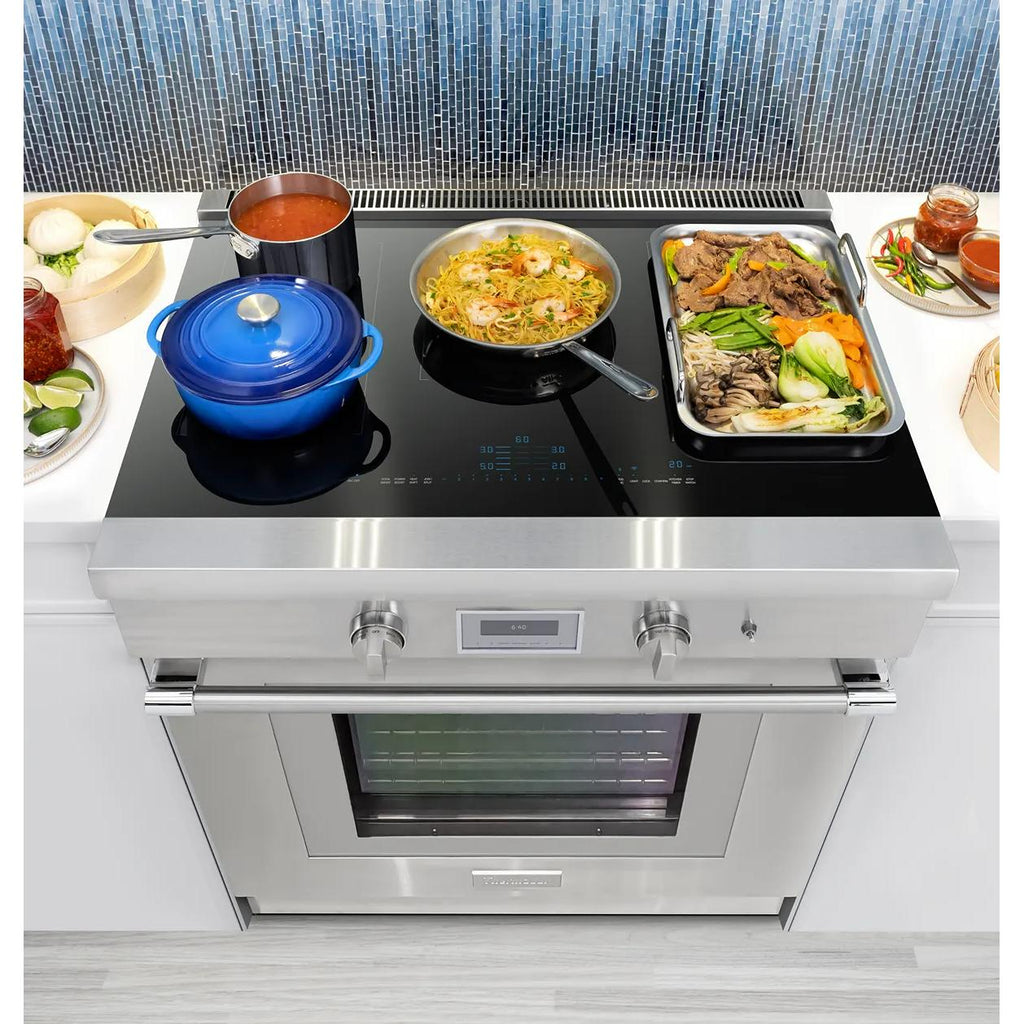

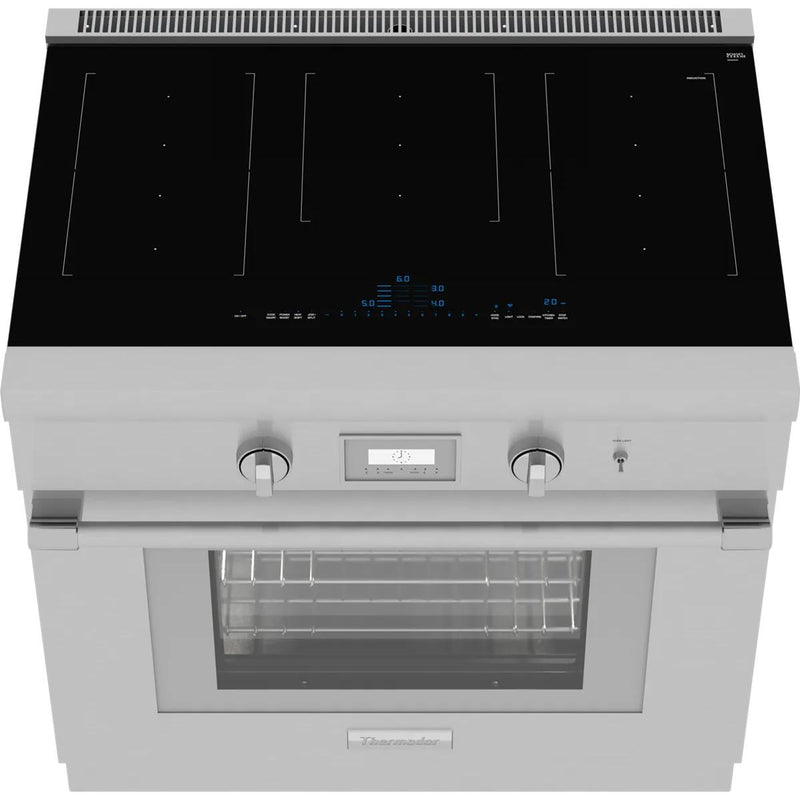

LIBERTY® COOKTOP

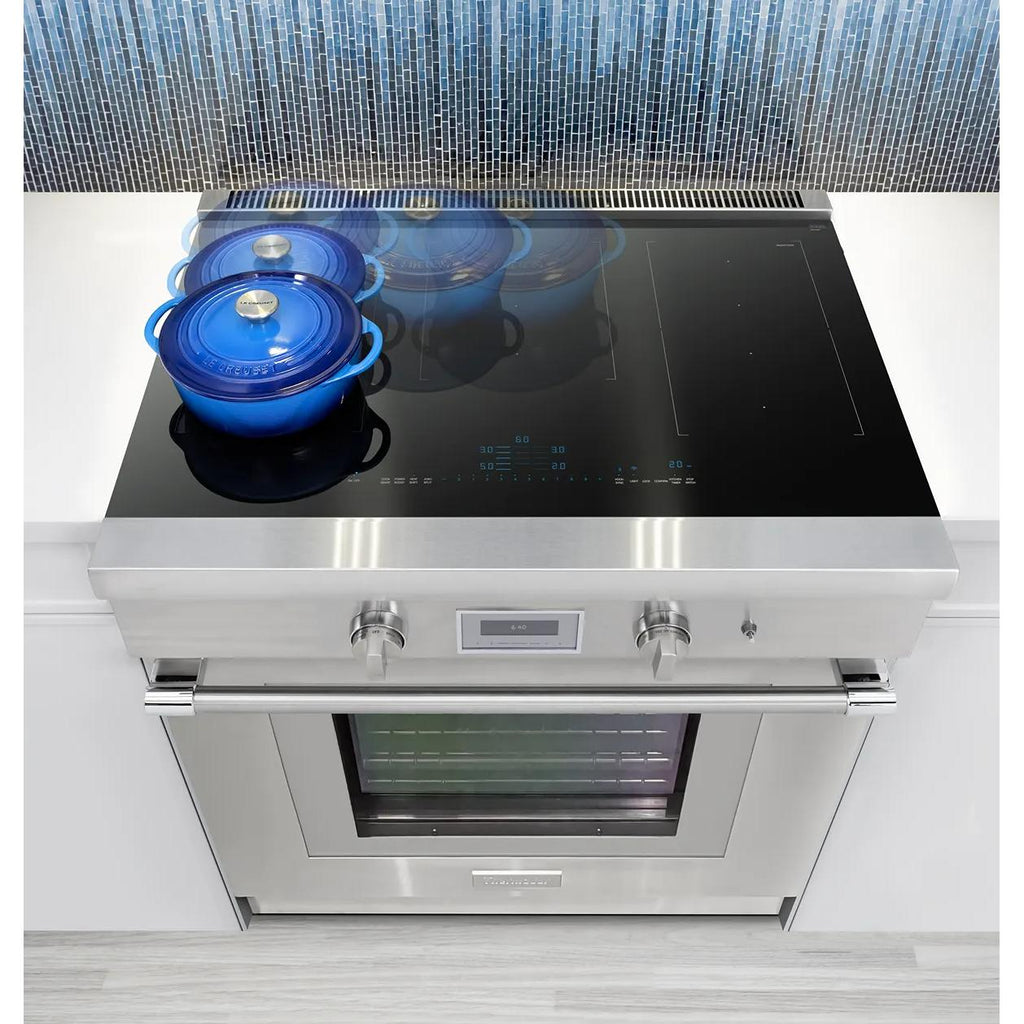

The Liberty® cooktop comes with two large flexible cooking zones and FlexPlus™heating elements that provide the ultimate in cooking performance and flexibility with HeatShift®, MoveMode®, and PowerBoost®

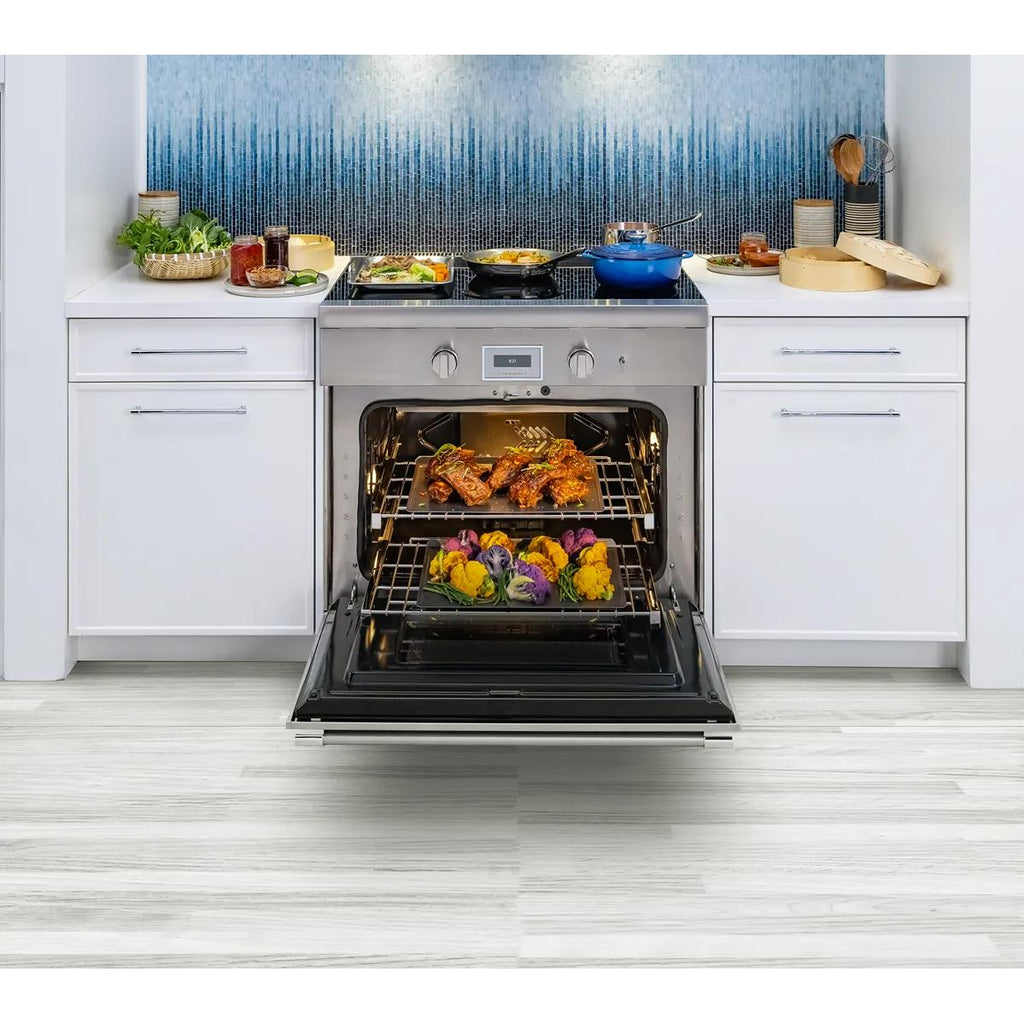

TRUE CONVECTION OVEN WITH THIRD ELEMENT
True Convection oven with a third element adds greater efficiency to cook up to five levels of sheet pans evenly.
HOME CONNECT®
Connect to your range for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services
Specifications
General
Series Name
Professional
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Power of Back Left Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Front Left Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Center Heating Element 3,300 W / 3,600 W (In Boost)
• Power of Back Right Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Front Right Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Front Left Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Center Heating Element 3,300 W / 3,600 W (In Boost)
• Power of Back Right Heating Element 2,200 W / 3,600 W (In Boost)
• Power of Front Right Heating Element 2,200 W / 3,600 W (In Boost)
Burner/Element Size
• Dimension of Front Left Heating Element 8 1/2" x 7 1/2"
• Dimension of Back Left Heating Element 8 1/2" x 7 1/2"
• Dimension of Center Heating Element 9 1/2" x 11"
• Dimension of Back Right Heating Element 8 1/2" x 7 1/2"
• Dimension of Front Right Heating Element 8 1/2" x 7 1/2"
• Dimension of Back Left Heating Element 8 1/2" x 7 1/2"
• Dimension of Center Heating Element 9 1/2" x 11"
• Dimension of Back Right Heating Element 8 1/2" x 7 1/2"
• Dimension of Front Right Heating Element 8 1/2" x 7 1/2"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.9 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Convection Bake
• True Convection
• Convection Roast
• Roast
• Convection Broil
• Broil
• Meat Probe
• Convection Bake
• True Convection
• Convection Roast
• Roast
• Convection Broil
• Broil
• Meat Probe
Features
Technologies
• Home Connect® (Wi-Fi Enabled)
• True Convection Technology
• True Convection Technology
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information

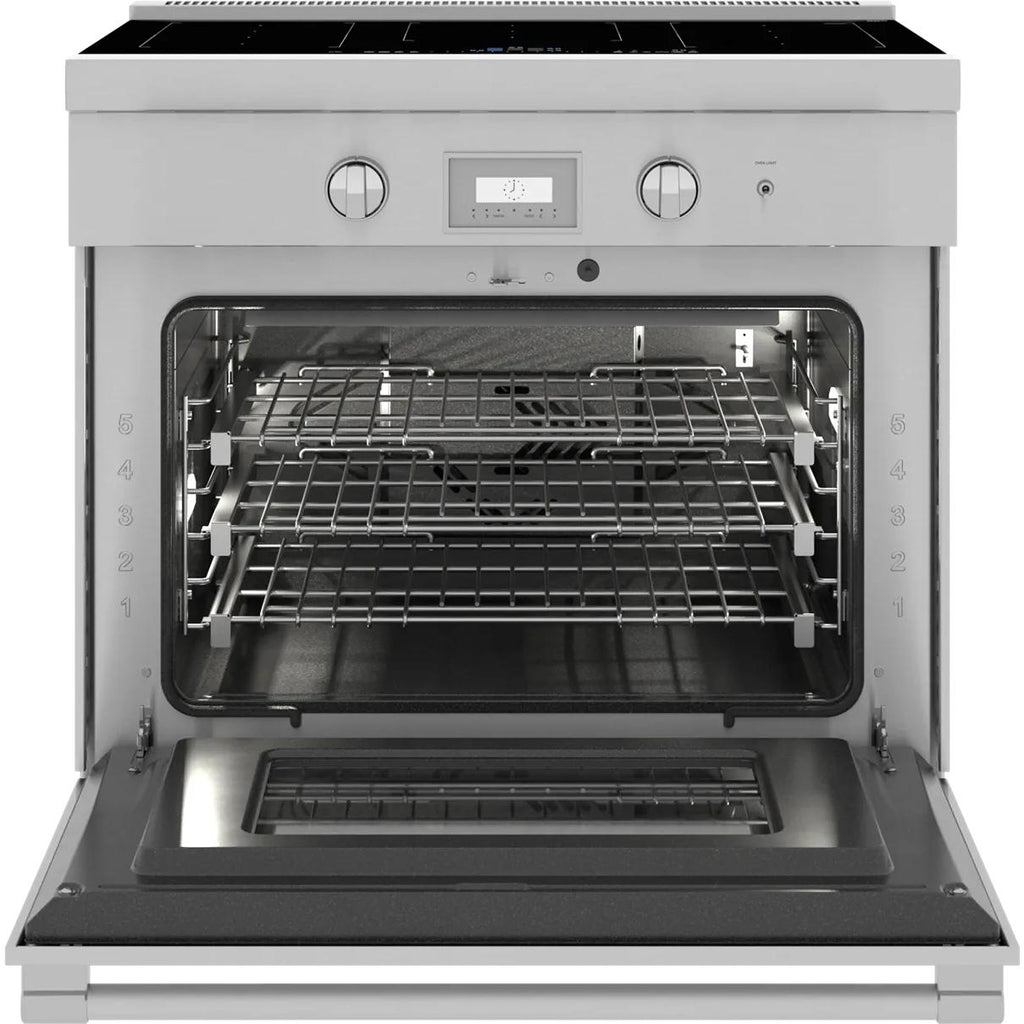

• Telescopic Racks: 3
• Interior Lights: 2
• Bake Power: 2,000 W
• Broil Power: 4,000 W
• Convection Power: 2,750 W
• Interior Lights: 2
• Bake Power: 2,000 W
• Broil Power: 4,000 W
• Convection Power: 2,750 W
Electrical Information
Information
• Circuit Breaker 50 A
• Volts 240 / 208 V, 60Hz
• 4 Wire
• Plug Type 208 / 240V 4-Prong
• Volts 240 / 208 V, 60Hz
• 4 Wire
• Plug Type 208 / 240V 4-Prong
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
36"
Width
35.94 inch(es) / 91.28 cm
Height
35.75 inch(es) / 90.81 cm
Depth (Without Handles)
24.75 inch(es) / 62.87 cm
Weight
409.99 lb(s) / 185.97 kg
Additional Dimensions
• Cavity Interior Dimensions (HxWxD): 16 3/8" x 28" x 18 1/2"
• Cavity Usable Dimensions (HxWxD): 12" x 25 3/8" x 16 3/4"
• Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 36" x 24"
• Cavity Usable Dimensions (HxWxD): 12" x 25 3/8" x 16 3/4"
• Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 36" x 24"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225968115
