Features
COOKSMART®
Never guess a cooking time or temperature again. With 9 pre-programmed modes and auto-shutoff, you’ll get the perfect results every time you cook. Cooking modes include: pasta, potatoes, rice, dumplings, vegetables, sausages, milk, rice pudding and deep frying. *THERMADOR EXCLUSIVE
Specifications
General
Color
Stainless Steel
Manufacturer Color
Black with Stainless Steel Frame
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Front Left Heating Element: 1,700 W
• Front Left Heating Element (In Boost): 3,000 W
• Back Left Heating Element: 1,700 / 700 W
• Bridge Element: 4,000 W
• Center Heating Element: 3,080 / 2,200 / 1,050 W
• Back Right Heating Element: 1,200 W
• Front Right Heating Element: 2,100 / 1,200 W
• Front Left Heating Element (In Boost): 3,000 W
• Back Left Heating Element: 1,700 / 700 W
• Bridge Element: 4,000 W
• Center Heating Element: 3,080 / 2,200 / 1,050 W
• Back Right Heating Element: 1,200 W
• Front Right Heating Element: 2,100 / 1,200 W
Burner/Element Size
• Dimension of Front Left Heating Element: 7"
• Dimension of Back Left Heating Element: 7", 5"
• Dimension of Center Heating Element: 11", 8", 6"
• Dimension of Back Right Heating Element: 6"
• Dimension of Front Right Heating Element: 8", 6"
• Dimension of Back Left Heating Element: 7", 5"
• Dimension of Center Heating Element: 11", 8", 6"
• Dimension of Back Right Heating Element: 6"
• Dimension of Front Right Heating Element: 8", 6"
Elements
Smoothtop
Features
Technologies
CookSmart®
Digital Display
Yes
Additional Information
• Dual zone bridge element accommodates oblong cookware and multiple diameter sizes
• Triple zone center element allows you to match element size to various sized cookware
• Illuminated touch control panel offers intuitively simple selection of power levels and allows for easy cleaning

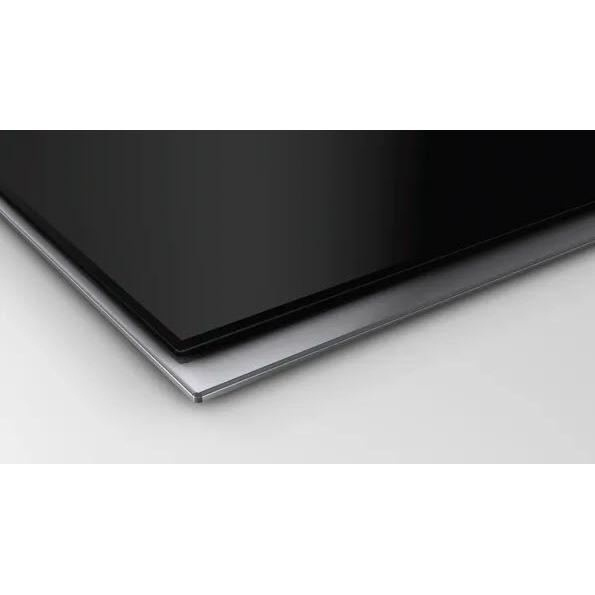

• Full stainless steel frame surrounds the cooktop surface
• Triple zone center element allows you to match element size to various sized cookware
• Illuminated touch control panel offers intuitively simple selection of power levels and allows for easy cleaning
• Full stainless steel frame surrounds the cooktop surface
Electrical Information
Information
• 10,520 W
• 50 / 40 A
• 240 / 208 V
• 60 Hz
• 50 / 40 A
• 240 / 208 V
• 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
1 x glass scraper
Dimensions
Class Width
36"
Width
37.01 inch(es) / 94.0 cm
Height
3 inch(es) / 7.62 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
34 lb(s) / 15.42 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 3 15/16" x 34 3/4" x 19 7/8"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2 3/4"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2 3/4"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225960249
