Features
FREEZE. CHILL. STORE. ALL IN ONE DRAWER
The ThermaFlex™ Drawer offers you the flexibility to change the temperature based on your storage needs. Pre-set temperatures include: Freezer, Soft Freeze, Refrigerator, Beverages, Meat/Fish, Deli/Cheese and Cake.

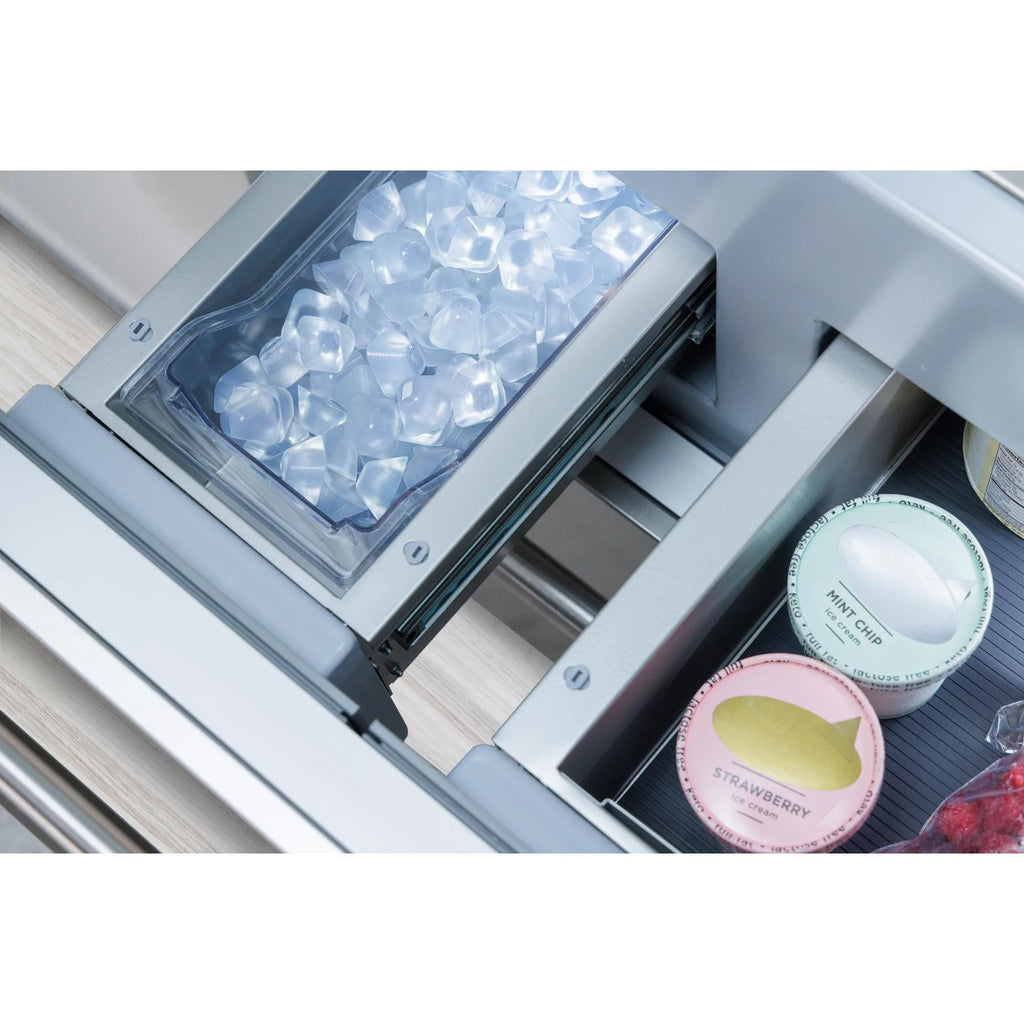

DIAMOND SHAPED ICE FOR ELEVATED BEVERAGES
With a dedicated ice zone, Thermador Diamond Ice is an eye-catching addition to any party with a unique shape that keeps drinks cold. Use Diamond Ice in your favorite craft cocktails to make a lasting impression made with a filtered automatic ice maker.

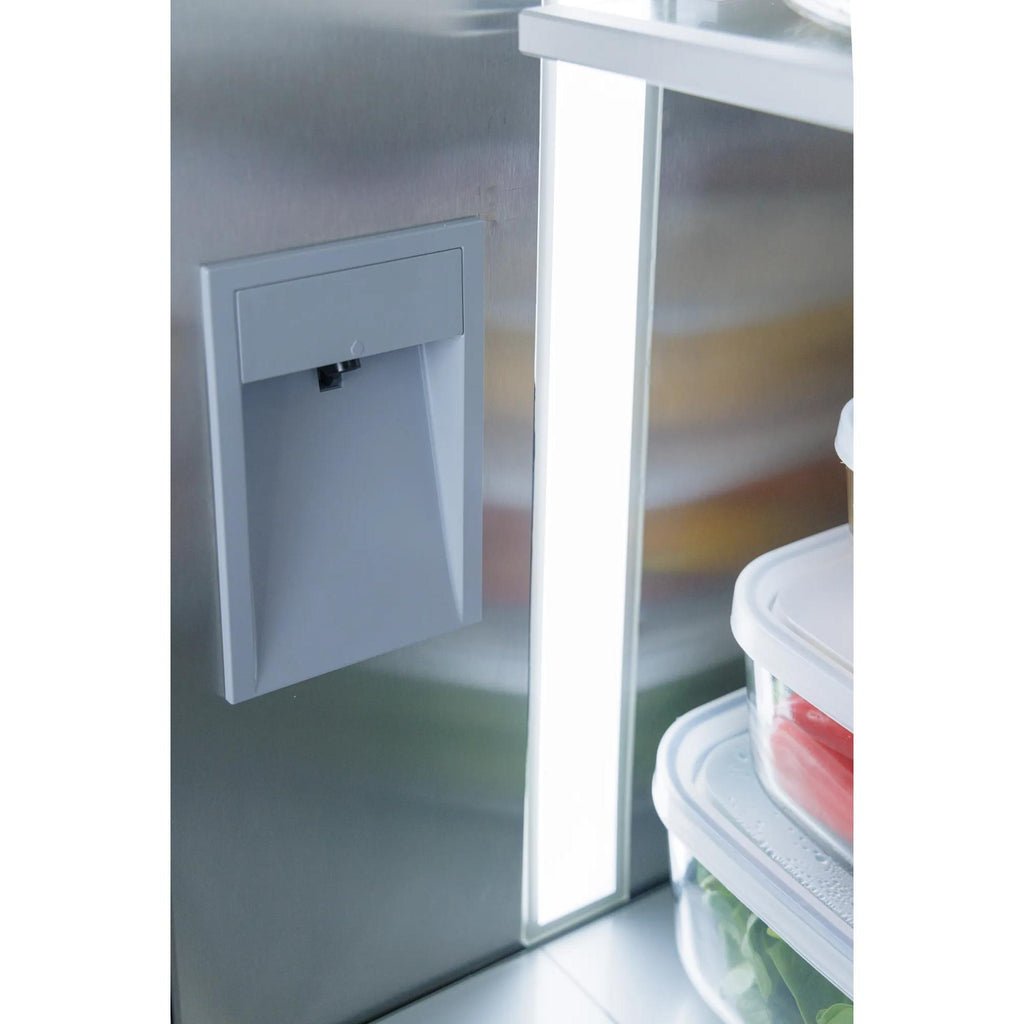

INTERNAL WATER DISPENSER WITH ULTRACLARITYPRO WATER FILTER
Internal Water Dispenser with UltraClarityPro water filter that removes 99% of impurities provides easy to access water.

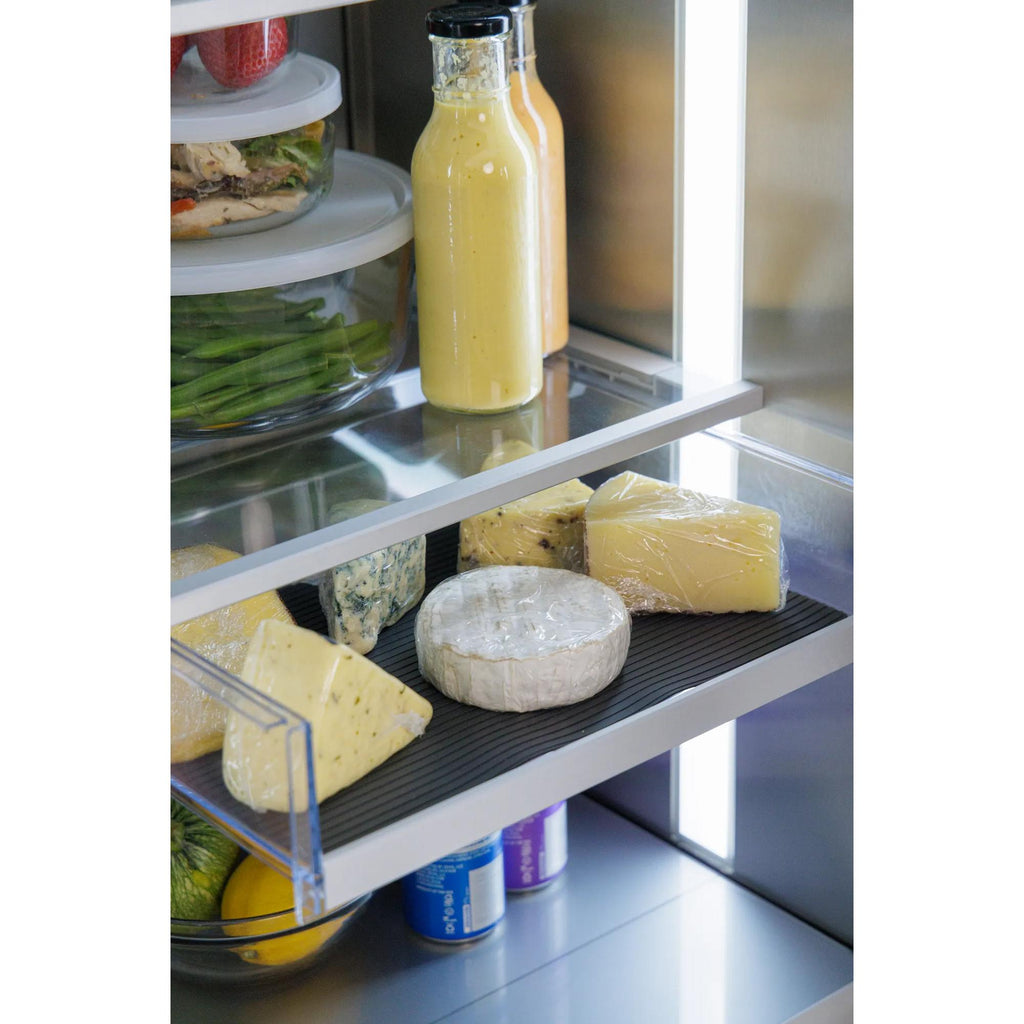

ADJUSTABLE SHELVING TO MEET YOUR STORAGE NEEDS
Split-level shelves allow for increased personalization to meet your storage needs.

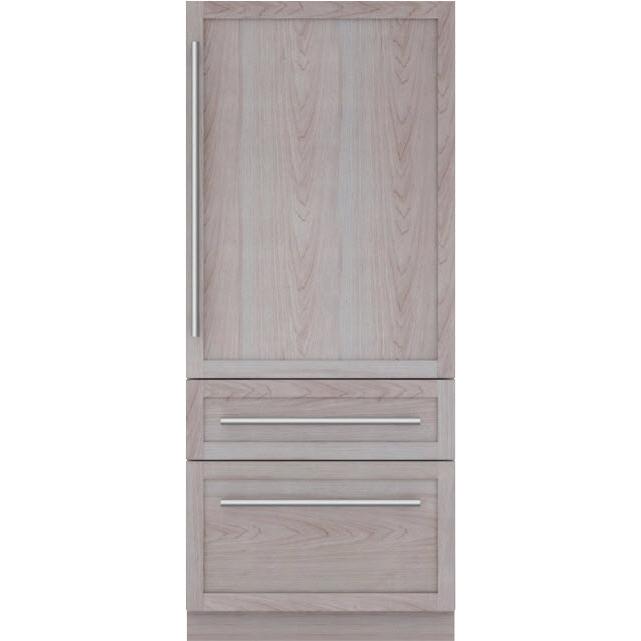

FREEDOM® HINGE ENABLES TRUE FLUSH DESIGN
The Freedom® Hinge can be installed fully-flush, allowing for custom panels to match the surrounding cabinetry for completely seamless integration.
Specifications
General
Series Name
Freedom® Collection
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Door Hinge
Right
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
19.0 cu. ft.
Refrigerator
12.8 cu. ft.
Freezer
6.2 cu. ft.
Refrigerator Features
Technologies
• Home Connect™ (Wi-Fi Enabled)
• SoftClose® Drawers
• ThermaFresh® Temperature & Humidity Managed Drawers: 2
• SoftClose® Drawers
• ThermaFresh® Temperature & Humidity Managed Drawers: 2

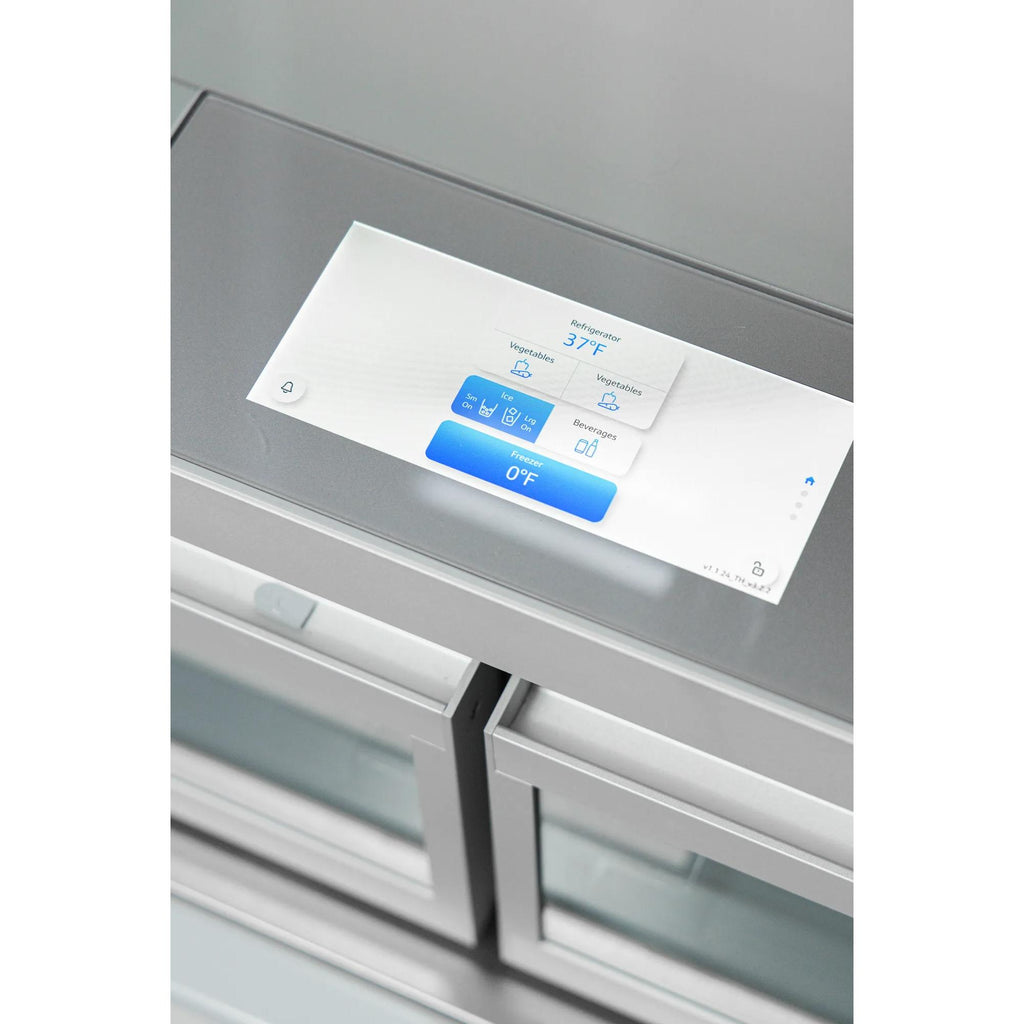

Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Carbon Air Filter
• Ethylene Filters: 2
• Top and Sidewall LED Theater Lighting
• Dual Compressors / Evaporators
• 4 Adjustable Shelves
• Adjustable Shelves
• Shelf Material Glass with Metal Profile
• 7 Non-slip Mats
• Full Extension Drawers @ 115° Door Opening Angle
• Refrigerator: 33°F (1°C) to 43°F (6°C)
• SuperCool: 34°F (1°C) for Approximately 6 Hours
• Energy Saving (Economy) Mode: Refrigerator: 43°F (6°C), Vitafresh: 37°F (3°C)
• Flex Drawer: 0°F (-18°C) to 39°F (4°C)
• Preset Drawer Temperatures: Freezer, Soft Freeze, Refrigerator, Beverages, Meat/Fish, Deli/Cheese, Cake
• Ethylene Filters: 2
• Top and Sidewall LED Theater Lighting
• Dual Compressors / Evaporators
• 4 Adjustable Shelves
• Adjustable Shelves
• Shelf Material Glass with Metal Profile
• 7 Non-slip Mats
• Full Extension Drawers @ 115° Door Opening Angle
• Refrigerator: 33°F (1°C) to 43°F (6°C)
• SuperCool: 34°F (1°C) for Approximately 6 Hours
• Energy Saving (Economy) Mode: Refrigerator: 43°F (6°C), Vitafresh: 37°F (3°C)
• Flex Drawer: 0°F (-18°C) to 39°F (4°C)
• Preset Drawer Temperatures: Freezer, Soft Freeze, Refrigerator, Beverages, Meat/Fish, Deli/Cheese, Cake
Freezer Features
Additional Freezer Information
• Freezer: -7°F (-22°C) to 6°F (-14°C)
• SuperFreeze®: -15°F (-26°C) for Approximately 8 Hours
• SuperFreeze®: -15°F (-26°C) for Approximately 8 Hours
Ice and Water
Ice System
Interior
Water System
Interior
Dispenser Features
Ice Maker with Diamond Ice System in Freezer
Electrical Information
Information
• 110-120 V
• 60 Hz
• 15 A
• Power Cord Length (in.): 118
• Plug Type: 120V-3 Prong
• 60 Hz
• 15 A
• Power Cord Length (in.): 118
• Plug Type: 120V-3 Prong
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Additional Information
Economy, Vacation, Theater
Accessories
Optional
• UltraClarityPro® Water Filter REPLFLTR55
• Ethylene Filter Starter Kit ACLETHST10
• Ethylene Filter Refill ACLETHRF10
• Freedom Heater Kit HEATRKIT20
• COMBIKIT10
• 36" Masterpiece Handle Kit MS3600IB10
• 36" Professional Handle Kit PR3600IB10
• 36" Stainless Steel Panel Set TFL36IB100
• Ethylene Filter Starter Kit ACLETHST10
• Ethylene Filter Refill ACLETHRF10
• Freedom Heater Kit HEATRKIT20
• COMBIKIT10
• 36" Masterpiece Handle Kit MS3600IB10
• 36" Professional Handle Kit PR3600IB10
• 36" Stainless Steel Panel Set TFL36IB100
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.8 cm
Height (With Hinge)
83.58 inch(es) / 212.3 cm
Depth (Without Handles)
24.68 inch(es) / 62.7 cm
Weight
476 lb(s) / 215.91 kg
Additional Dimensions
Flush Install Cutout Size (H x W x D) (in.): 84" x 36" x 25"
Shipping Dimensions
Weight
518 lb(s) / 234.96 kg
Warranty
Warranty
• Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect: 2 Year
• Limited Warranty for Sealed Refrigeration System*; Parts and Labor: 3rd to 6th Year
• Limited Warranty for Sealed Refrigeration System*; Parts Only: 7th to 12th Year
• Limited Warranty for Stainless Steel Rust-Through: Lifetime
• Limited Warranty for Sealed Refrigeration System*; Parts and Labor: 3rd to 6th Year
• Limited Warranty for Sealed Refrigeration System*; Parts Only: 7th to 12th Year
• Limited Warranty for Stainless Steel Rust-Through: Lifetime
UPC
UPC#
825225966081
