Features

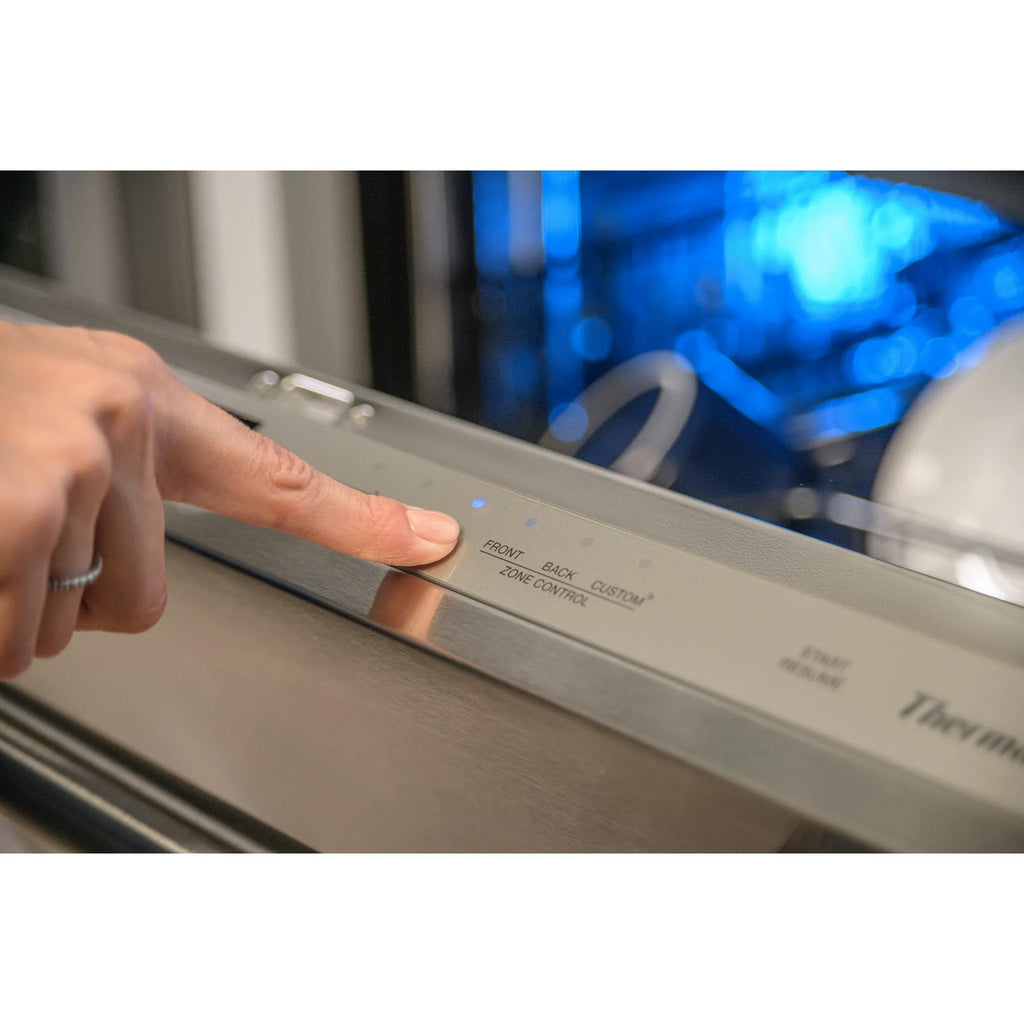

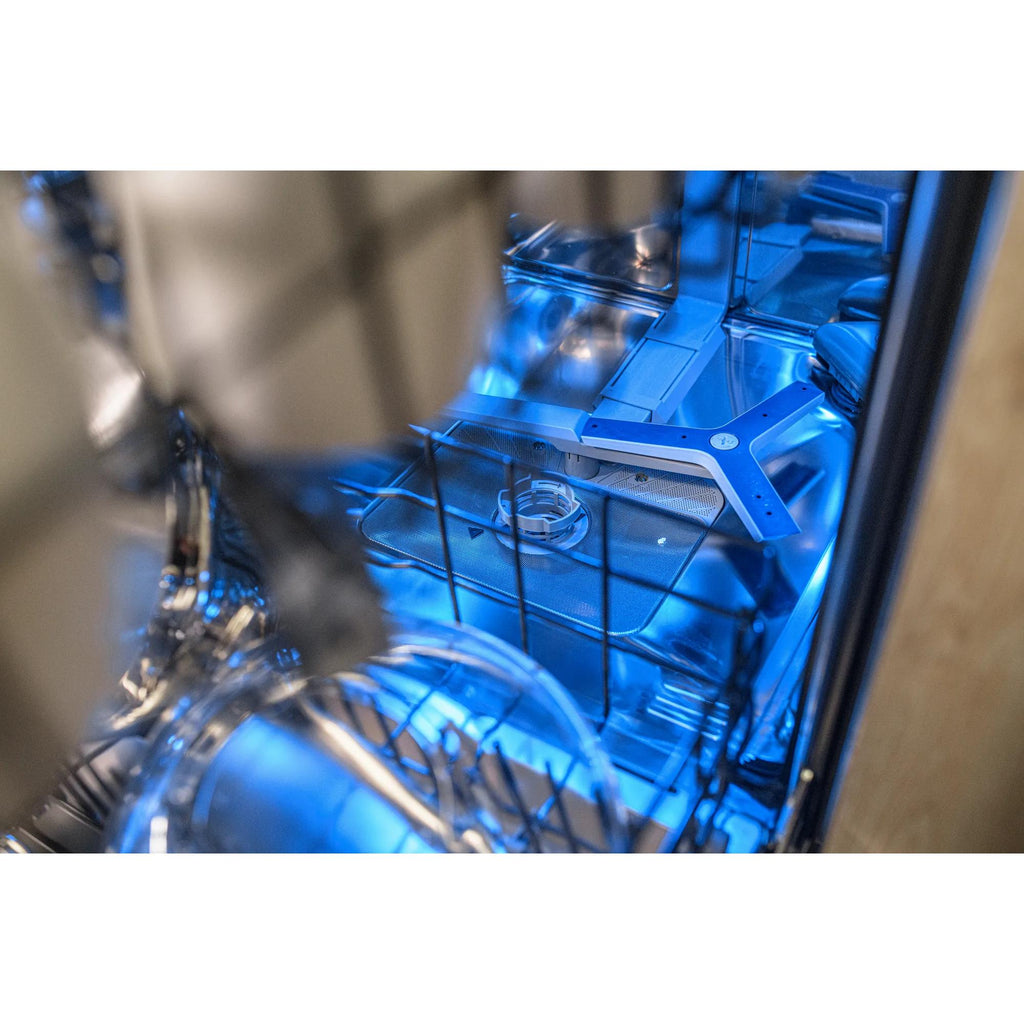

CUSTOMIZE YOUR CLEANING POWER WITH ZONE CONTROL™
Design the ideal clean with Zone Control™ where you can specify up to 4 customized lower rack cleaning zones, ensuring the most challenging pieces emerge immaculate and the most delicate are protected.
STARDRY™ WITH ZEOLITE
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.

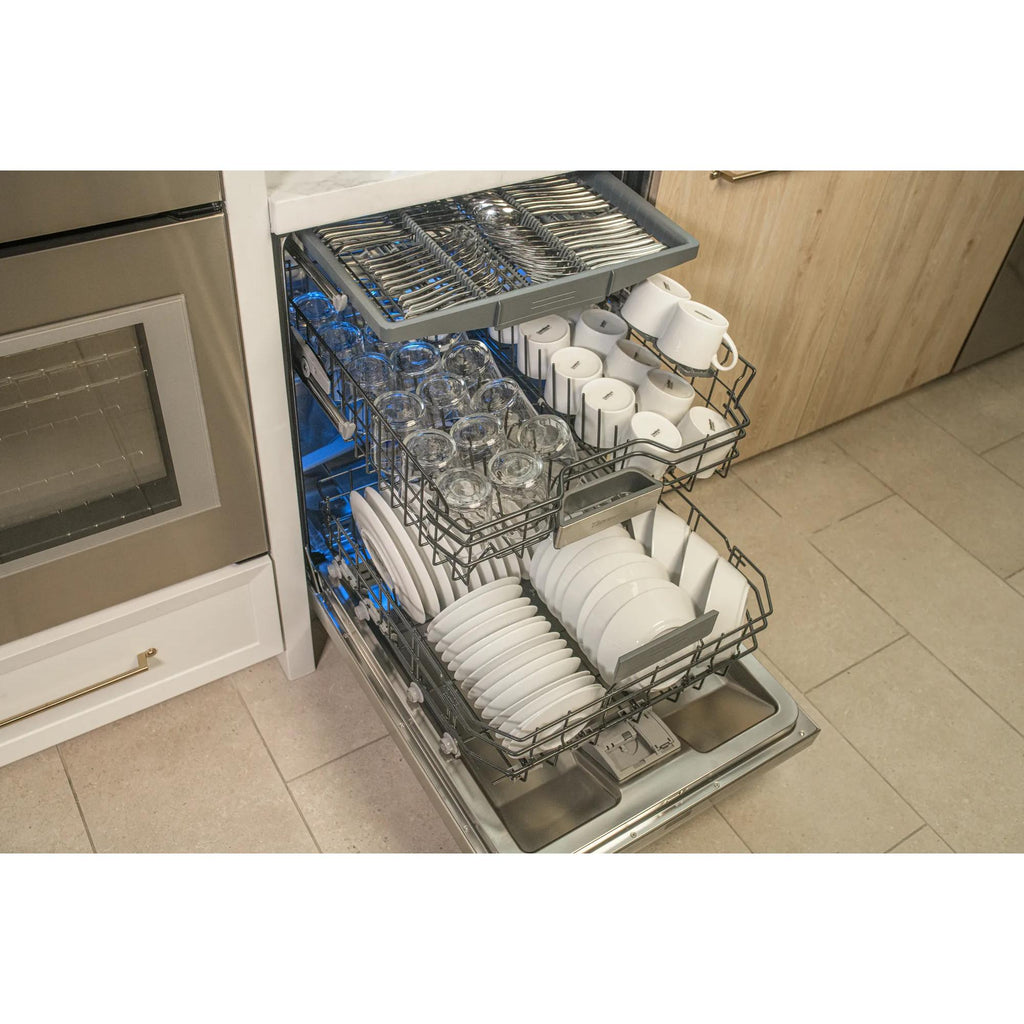

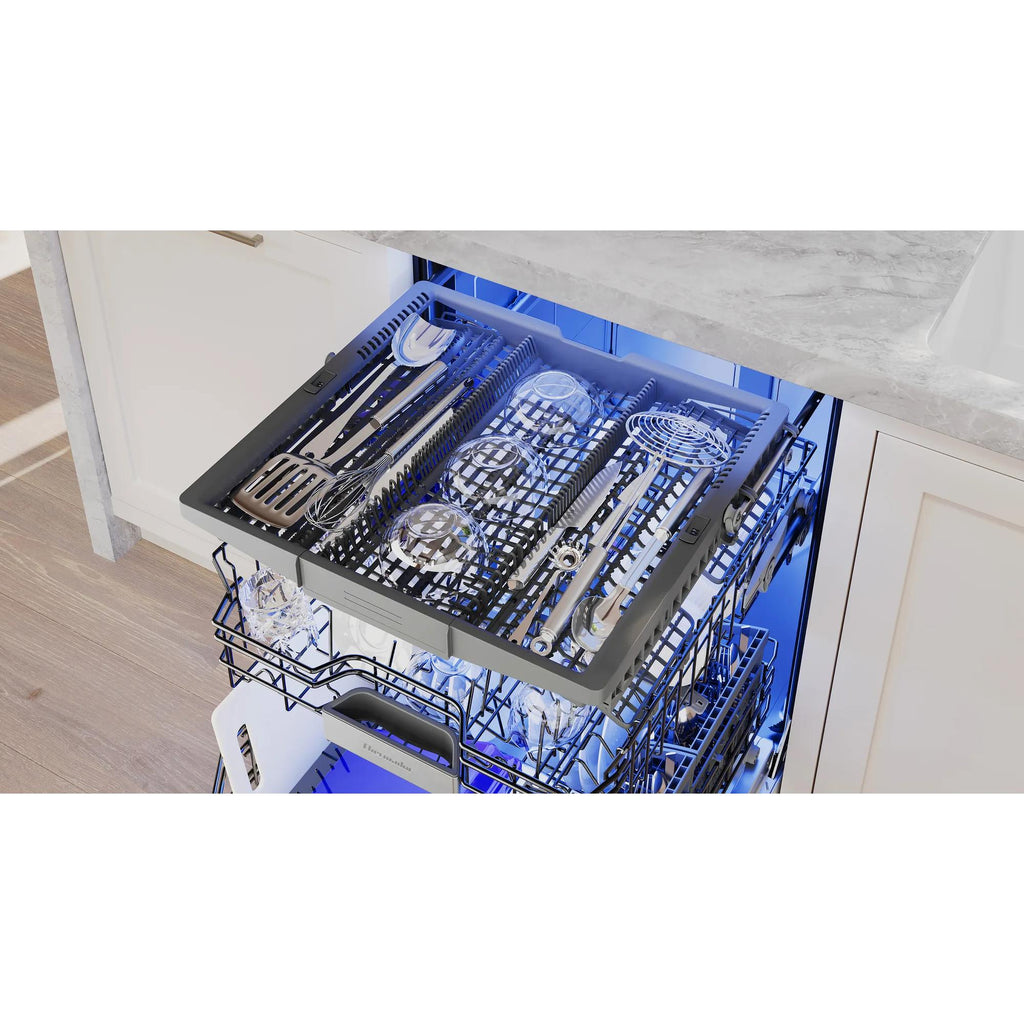

SPACIOUS ADJUSTABLE CHEF’S TOOL DRAWER
Adjustable Chef’s Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.

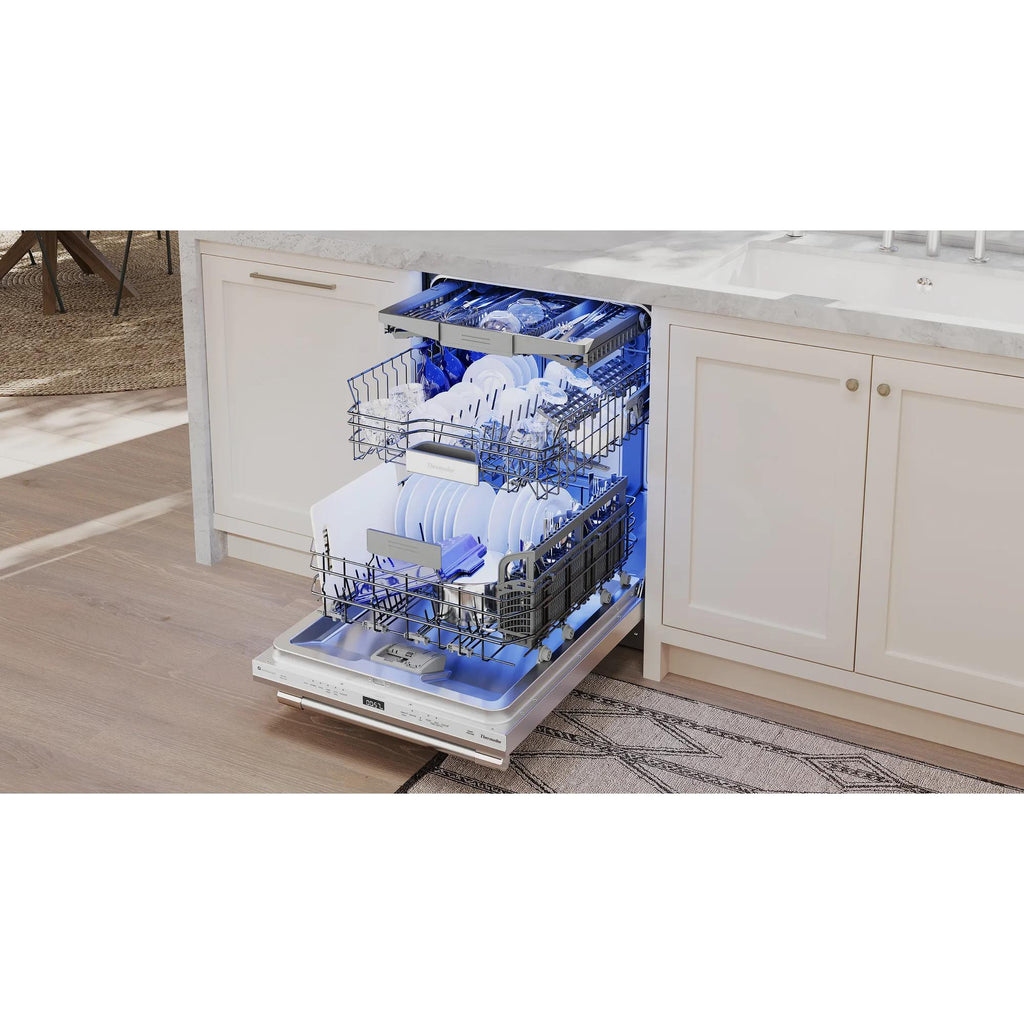

BLUE POWERBEAM® INDICATES WHEN APPLIANCE IS IN USE
Blue PowerBeam® shines a blue light on the floor when running.
Additional Features

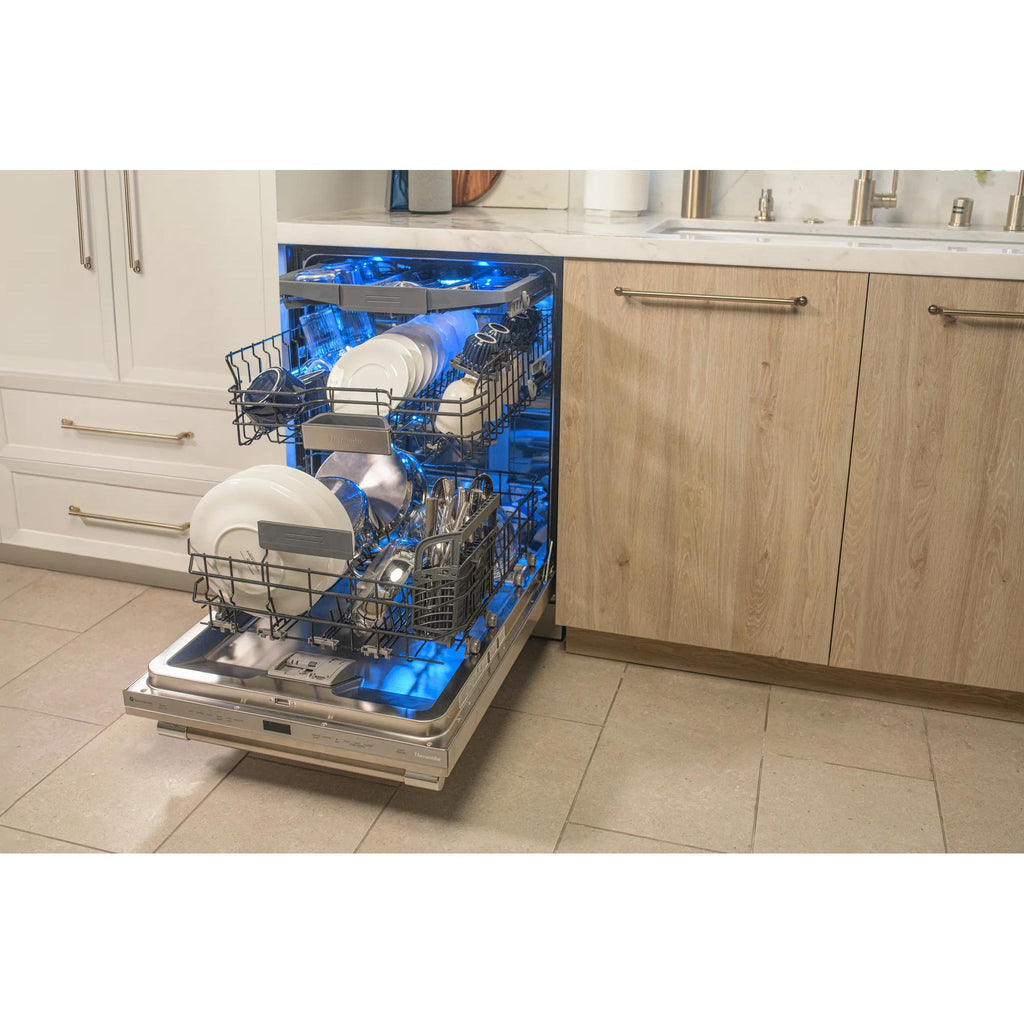

SAPPHIRE GLOW™ ILLUMINATES A BRILLIANT BLUE LIGHT
Sapphire Glow™ illuminates dishes and glassware with an internal brilliant blue light.

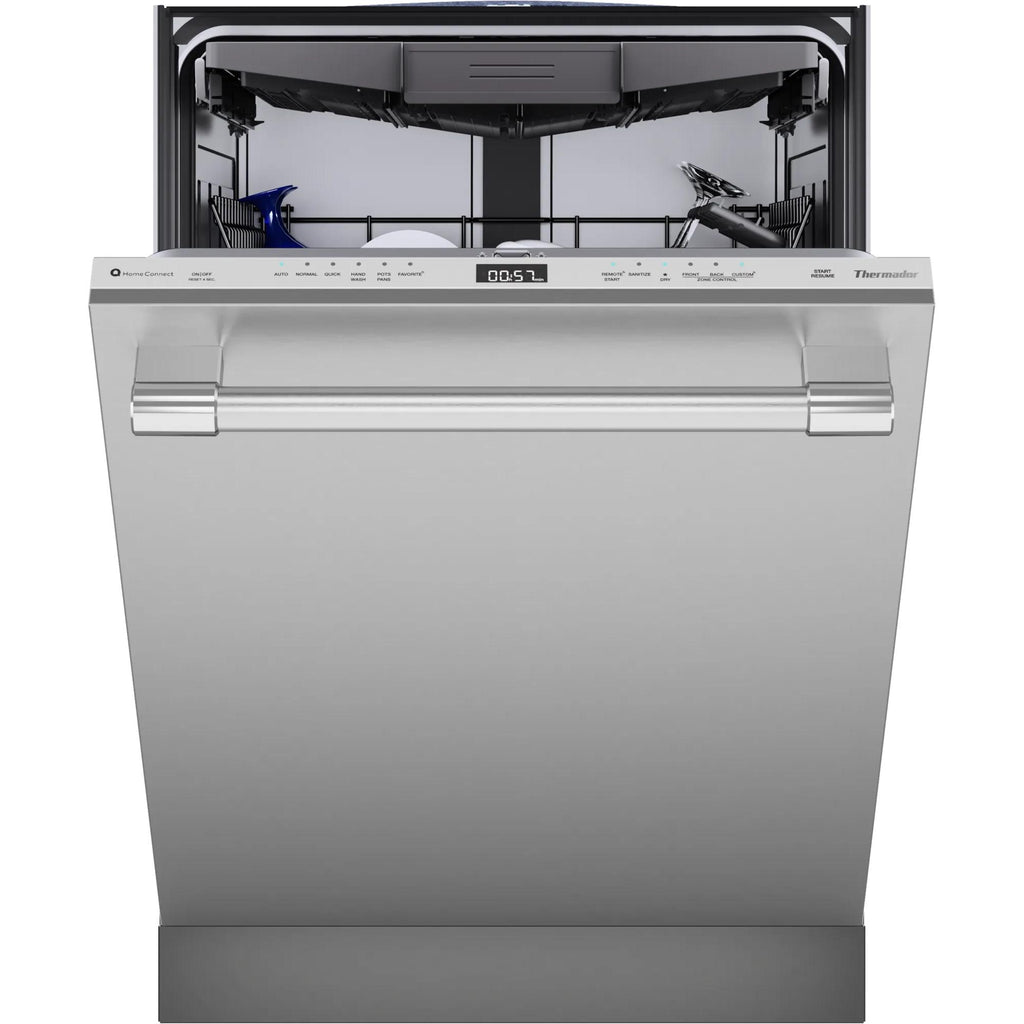

Specifications
General
Series Name
Sapphire® Professional
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
44 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• 6+3 Additional in Home Connect®
• Auto, Eco, Favorite, Glass, Pots & Pans, Quick
• Auto, Eco, Favorite, Glass, Pots & Pans, Quick
Options
6+1 Additional in Home Connect®
Features
Technologies
• Zone Control™ Spray Arm
• StarDry™
• Chef's Tool Drawer®
• Blue PowerBeam®
• Leak Protection System: 24/7 AquaStop®
• Sapphire Glow®

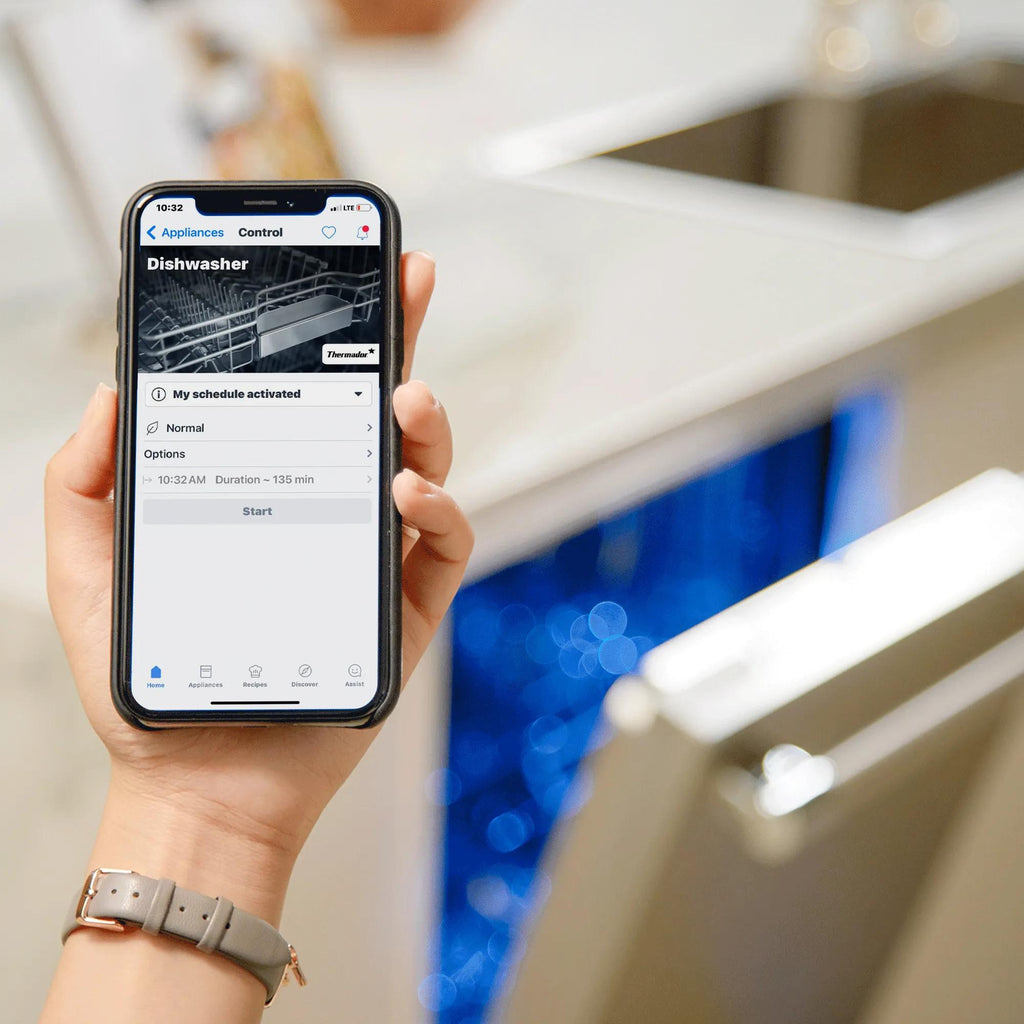

• Home Connect® (Wi-Fi Enabled)
• StarDry™
• Chef's Tool Drawer®
• Blue PowerBeam®
• Leak Protection System: 24/7 AquaStop®
• Sapphire Glow®
• Home Connect® (Wi-Fi Enabled)
3rd Rack System
Yes
Wi-Fi
Yes
Additional Information

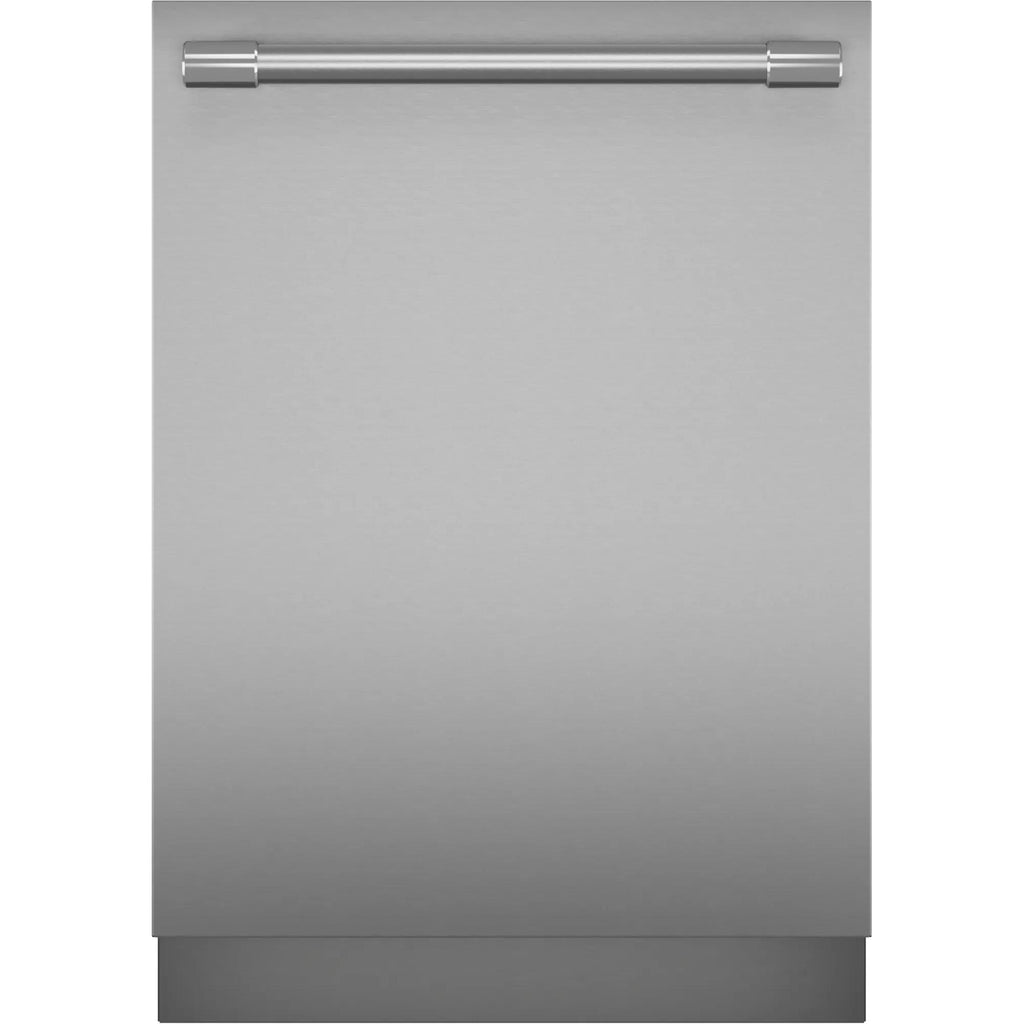

• Professional Handle

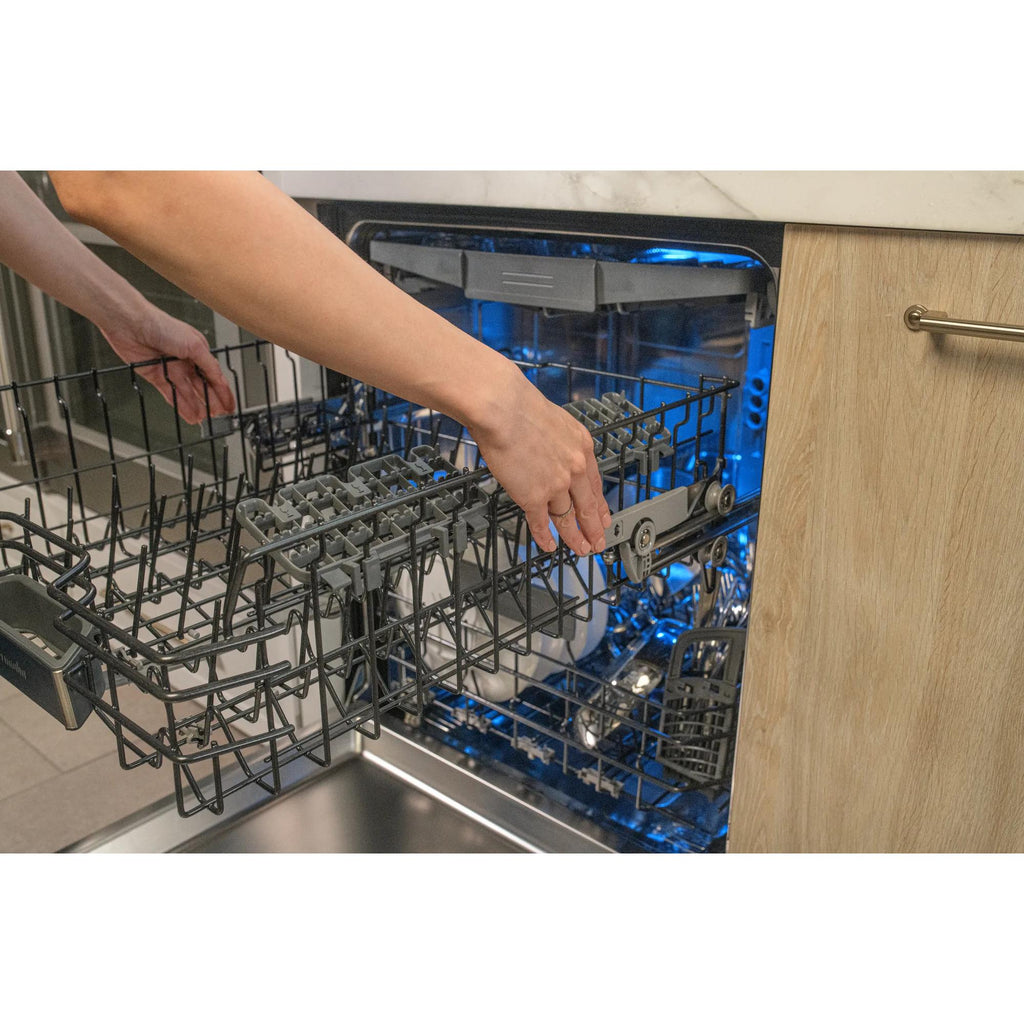

• Rack Adjustability: Rackmatic 3-Stage
• Concealed Water Heating Element
• Five-Level Wash
• Water Usage Per Cycle: 3.2 g
• Rack Adjustability: Rackmatic 3-Stage
• Concealed Water Heating Element
• Five-Level Wash
• Water Usage Per Cycle: 3.2 g
Electrical Information
Information
• 1,440 W
• 12 A
• 120 V
• 60 Hz
• 12 A
• 120 V
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Dishwasher Installation Kit (Junction Box, 90º Elbow and Water Supply Hose): SMZ3IN1UC
• Dishwasher Supply and Drainage Hose Extension 76 3/4": SGZ1010UC
• Junction Box: SMZPCJB1UC
• Cabinet Protector with Power Cord Clip: SMZEPCC1UC
• Water Supply Hose: SMZSH1ABUC
• Dishwasher Accessory Kit: SMZ5000
• Duo Silverware Basket: SMZ4000UC
• Fine Silverware Carafe: SMZ5002UC
• Dishwasher Supply and Drainage Hose Extension 76 3/4": SGZ1010UC
• Junction Box: SMZPCJB1UC
• Cabinet Protector with Power Cord Clip: SMZEPCC1UC
• Water Supply Hose: SMZSH1ABUC
• Dishwasher Accessory Kit: SMZ5000
• Duo Silverware Basket: SMZ4000UC
• Fine Silverware Carafe: SMZ5002UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
33.86 inch(es) / 86.0 cm
Depth (Without Handle)
23.7 inch(es) / 60.2 cm
Weight
102.01 lb(s) / 46.27 kg
Additional Dimensions
Required Cutout Size (HxWxD): 33 7/8" Min. x 24" Min. x 24"
Warranty
Warranty
• Limited Warranty, Entire Appliance, Parts and Labor: 2 Year
• Limited Warranty for Microprocessor or Printed Circuit Board; Parts Only: 3rd to 5th Year
• Limited Warranty for Racks (Does Not Include Rack Components); Parts Only: 3rd to 5th Year
• Limited Warranty for Rust-through On Inner Tub Liner; Parts Only: Lifetime
• Limited Warranty for Microprocessor or Printed Circuit Board; Parts Only: 3rd to 5th Year
• Limited Warranty for Racks (Does Not Include Rack Components); Parts Only: 3rd to 5th Year
• Limited Warranty for Rust-through On Inner Tub Liner; Parts Only: Lifetime
