Features
FLEXIBLE COOKTOP
Whether you're boiling water, melting chocolate or simmering sauce, there's an element for your needs.
INDICATOR LIGHT
Hot Surface indicator light lets you know the surface is hot.

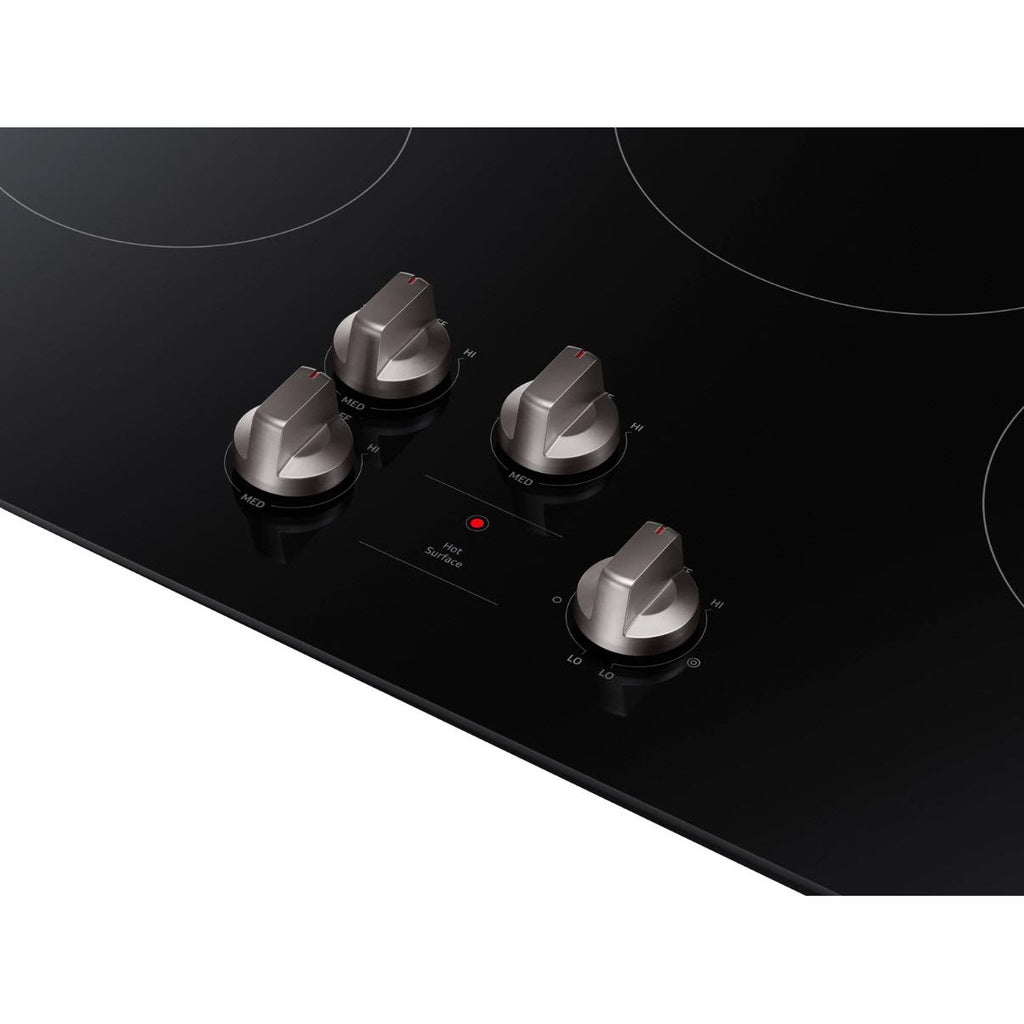

FRONT CONTROLS
Front controls are easy to reach.
EASY CLEANUP GLASS CERAMIC
Smooth Glass ceramic surface and dishwasher safe knobs make cleaning easy.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Right Front Element: 2,000 W
• Left Front Element: 1.500 W
• Left Rear Element (Simmer): 1.500 W
• Center Element: 2.500 W
• Left Front Element: 1.500 W
• Left Rear Element (Simmer): 1.500 W
• Center Element: 2.500 W
Burner/Element Size
• Right Front Element: 5"/8"
• Left Front Element: 7"
• Left Rear Element (Simmer): 7"
• Center Element: 9"
• Left Front Element: 7"
• Left Rear Element (Simmer): 7"
• Center Element: 9"
Elements
Smoothtop
Surface Features
Easy-to-Clean Glass Ceramic Cooktop
Features
Additional Information
• Hot Surface Indicator Light
• Dishwasher-Safe Knobs
• Dishwasher-Safe Knobs
Electrical Information
Information
• 240 V
• 60 Hz
• 40A
• 60 Hz
• 40A
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.12 inch(es) / 13.01 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
39.51 lb(s) / 17.92 kg
Additional Dimensions
Cooktop Cut-Out Dimensions: 28 1/2" x 5 1/8" x 19 9/16"
Shipping Dimensions
Width
34.18 inch(es) / 86.83 cm
Height
8.5 inch(es) / 21.59 cm
Depth
25.06 inch(es) / 63.65 cm
Weight
46.1 lb(s) / 20.91 kg
Warranty
Warranty
• One (1) Year All Parts and Labor
• Five (5) Years Parts Warranty for Glass Cooktop and Radiant Heater
• Five (5) Years Parts Warranty for Glass Cooktop and Radiant Heater
UPC
UPC#
887276299013
