Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Gas (Not Specified)
Type
Built-In

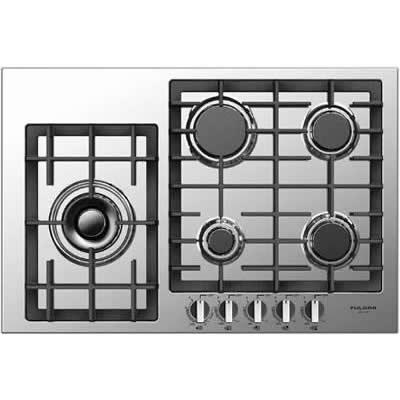

Cooktop
Burners/Elements
5
Power Output
Front Left Burner: Max. 18000 (BTU/h) - 5275W / Min. 450 (BTU/h) - 135W;Front Middle Burner: Max. 4000 (BTU/h) - 1175W / Min. 1000 (BTU/h) - 295W;Rear Middle Burner: Max. 12000 (BTU/h) - 3520W / Min. 2200 (BTU/h) - 645W;Rear Right Burner: Max. 9000 (BTU/h) - 2640W / Min. 1300 (BTU/h) - 380W;Front Right Burner: Max. 6300 (BTU/h) - 1850W / Min. 1300 (BTU/h) - 380W.
Burners
Open
Features
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Gas Type: NG or LP
• L.P. Conversion Kit
• Top Mount Injectors
• Electric Flame Ignition and Re-ignition
• Flame out sensing
• Heavy Duty Cast Iron Grates
• Dual Crown Burner
• Simmer Plate: Optional
• Small Pot Insert: Optional (for single burners only)
• Wok ring: Optional (for dual burner only)
• Knobs: Plastic MGH "U" - Frontal
• Heavy Duty Cast Iron Grates: 2
• Cable
• L.P. Conversion Kit
• Top Mount Injectors
• Electric Flame Ignition and Re-ignition
• Flame out sensing
• Heavy Duty Cast Iron Grates
• Dual Crown Burner
• Simmer Plate: Optional
• Small Pot Insert: Optional (for single burners only)
• Wok ring: Optional (for dual burner only)
• Knobs: Plastic MGH "U" - Frontal
• Heavy Duty Cast Iron Grates: 2
• Cable
Certifications and Approvals
Sabbath Mode
No
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76 cm
Height
2.91 inch(es) / 7.40 cm
Depth
20.08 inch(es) / 51.00 cm
Additional Dimensions
Cutout - width (min-max): 737mm - 740mm;Cutout - depth (min-max): 489,5mm - 492,5mm.
Warranty
Warranty
2 year warranty on all parts and labour.
