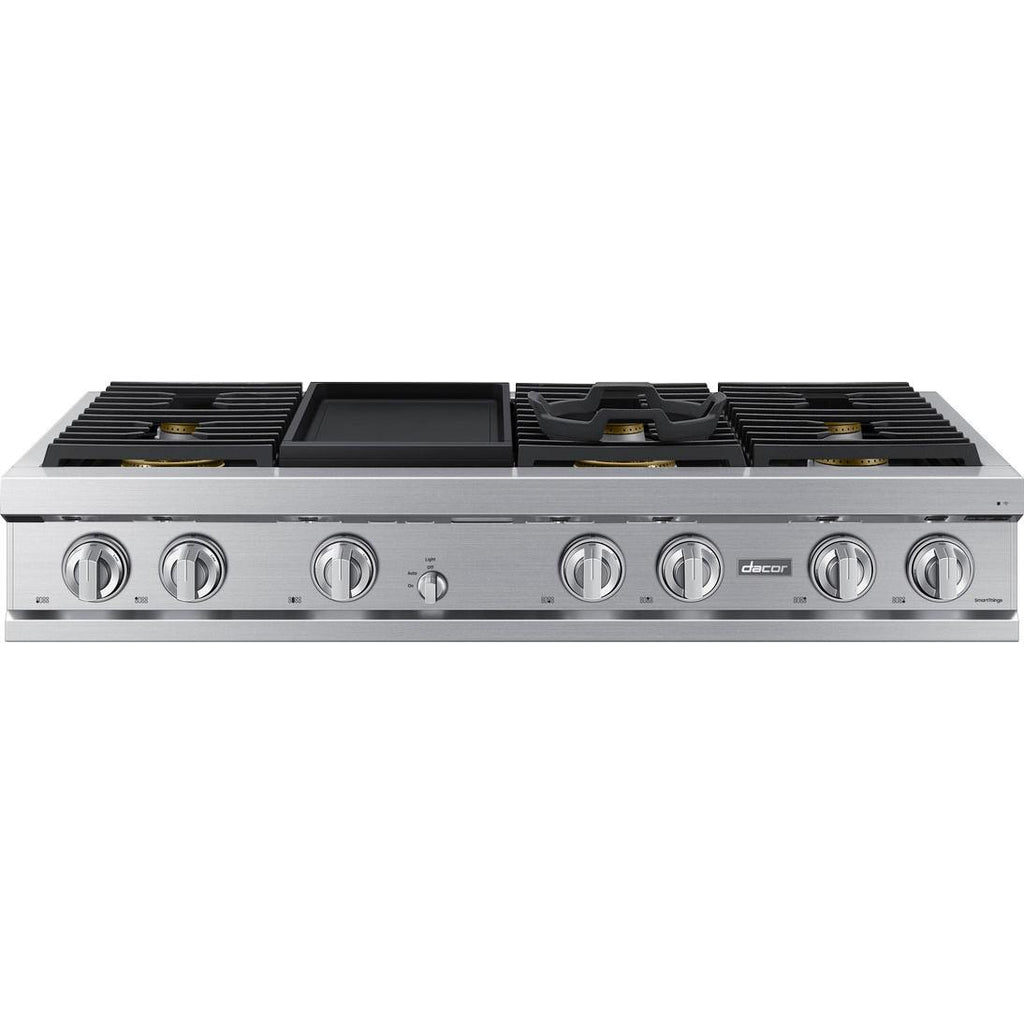

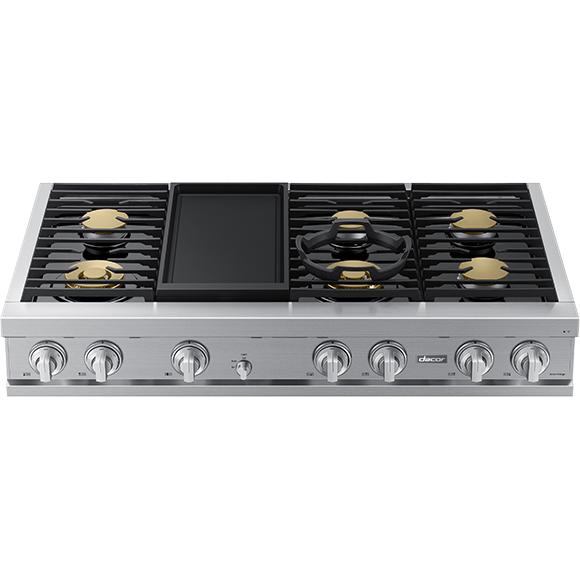

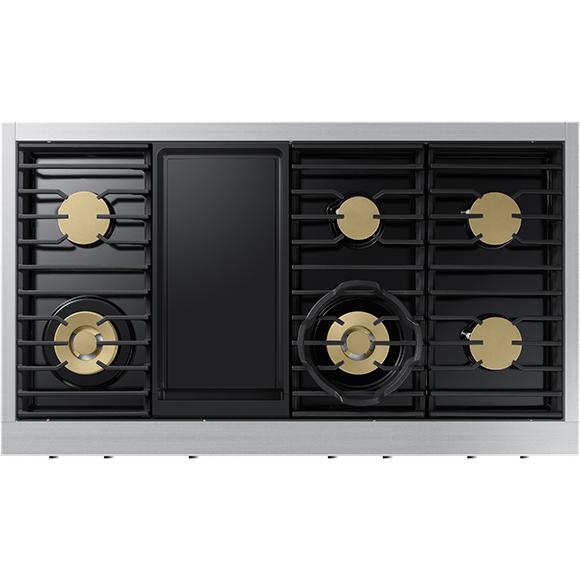

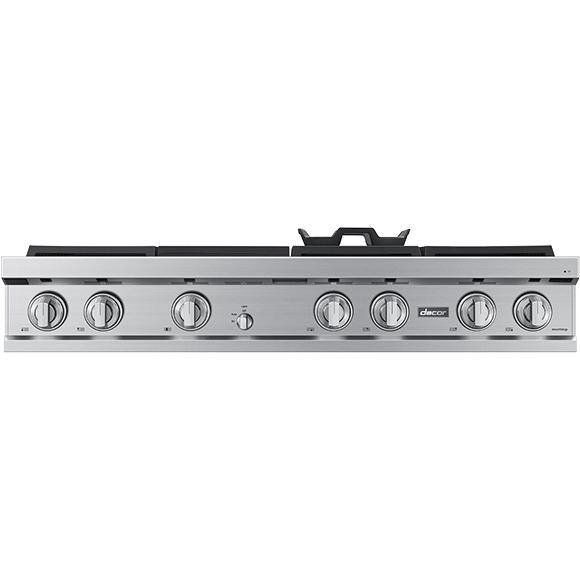

Dacor 48-inch Gas Rangetop with SmartThings Wi-Fi Connectivity DTT48T963GS/DA

DacorSKU: DTT48T963GS
Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite... Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite the imagination – turn up the heat on what’s possible. View more
Features Specifications Documents
Features

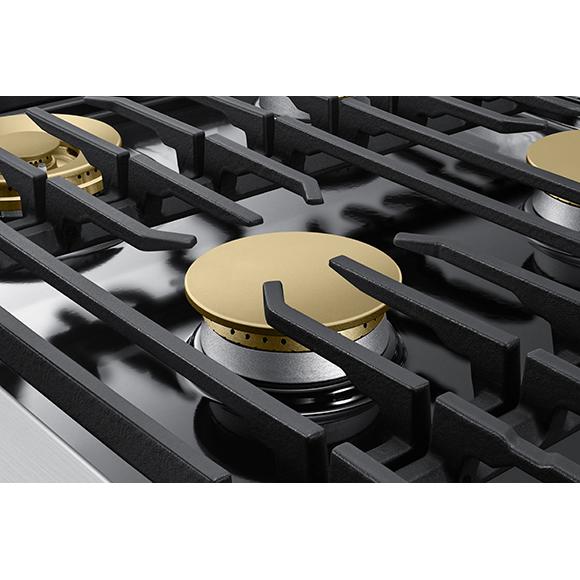

SIMMERSEAR™ BURNERS (22,000 BTU)
Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.
SIMMERSEAR™ BURNERS (22,000 BTU)

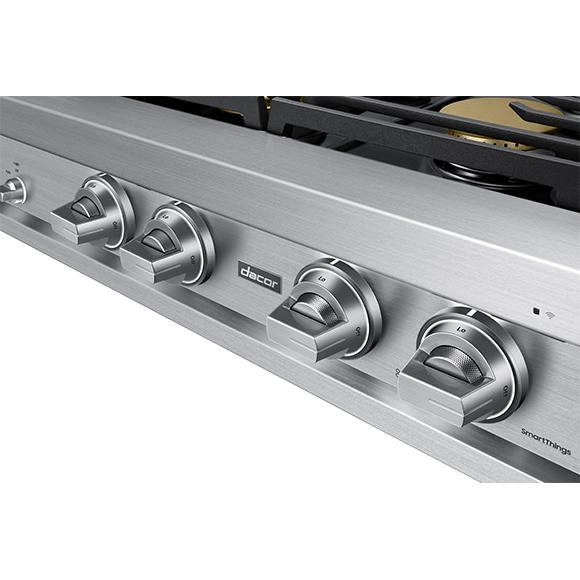

ILLUMINA™ KNOBS
Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.
ILLUMINA™ KNOBS
AUTO-CONNECTED HOOD
Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.
AUTO-CONNECTED HOOD
SMARTTHINGS INTEGRATION
The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.
SMARTTHINGS INTEGRATION
Specifications
General
Series Name
Transitional
Color
Silver
Manufacturer Color
Silver Stainless
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
6
Power Output
• Left Front Burner: 18,000 BTU
• Left Rear Burner: 16,000 BTU
• Center Front Burner: 22,000 BTU
• Center Rear Burner: 9,000 BTU
• Right Front Burner: 16,000 BTU
• Right Rear Burner: 16,000 BTU
Burners
Sealed
Other
Griddle
Surface Features
Griddle 1,400 W
Features
Technologies
• Simmersear™ brass burners
• Illumina Knobs™
• Auto Connect to compatible ventilation through Bluetooth
• SmartThings Wi-Fi connectivity
• Perma-Flame™ (Auto Re-Ignition)
Wi-Fi
Yes
Additional Information
Control Shower Lighting
Electrical Information
Information
120V, 60 Hz, 20A
Accessories
Included
• Grate (3)
• Burner caps (8)
• WOK Ring
• Griddle (1)
• LP Conversion Kit
Dimensions
Class Width
48" or More
Width
47.87 inch(es) / 121.6 cm
Height
8 inch(es) / 20.32 cm
Depth
27.87 inch(es) / 70.80 cm
Weight
66.01 lb(s) / 29.94 kg
Additional Dimensions
Cut-Out: 48" x 7 3/4" x 24"
Shipping Dimensions
Weight
92.99 lb(s) / 42.18 kg
Warranty
Warranty
2 Years Parts & Labor
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
