Features
FEATURES - HBN1
• SmartSense® technology provides automated ventilation to remove odors and pollutants.
• Voice activation via Wi-Fi connectivity for hands-free operation.
• Flush, built-in design fits seamlessly into almost any kitchen cabinet.
• Powerful 650 Max CFM blower operates at less than 1 sone at normal speed.
• 4-speed backlit soft-touch control.
• EZ Install bracket system enables easy single-person installation.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local codes or make-up air requirements.
• Bright, 3-level heat-resistant LED modules enhance your cooking experience.

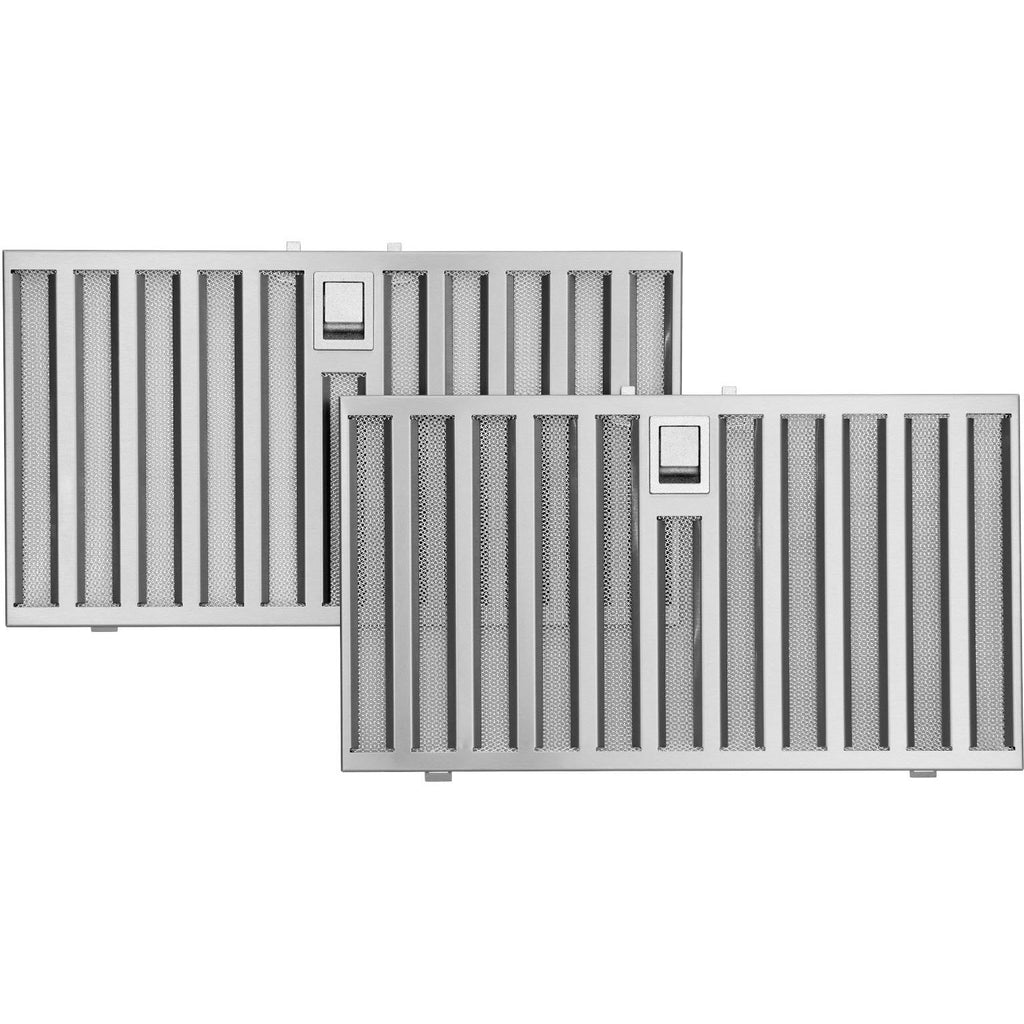

• Dishwasher-safe Hybrid Baffle™ filters with a quick-release latch for easy removal.
• Stainless steel liner extension fits 12" depth cabinets; extensions are available for cabinets up to 15” deep.
• Compatible with optional universal make-up air dampers (MD6TU, MD8TU, MD10TU) to replace air exhausted from the house only when the hood is turned on, helping with ventilation and reducing energy consumption.
• Optional non-ducted recirculation kit and filters are available for indoor exhaust recirculation.
• ADA compliance installation available with the HAWRK5 low-voltage wiring and wall switch kit, or via Wi-Fi-enabled voice assistance or smartphone app.
• Voice activation via Wi-Fi connectivity for hands-free operation.
• Flush, built-in design fits seamlessly into almost any kitchen cabinet.
• Powerful 650 Max CFM blower operates at less than 1 sone at normal speed.
• 4-speed backlit soft-touch control.
• EZ Install bracket system enables easy single-person installation.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local codes or make-up air requirements.
• Bright, 3-level heat-resistant LED modules enhance your cooking experience.
• Dishwasher-safe Hybrid Baffle™ filters with a quick-release latch for easy removal.
• Stainless steel liner extension fits 12" depth cabinets; extensions are available for cabinets up to 15” deep.
• Compatible with optional universal make-up air dampers (MD6TU, MD8TU, MD10TU) to replace air exhausted from the house only when the hood is turned on, helping with ventilation and reducing energy consumption.
• Optional non-ducted recirculation kit and filters are available for indoor exhaust recirculation.
• ADA compliance installation available with the HAWRK5 low-voltage wiring and wall switch kit, or via Wi-Fi-enabled voice assistance or smartphone app.
Specifications
General
Series Name
HBN1
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
Ducting Information
• Duct Size: 6", 8" or 3 1/4" x 10"
• Duct Direction Vertical (round or rectangular) or Horizontal (rectangular only
• Duct Direction Vertical (round or rectangular) or Horizontal (rectangular only
Speeds
4 Speeds
Additional Information
• Finish Brushed Stainless Steel (Grade 430)
• Lighting Type: LED Bulbs
• 2 Lights
• Lighting Levels: 3
• Lighting Bulbs Included
• Control Type: Electronic Soft Touch
• Delay-Off
• Filter Clean Reminder
• Filter Type: Hybrid Baffle
• Lighting Type: LED Bulbs
• 2 Lights
• Lighting Levels: 3
• Lighting Bulbs Included
• Control Type: Electronic Soft Touch
• Delay-Off
• Filter Clean Reminder
• Filter Type: Hybrid Baffle
Electrical Information
Information
• Amps @ 120V: 4.0
• Electrical Connection: Direct Wire
• Electrical Connection: Direct Wire
Accessories
Included
Backdraft Damper
Optional
• ADA Kit: HAWRK5
• Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS)
• Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS)
• Universal MUA Damper: MD6TU, MD8TU or MD10TU
• Power Cord Kit: HCK44
• Non-Duct Kit:
• HARKBN24 (for HBN1246SS)
• HARKBN30 (for HBN1306SS)
• HARKBN36 (for HBN1366SS)
• Charcoal Filters S99010464-124 (for HBN1246SS)
• S99010464-130 (for HBN1306SS)
• S99010464-136 (for HBN1366SS
• Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS)
• Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS)
• Universal MUA Damper: MD6TU, MD8TU or MD10TU
• Power Cord Kit: HCK44
• Non-Duct Kit:
• HARKBN24 (for HBN1246SS)
• HARKBN30 (for HBN1306SS)
• HARKBN36 (for HBN1366SS)
• Charcoal Filters S99010464-124 (for HBN1246SS)
• S99010464-130 (for HBN1306SS)
• S99010464-136 (for HBN1366SS

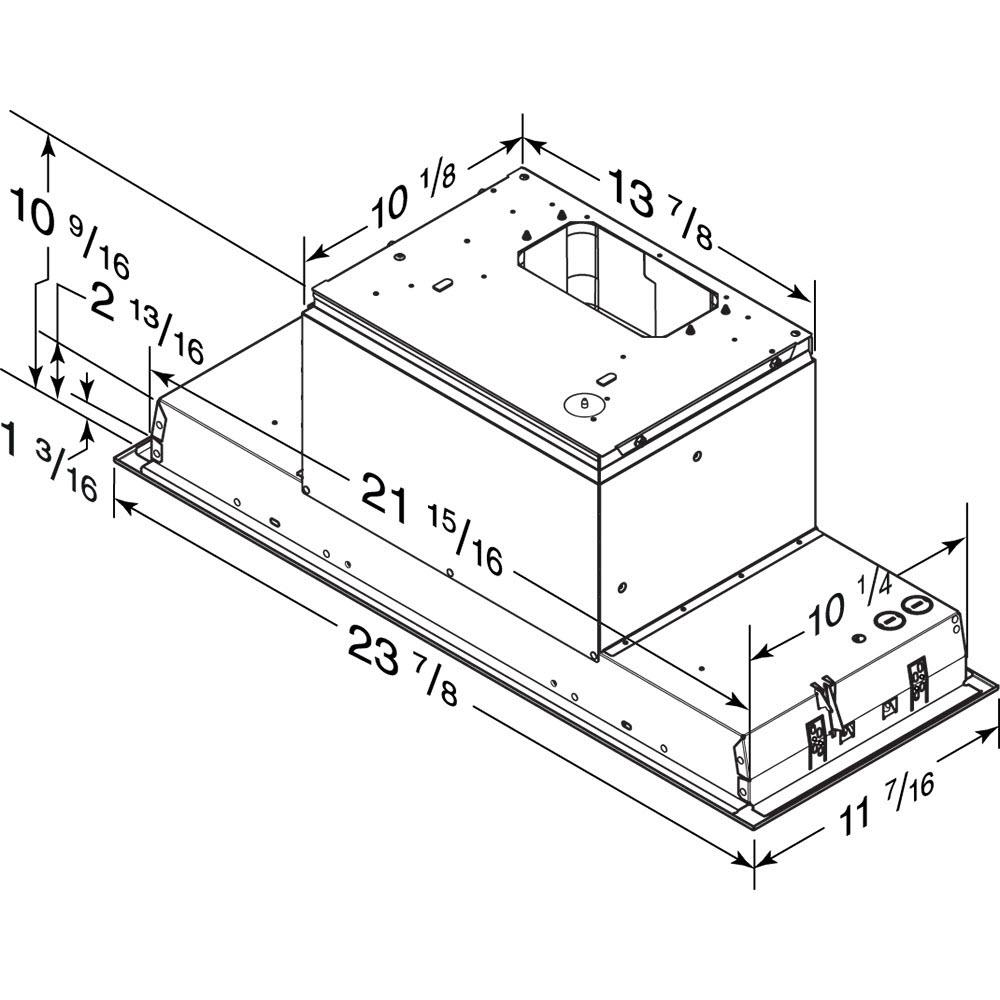

Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
10.56 inch(es) / 26.83 cm
Depth
11.44 inch(es) / 29.05 cm
Warranty
Warranty
5 Years Parts / 2 Years Labor
