Features
8STEEL™
ASKO’s dishwashers are made of steel; no other dishwashers have so many details in steel instead of plastic. The container is held securely in the outer frame by four stainless bolts. This is a unique, durable solution that you will only find in an ASKO. No other material lasts as long as steel.
This is why ASKO's dishwashers are manufactured with eight of the most important components made of high-quality steel rather than plastic, such as containers, loading racks, spray pipes, spray arms, strainers, outer bases, feet, and heating elements.
BALL BEARING GUIDE RAILS
Stainless steel will not wear out. It will provide years of trouble free and smooth operation.

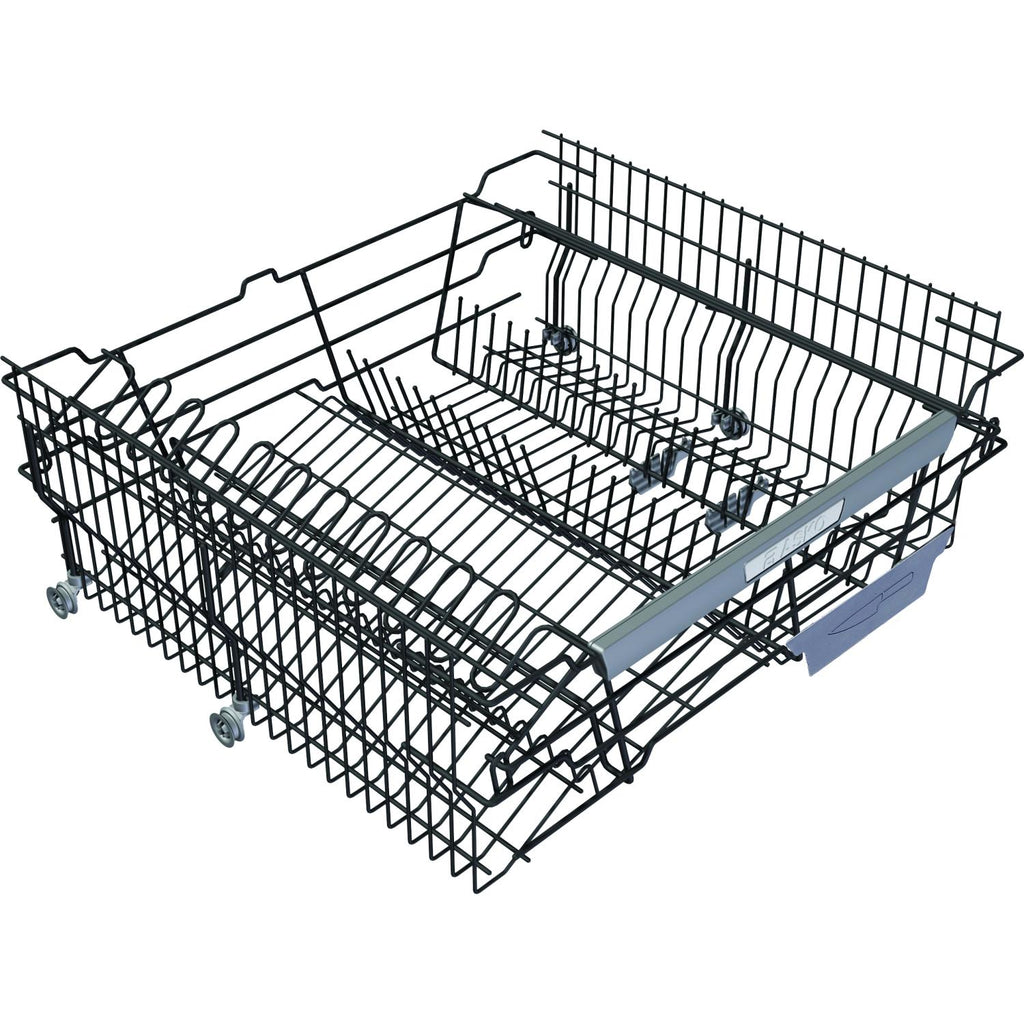

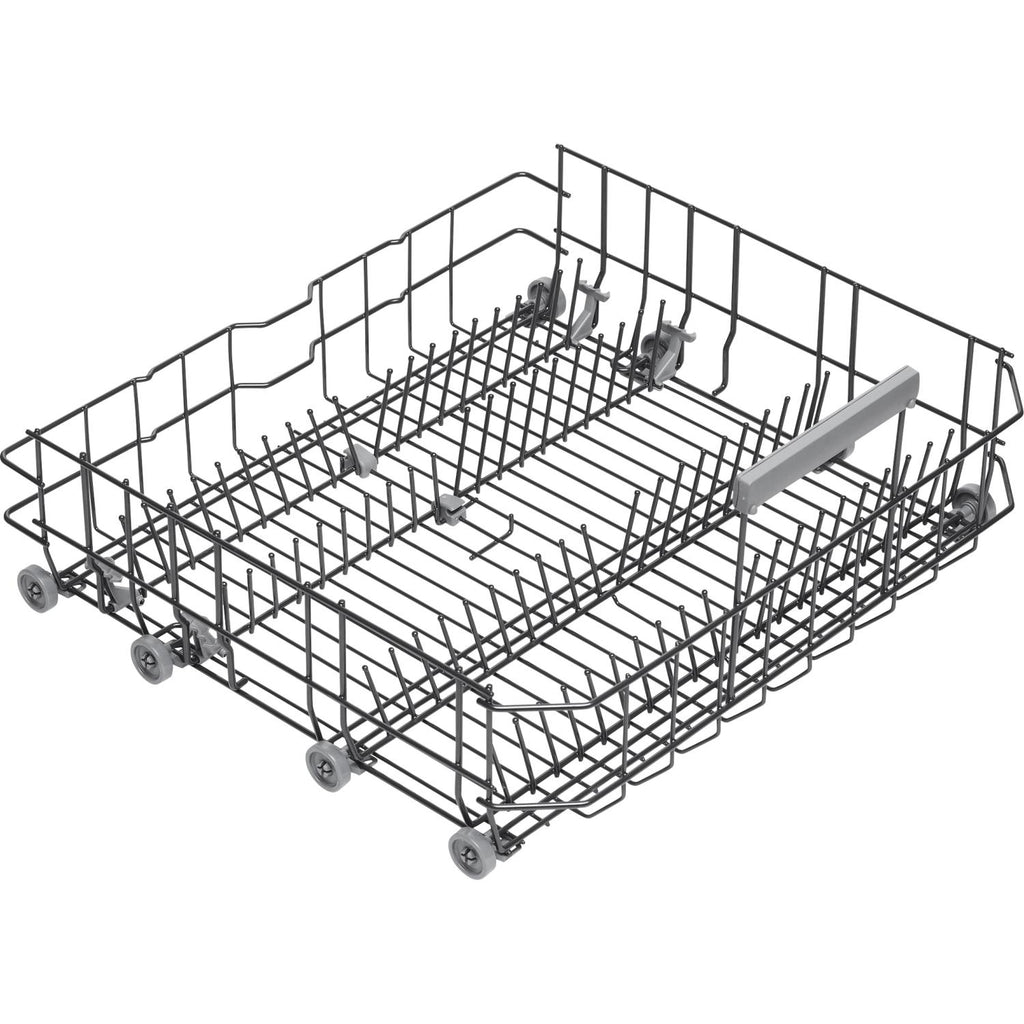

BASKETS
Not only will the baskets last longer, your china will too. High quality steel construction and adjustable configurations makes sure they are robust and secure. ASKO’s baskets are one of the most stable on the market.
DOOR
A stainless steel inner door will not corrode, wear out, or discolor with time.
FILTER
Stainless steel filters will provide years of service, screening out the smallest particles to get your dishes cleaner.
LEGS
A sturdy dishwasher lasts longer and keeps quieter. That’s why we use steel legs rather than plastic ones, which can break off when installing the machine. Steel legs are more stable than plastic and reduce vibration, protecting sensitive dishes.
SEAM WELDED TANK
A dishwasher’s environment is about as aggressive as it gets. High-quality non-magnetic stainless steel allows us to weld the steel outer casing, rather than folding and gluing. This construction considerably reduces the risk of leaks while increasing the life span.
SPRAY ARMS
Stainless steel spray arms last for the long run. ASKO’s dishwashers are fitted with stainless steel spray arms built using 18.9 steel. The consistent performance of this material combined with a slower wash rotation results in cleaner dish-ware and a longer useful life.
SPRAY PIPES
To extend the life span, increase performance, and to reduce the risk of leakage, we use high quality stainless steel spray pipes. Many competing brands choose simpler solutions with plastic spray pipes – and sometimes these pipes are even placed on the outside, increasing the risk of leakage. Stainless steel spray pipes always outlive plastic ones.
Specifications
General
Series Name
40
Type
Built-In
Color

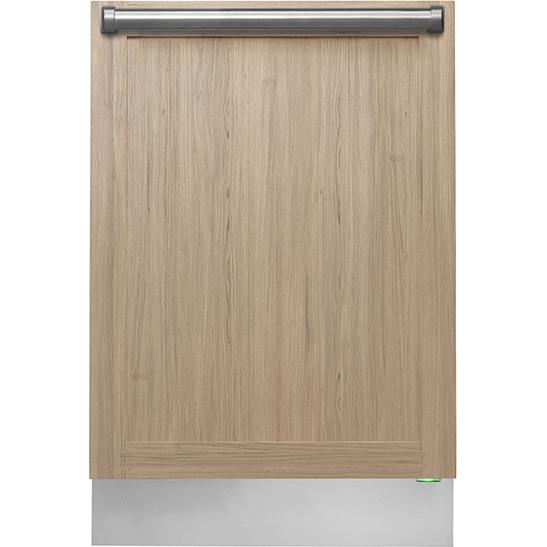

Panel Ready
Manufacturer Color
Panel Ready
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
11
Wash Cycles
• Normal Wash
• Eco Wash
• Sanitation Wash
• Time Program
• Plastic Wash
• Hygiene Wash
• Crystal Glass
• Lower Half Wash
• Upper Half Wash
• Self-Cleaning
• Rinse and Hold
• Eco Wash
• Sanitation Wash
• Time Program
• Plastic Wash
• Hygiene Wash
• Crystal Glass
• Lower Half Wash
• Upper Half Wash
• Self-Cleaning
• Rinse and Hold
Options
• Extra Dry
• Variable start delay up to 24 hours
• All in 1 tablet function
• Normal mode
• Green mode
• Speed mode
• Night mode
• Intensive mode
• Variable start delay up to 24 hours
• All in 1 tablet function
• Normal mode
• Green mode
• Speed mode
• Night mode
• Intensive mode
Features
Technologies
• 8 Steel™ Construction
• 9Spray™ wash system
• Turbo Drying™ system

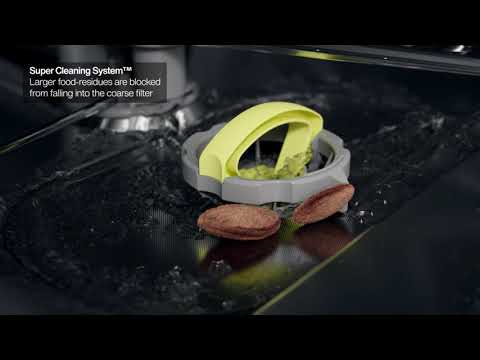

• SCS+ - Super Cleaning System+™
• Wide Spray™ - extra washing power for pots and pans
• Jet Spray™ - extra dishwashing power for tall objects
• Power Zone Cutlery™
• Aqua Safe™
• Kid Safe™
• Top tray with Instant Lift™
• 9Spray™ wash system
• Turbo Drying™ system
• SCS+ - Super Cleaning System+™
• Wide Spray™ - extra washing power for pots and pans
• Jet Spray™ - extra dishwashing power for tall objects
• Power Zone Cutlery™
• Aqua Safe™
• Kid Safe™
• Top tray with Instant Lift™
Delay Start Information
1-24 Hours
Delay Start
Yes
Control Lock
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Hidden heater
• Water Softener
• Number of spray arms: 3
• Number of spray zones: 9
• Basket levels: 3

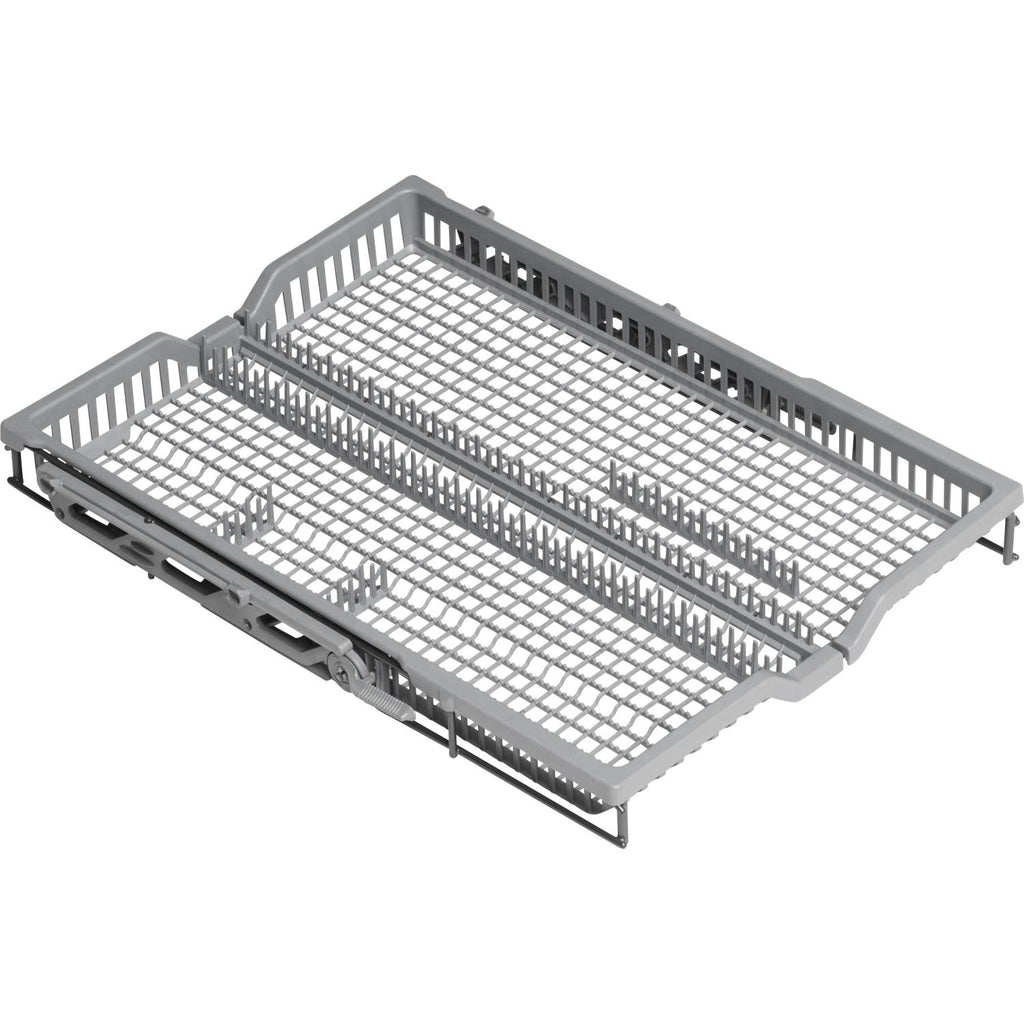

• Top tray for bowls and cutlery
• Guide rails with ball bearings for upper basket
• Tight mesh base in the baskets

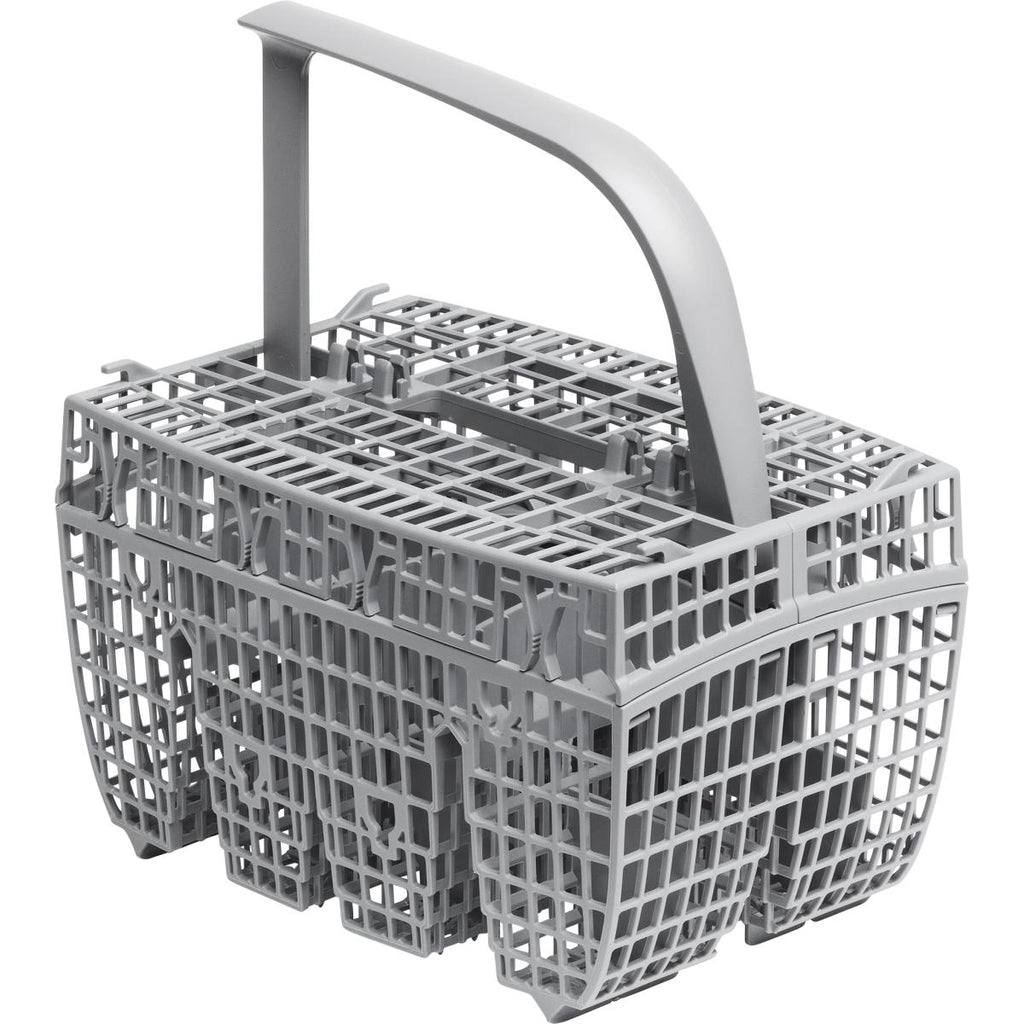

• Separate removable cutlery basket
• LCD display
• Rinse-aid indication: Notification in display
• Stand-by water protection
• Exterior float - detects water leakage on the base
• Anti block drain pump
• Water Softener
• Number of spray arms: 3
• Number of spray zones: 9
• Basket levels: 3
• Top tray for bowls and cutlery
• Guide rails with ball bearings for upper basket
• Tight mesh base in the baskets
• Separate removable cutlery basket
• LCD display
• Rinse-aid indication: Notification in display
• Stand-by water protection
• Exterior float - detects water leakage on the base
• Anti block drain pump
Electrical Information
Information
• 235 kWh
• 115 V
• 60 Hz
• 15 A
• 115 V
• 60 Hz
• 15 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
Accepts custom panel and handle
Dimensions
Class Width
24"
Width
23.62 inch(es) / 60.0 cm
Height (Min.)
32.76 inch(es) / 83.2 cm
Depth (Without Handle)
22.01 inch(es) / 55.9 cm
Weight
114.99 lb(s) / 52.16 kg
Shipping Dimensions
Width
25.2 inch(es) / 64.0 cm
Height
35.04 inch(es) / 89.0 cm
Depth
26.77 inch(es) / 68.0 cm
Warranty
Warranty
2 Years Limited Warranty on Parts and Labor
UPC
UPC#
3838782061561
