Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In

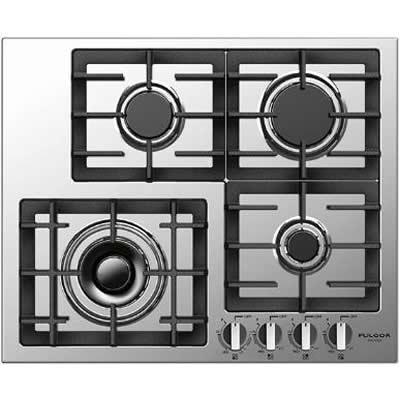

Cooktop
Burners/Elements
4
Power Output
Front Left Burner: Max. 18000 (BTU/h) - 5275W / Min. 450 (BTU/h) - 135W;
Rear Left Burner: Max. 6300 (BTU/h) - 1850W / Min. 1300 (BTU/h) - 380W;
Rear Right Burner: Max. 12000 (BTU/h) - 3520W / Min. 2200 (BTU/h) - 645W;
Front Right Burner: Max. 4000 (BTU/h) - 1175W / Min. 1000 (BTU/h) - 295W;
Burners
Open
Features
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
Gas Type: NG or LP(natural gas or Liquid propane);
L.P. Conversion Kit;
Top Mount Injectors;
Electric Flame Ignition and Re-ignition;
Flame out sensing;
Dual Crown Burner;
Knobs: Plastic MGH "U" - Frontal;
Simmer Plate: Optional;
Small Pot Insert: Optional (for single burners only);
Wok Ring: Not available;
Heavy Duty Cast Iron Grates: 4;
Cable.
Electrical Information
Information
Electrical rating: 120V, 60Hz;
Max Power (BTU/HR): 40300 (BTU/h) - 11800W.
Certifications and Approvals
Sabbath Mode
No
Dimensions
Class Width
24"
Width
24.41 inch(es) / 62.0 cm
Height
2.91 inch(es) / 7.4 cm
Depth
20.08 inch(es) / 51.00 cm
Additional Dimensions
Cutout - width (min-max): 597mm-600mm;
Cutout - height:
Cutout - depth (min-max): 489,5mm - 492,5mm.
Warranty
Warranty
2 year warranty on all parts and labour.
